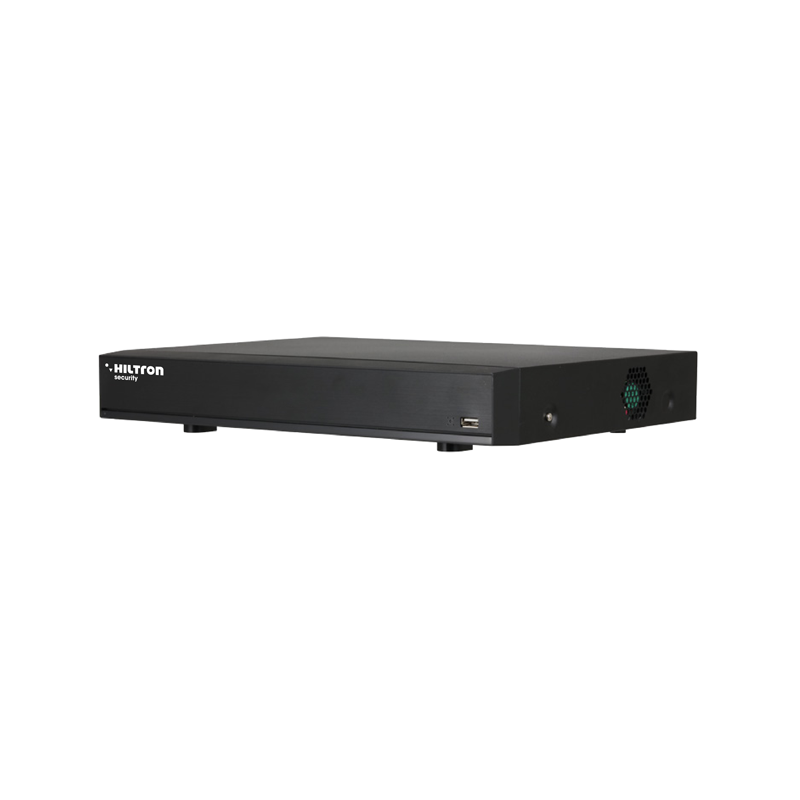

32-Channel 4K HDCVI/IP AI XVR with Face Recognition, Perimeter Protection and SMD Plus

The THV4KL4HDS is an advanced 32-channel AI XVR designed to provide high-quality video surveillance with support for up to 4K and built-in artificial intelligence to improve safety and operational efficiency. This device supports various video formats (HDCVI, CVBS, TVI, AHD, and IP), making it versatile for different types of surveillance systems. It is ready to install a SATA hard disk up to 10TB (not included), ideal for managing large volumes of video data.

Main features:

• Total 32 Channels : Support 4 channels HDCVI/CVBS/TVI/AHD up to 4K, or 4+4 channels IP up to 8MP.
• Advanced AI Coding : Uses H.265+ compression algorithm, ensuring high efficiency in video streaming and storage.
• Facial Recognition : Built-in facial recognition capability, ideal for improving security and real-time identification.
• Perimeter Protection : Up to 2 dedicated analog channels for perimeter protection, increasing the effectiveness of surveillance at the edges of the property.
• SMD Plus (Smart Motion Detection) : Supports up to 4 channels of intelligent motion detection, reducing false alarms.
• AI Metadata : Store and analyze data from cameras to improve search and investigation efficiency.
• Mounting and storage capacity : Compact 1U, ready for a SATA disk up to 10TB, allowing you to store large amounts of recordings.
• Multiple Interfaces : Includes 2 video outputs (1 VGA and 1 HDMI), bidirectional audio input and output, 2 USB 2.0 ports, and an RS485 port for remote control.

Technical specifications:

• Video Compression : H.265+/H.265 dual-stream to optimize storage and bandwidth.
• Video Inputs : Support HDCVI/AHD/TVI/CVBS/IP with maximum 4 IP inputs, each channel up to 8MP.
• Maximum bandwidth : 128 Mbps inbound.
• AI Features : AI search, facial recognition and perimeter protection on analog channels.
• IoT and POS Support : For better integration with IoT devices and point of sale systems.

Diet:

• Nominal voltage : 12Vdc, consumption less than 7W (without hard disk).

The THV4KL4HDS is ideal for professional video surveillance installations that require artificial intelligence for monitoring and advanced video analytics. With support for 4K, facial recognition and perimeter protection functions, it offers a complete and highly scalable system to ensure security in residential, commercial or industrial environments.
