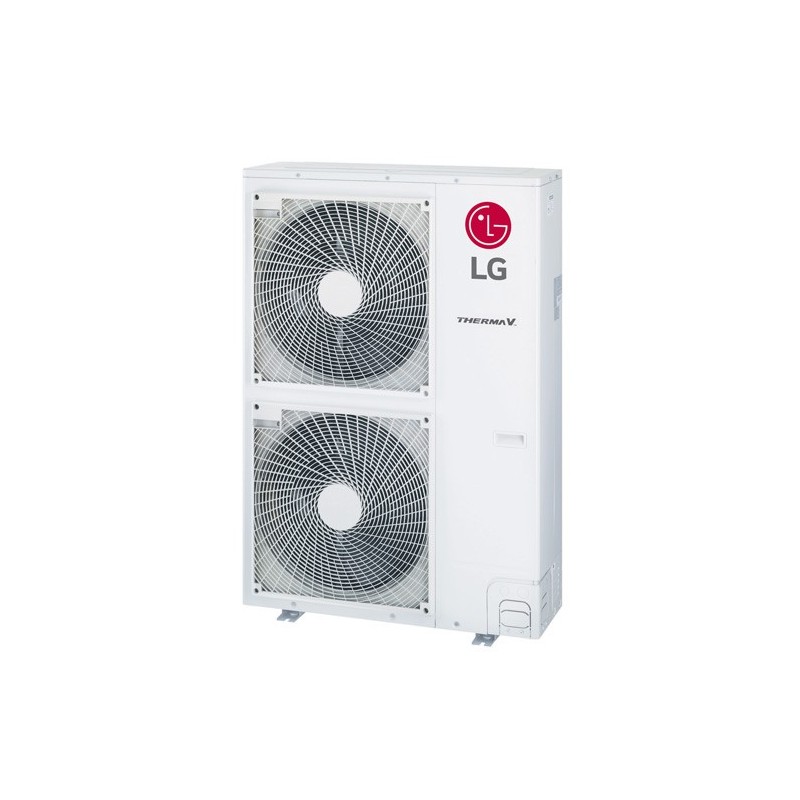

External unit with split heat pump for Therma V system, R-410A. 14.00 kW. Power supply: 380 – 415 V, three-phase, 50 Hz.

LG ELECTRONICS - LGEHU143MA.U33 THERMA V SPLIT EXTERNAL THREE-PHASE R410A 14kW

The LG ELECTRONICS THERMA V split air-to-water heat pump represents an innovative, high-performance solution for heating and cooling residential and commercial environments. Designed for energy efficiency and comfort, this three-phase outdoor unit is equipped with advanced technology and technical specifications that make it a reliable and versatile choice.

Main features:

• Heating thermal power : 14 kW (Ta +7°C, Tw 35°C, EN 14511).
• Heating efficiency (COP) : 4.41 (Ta +7°C, Tw 35°C, EN 14511).
• Cooling thermal power : 8.5-12 kW (Ta 35°C, Tw 7/18°C, EN 14511).
• Energy efficiency class : A++ for space and water heating (811/2013/EU).
• Refrigerant : R-410A (content 2.1 kg).
• Compressor Modulation : Wide range 10-100% for precise control.

Advanced Features:

• Suitable for supplementary central heating : yes.
• Suitable for active cooling : Yes, with integrated cooling.
• Room temperature regulation : integrated, with remote control included.
• Connectivity : Support for data transfer via the Internet, ideal for remote management.
• Integrated softstarter : reduces the current peak at start-up, protecting the system.

Technical specifications:

• Power supply : 400 V AC three-phase.
• External unit dimensions :
  • Width: 950 mm
  • Height: 1380 mm
  • Depth: 330 mm
• Outdoor unit weight : 84.8 kg.
• Noise level : 64 dB(A) (according to EN 12102).
• Degree of protection : IP65, ideal for outdoor installations.

Unsupported applications:

• Domestic hot water and pool heating.

Why choose LG THERMA V?

• Maximum energy efficiency to reduce consumption.
• Compact and durable design for versatile installation.
• Intuitive remote control and easy integration into existing systems.

This heat pump is the perfect choice for those looking for a reliable, sustainable and technologically advanced air conditioning system.
