Internal unit split heat pump R-410A Therma V, Power supply: 380 – 415 V, three-phase, 50 Hz.

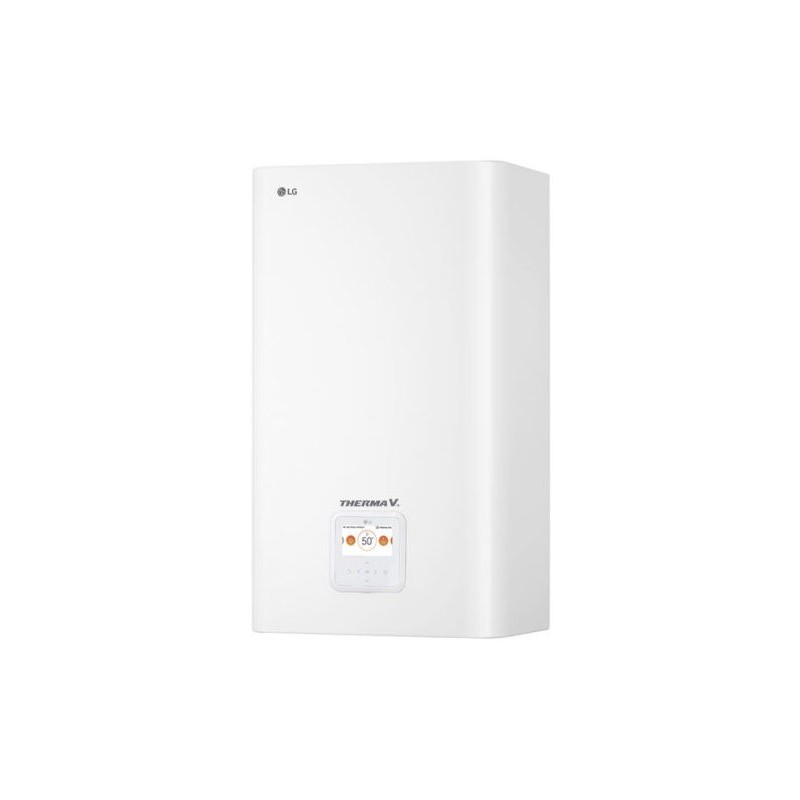

LG ELECTRONICS HN1636M - Indoor Unit for Heat Pump Therma V Split Three Phase R-410A

The LG ELECTRONICS HN1636M indoor unit is the ideal complement to the Therma V Split air conditioning system, designed to ensure high performance and efficient management of heating and cooling of spaces. With a compact design and cutting-edge technology, it offers versatility and reliability for residential and commercial applications.

Main features:

• Compatibility : Ideal for centralized systems and for integration with additional heating.
• Active Cooling : Yes, with built-in cooling for complete temperature control.
• Suitable for domestic hot water : Yes, for greater versatility.
• Maximum flow temperature : 80°C, perfect for environments that require intense heating.
• Maximum pipe length : 50 m, for flexible installations.

Energy efficiency and functionality:

• Modulating compressor : Wide modulation (10-100%) for optimised consumption.
• Pump speed regulation : Integrated, for dynamic management.
• Remote Control : Remote management capability and support for data transfer via the Internet.
• Nominal domestic hot water pressure : 3 bar, with a volumetric flow rate of up to 7 l/s.

Technical specifications:

• Refrigerant type : R-410A (content: 2.1 kg).
• Indoor unit dimensions :
  • Width: 850 mm
  • Height: 490 mm
  • Depth: 315 mm
• Weight : 40 kg.
• Noise level : 44 dB(A), silent even during operation.
• Power supply : 380–415 V three-phase, 50 Hz.
• Gas pipe diameter : 3/8 inch.

Unsupported applications:

• Pool heating.

Product Benefits:

• High energy efficiency to reduce consumption.
• Compact and robust design for easy and versatile installation.
• Advanced temperature control for constant comfort.

Choose the LG HN1636M indoor unit to complete your Therma V system and achieve exceptional performance in every season.
