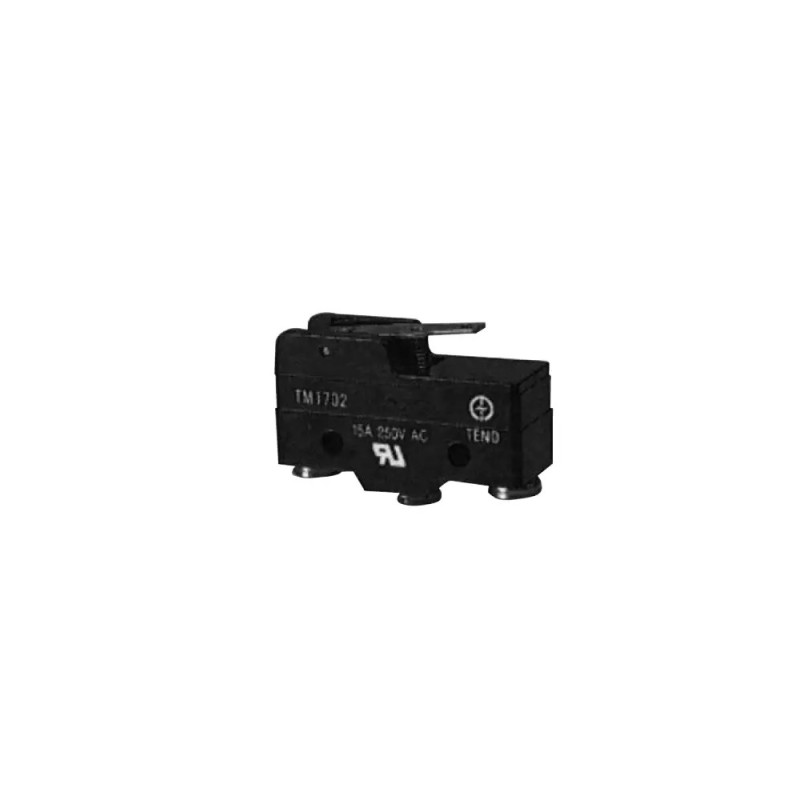

Screw microswitch

The Asita 1702 screw microswitch is a mechanical switching device designed for industrial and automation applications. It is part of the Asita TM Series , known for its reliability and compliance with EN 60947-5-1 standards.

Main features:

• Product Code: TM1702
• Contact Type: SPDT (Single Pole Double Throw)
• Terminal Type: Available with screw or fast-on terminals
• Case Material: Plastic
• Rated current: 15A at 125/250V AC
• Contact resistance: 30 mΩ (initial maximum)
• Insulation resistance: 100MΩ minimum at 500V DC
• Mechanical life: Up to 10.000.000 operations
• Electrical life: Up to 10,000 operations
• Operating temperature: -40°C to +125°C
• Degree of protection: IP30

This microswitch is ideal for applications requiring high reliability and long operating life.
