Auxiliary contact block contact for ac 6a, 250v 1no 1nc

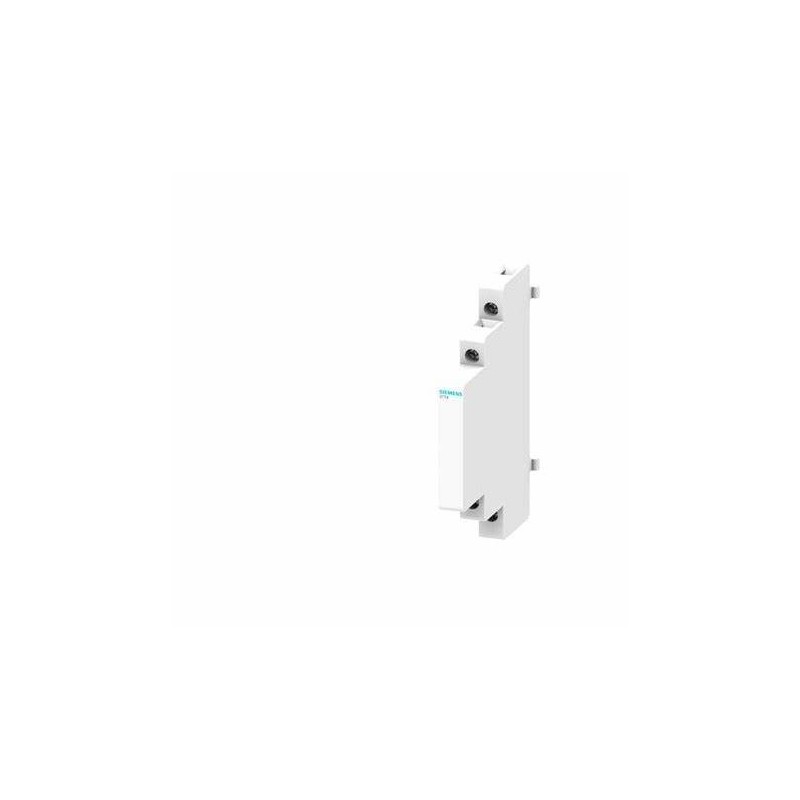

The Siemens 5TT4930 is an auxiliary switch of the SENTRON 5TT4 series, designed for applications in civil and industrial systems. This device allows the remote control of electrical circuits, offering a compact and efficient solution for the management of electrical loads.

Technical features

• Product Code : 5TT4930

• Type : Auxiliary switch with 1NO + 1NC contacts

• Rated current : 6A AC

• Rated voltage : 250 V AC

• Minimum switching voltage : 10 V AC

• Minimum switching current : 100 mA AC

• Minimum pulse duration : 50 ms

• Galvanic isolation : Yes, between coil and contacts

• Mounting : DIN rail (horizontal or vertical)

• Dimensions : 90mm (height) x 9mm (width) x 73mm (depth)

• Net weight : 0.047 kg

• Protection class : IP20

• Operating temperature : -25°C to +70°C
