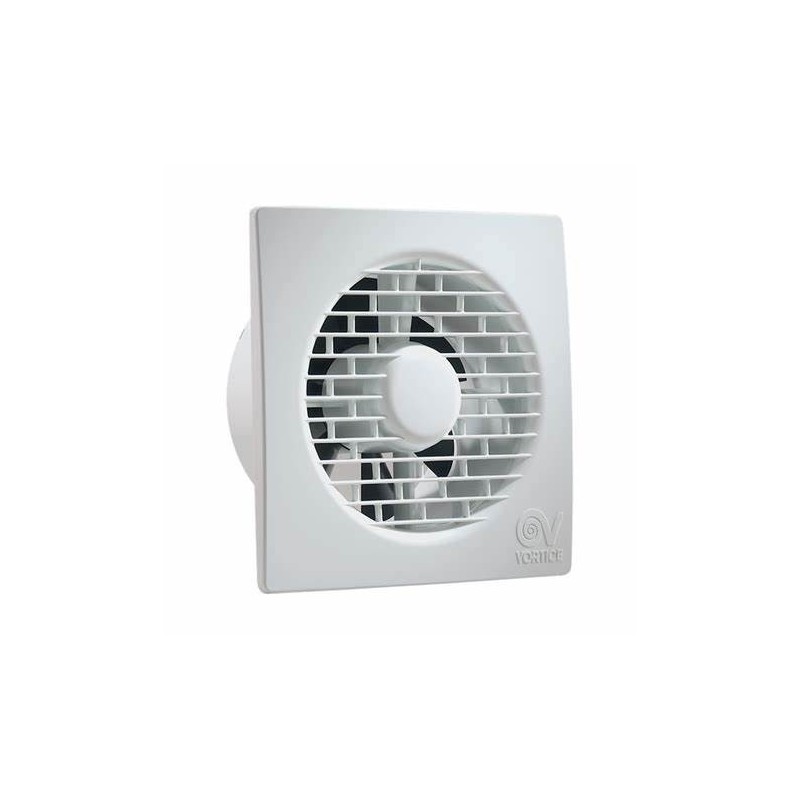

90 diameter helical wall mounted extractor fan, wire point mf 90/3.5"

The code 0000011122 corresponds to the Vortice MF 90/3.5" product, a wall-mounted helical extractor fan from the Punto Filo series. It is designed for the ventilation of small and medium-sized domestic or commercial environments, offering a compact and discreet design.

Main technical features

• Product code : 0000011122

• EAN : 8010300111223

• Rated voltage : 220–240 V

• Frequency : 50 Hz

• Max power consumption : 14 W

• Max absorbed current : 0.08 A

• Maximum flow rate : 65 m³/h (18 l/s)

• Sound pressure at 3 m : 28.8 dB(A)

• Revolutions per minute : 2,500 rpm

• Duct diameter : 90 mm

• Exhaust diameter : 92.5 mm

• Degree of protection : IPX4

• Insulation class : II

• Max operating ambient temperature : 50 °C

• Material : Anti-UV plastic resin

• Weight : 0.5 kg

• Mounting : Wall or pipe mounted

• Check valve : Included

• Speed Control : Compatible with Vortice regulators
