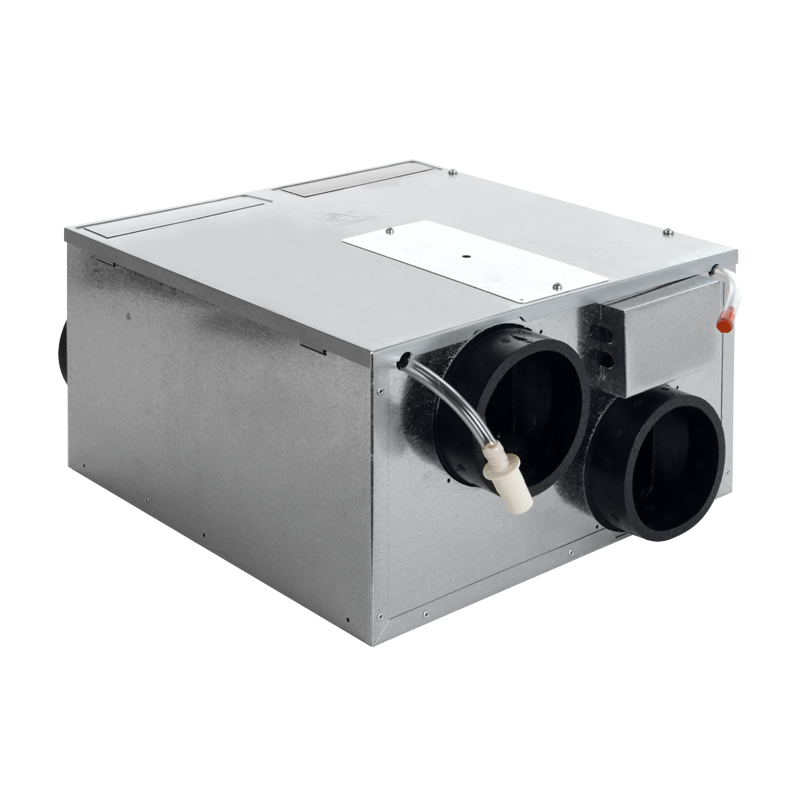

Vortice HRi Mini EP - Controlled Mechanical Ventilation System (CMV)

The Vortice HRi Mini EP is a compact, high-performance controlled mechanical ventilation (CMV) system, designed to ensure air exchange in indoor environments with optimal energy efficiency. Ideal for installations in small spaces such as apartments, offices or commercial premises, it is equipped with advanced features for air control and quality.

Main Features :

• Durable Structure :

  • Casing in galvanized steel sheet, guarantees strength and durability over time.
  • Interior lined with fire-resistant sound-absorbing material for quiet and safe operation.

• Versatile Connections :

  • Mouths compatible with 100 mm and 125 mm pipes, for greater flexibility during installation.

• EC Brushless Motors :

  • 2 external rotor motors with ball bearings, guarantee efficiency, reliability and low energy consumption.
  • Backward curved centrifugal impellers for optimal airflow management.
  • Adjustable speeds during installation and malfunction monitoring via integrated microcontroller.

• High Efficiency Heat Recovery Unit :

  • Countercurrent flow system in plastic material (PS), maximizes heat recovery while reducing energy losses.

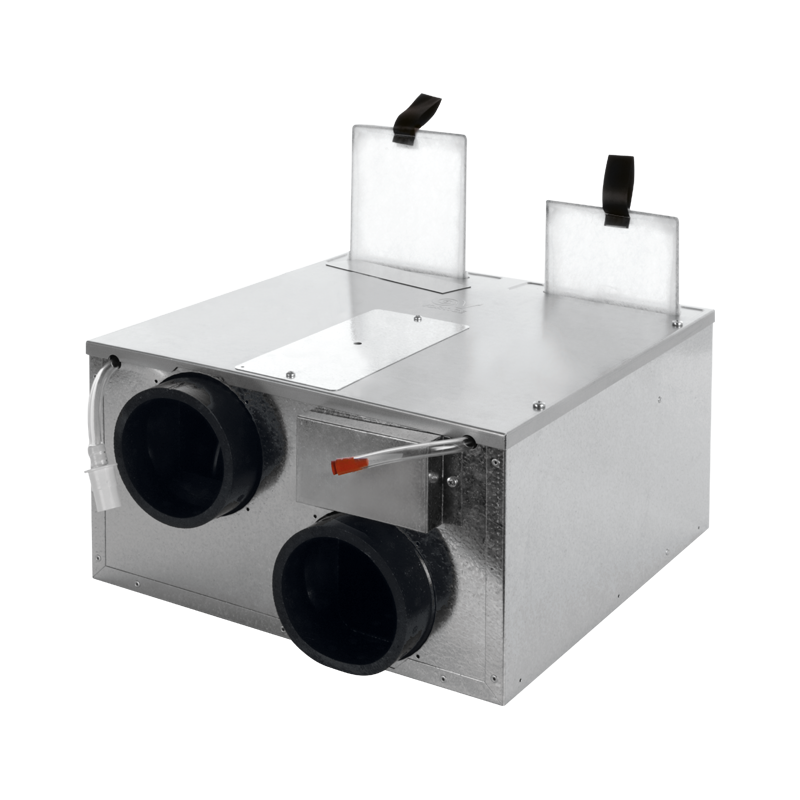

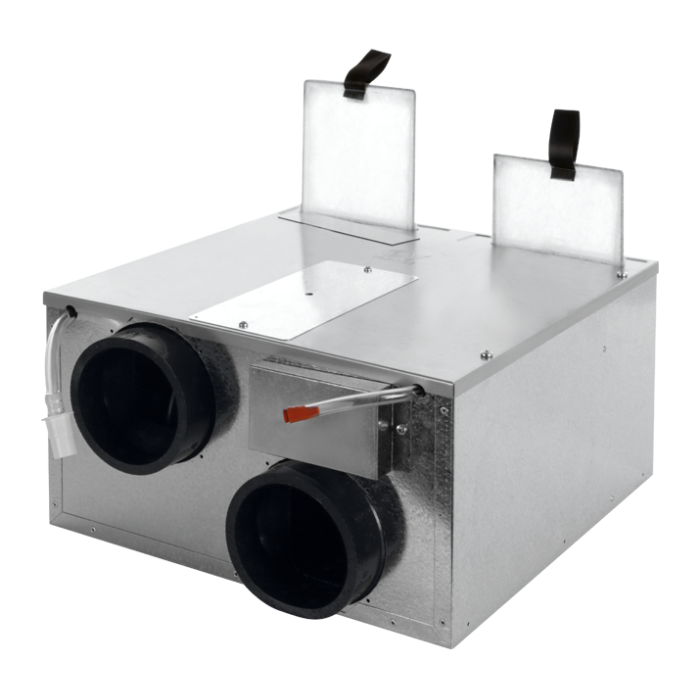

• Air Filtration :

  • ISO Coarse 80% (G2) class filters, to purify both stale outgoing air and incoming fresh air.

Advanced Features :

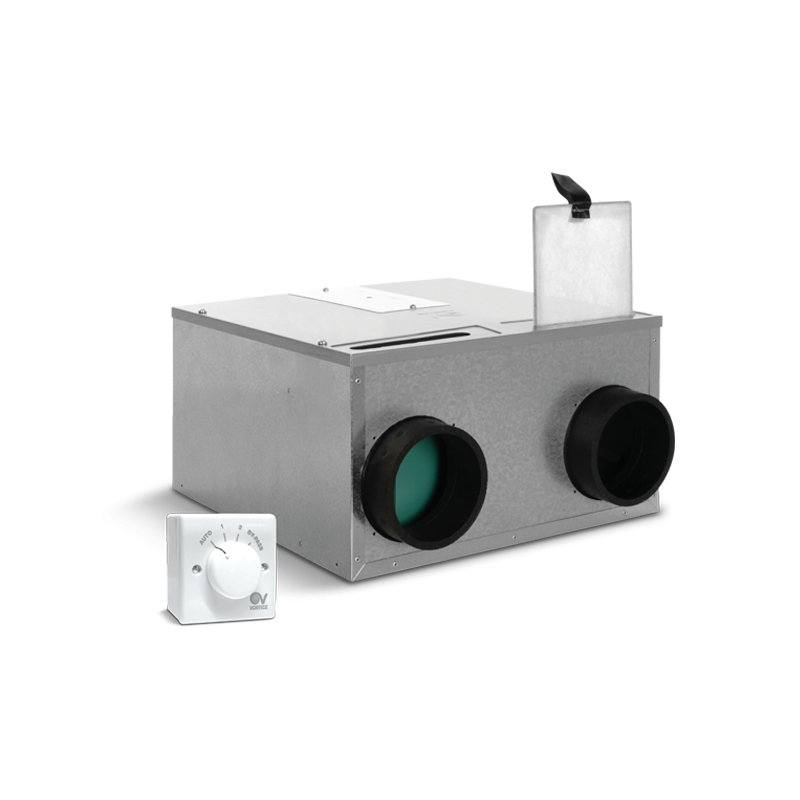

• Remote Control :

  • Speed selection (min/max).
  • Thermodynamic bypass control to optimize energy efficiency.
  • Setting the operating mode (Manual or Automatic). In automatic mode, the device activates and adjusts automatically when the lights are turned on.

• Condensation Management :

  • Tube and pipette for condensation drainage.
  • Recovery tray with anti-overflow protection.

Additional Technical Data :

• Frequency : 50 Hz
• Degree of Protection : IPX2
• Insulation Class : 1st Class
• Weight : 8.3 kg
• Power Consumption :
  • Maximum speed: 86W
  • Minimum speed: 6 W
• Voltage : 230V
• Flow rate :
  • At maximum speed: 34 l/s (122 m³/h)
  • At minimum speed: 17 l/s (64 m³/h)
• Pressure :
  • Maximum speed: 20 mmH2O (200 Pa)
  • Minimum speed: 10 mmH2O (100 Pa)

Accessories Included :

• Suction Grille : Complete with mesh filter.
• Support Brackets : For false ceiling mounting, ideal for discreet and compact installations.

Product Benefits :

1. Energy Efficiency : Reduces consumption thanks to the heat recovery unit and brushless EC motors.
2. Air Quality : Integrated filters for a healthier, more impurity-free indoor environment.
3. Quiet Operation : Internal sound-absorbing material to minimize noise.
4. Compactness : Optimized design for small spaces and ceiling installations.
5. Ease of Control : Intuitive remote control for personalized management.

Ideal Applications :

• Private homes (apartments, villas).
• Small and medium-sized commercial spaces.
• Offices and meeting rooms.
