Vortex hrw 20 mono

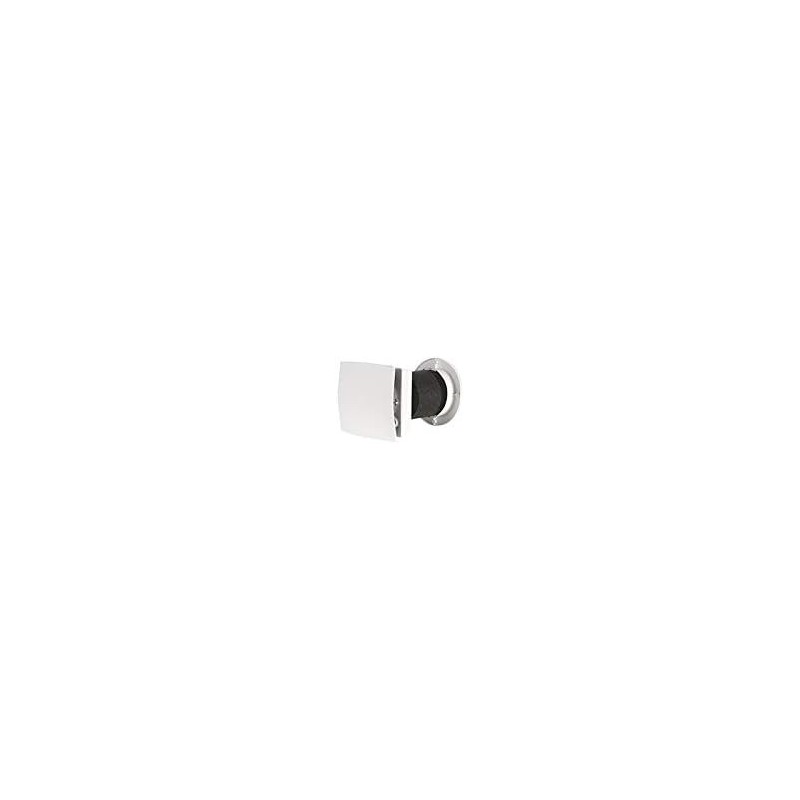

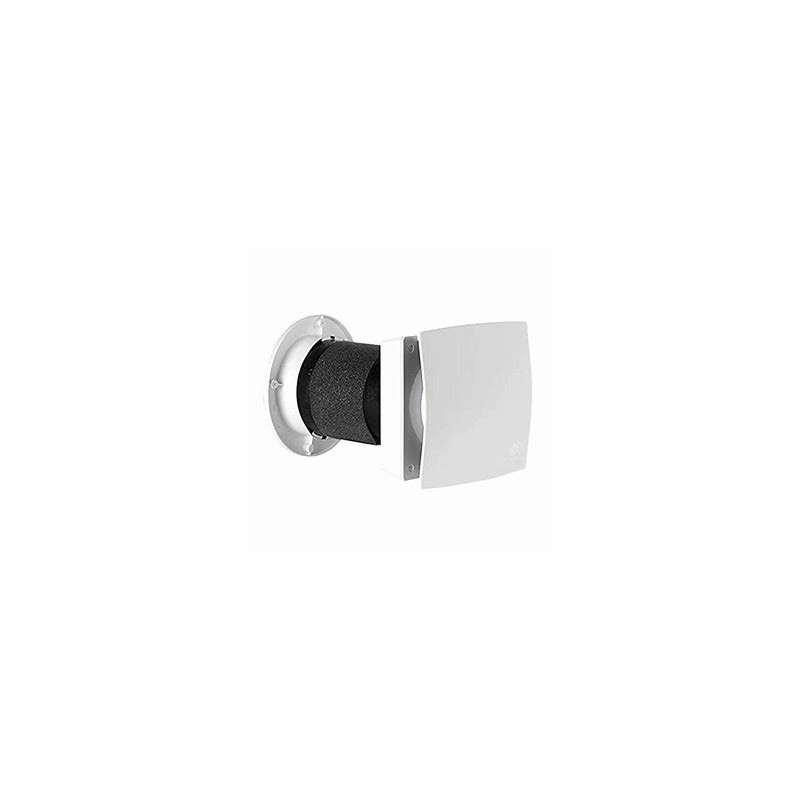

The Vortice VORT HRW 20 MONO (product code: 0000011634) is a decentralized ventilation unit with heat recovery, designed to ensure efficient air exchange in residential and commercial environments. This device helps improve indoor air quality, while reducing heat loss and promoting energy savings.

Main features:

• Structure :

  • Expanded polypropylene (EPP) casing for effective thermal and acoustic insulation.
  • Internal panel in aesthetic plastic polymer (ABS) self-extinguishing V0, internally coated with heat-insulating material.

• Fan motor :

  • Low voltage powered EC motor with shaft mounted on ball bearings, ensuring energy efficiency and long life.
  • Five selectable speeds with air flow rates of 10, 16, 22, 30 and 40 m³/h, adaptable to different ventilation needs.

• Heat exchanger :

  • High efficiency exchanger in ceramic material, capable of recovering up to 90% of the heat from the extracted air.

• Filtration :

  • Washable G3 filter, easily accessible for maintenance, ensures the removal of dust and impurities from the air introduced.

• Installation :

  • External rubber grille, mountable from the inside through the wall hole, simplifying installation.
  • Separate insect net, can be inserted into the duct together with the external grille at the time of installation.
  • Suitable for walls with a standard depth of 300 mm; with optional kit, can be installed on walls up to 700 mm.

• Operating mode :

  • Ventilation with heat recovery.
  • Ventilation with air extraction only.
  • Ventilation with air supply only.
  • Possibility of automatic operation by installing optional temperature and relative humidity sensors.

• Controls :

  • Integrated controls for switching on, off and selecting operating modes.
  • Diagnostic LED and filter status indication.

Technical specifications:

• Power supply voltage : 230V, 50Hz.
• Power consumption : from 1W (minimum speed) to 5W (maximum speed).
• Nominal duct diameter : 160 mm.
• Sound pressure : 23.6 dB(A) at 3 meters at maximum speed, ensuring silent operation.
• Insulation class : II.
• Weight : 2.55 kg.

The VORT HRW 20 MONO is ideal for improving indoor air quality, preventing humidity and mould problems, and contributing to living comfort through effective ventilation with heat recovery.
