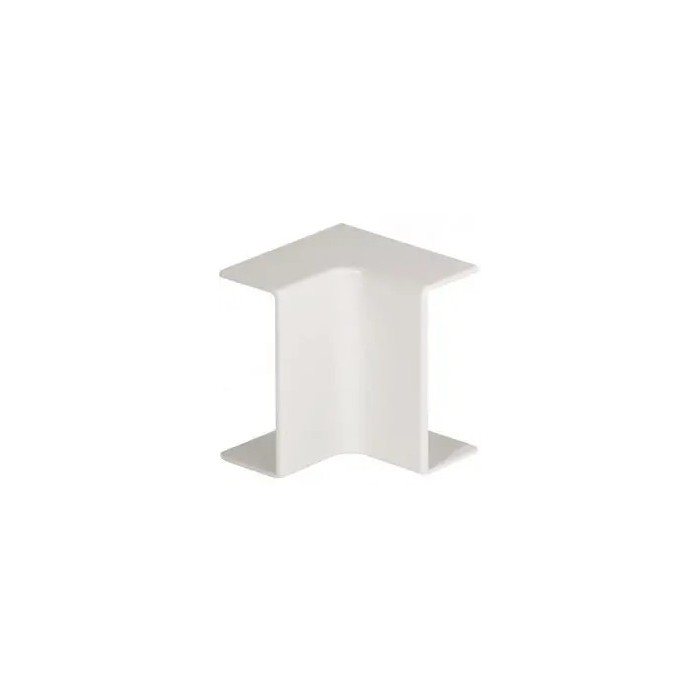

Internal corner 25x18 white
Goccia 1521lm 14.0w e27 op warm white 3k

Map3r3+uu t2 amp.2i 3+dab+u,u 28/28db

2-input mast amplifier for TV/FM signals (III + DAB + UHF), equipped with 28 dB gain on both inputs and integrated 4G/5G filter , compliant with the DVB-T2 standard, ideal for a powerful and interference-free signal.

€18.00
Tax included
FRACARRO
223756
New
Out-of-Stock
Quantity
Add to Wishlist


Notify me when available
TV accessories
  • Security Policies
    Security Policies
  • Shipping Policies
    Shipping Policies

✅ Main features:

  • Entrances :
    • Input 1: III+DAB+UHF
    • Input 2: UHF

  • Gain : 28 dB on each input

  • Gain adjustment : 0–15 dB independent for each input

  • Built-in LTE/5G filter : blocks interference from mobile networks up to 694 MHz

  • Maximum output level :
    • VHF: 112 dBμV
    • UHF: 116 dBμV

  • Noise figure : 7 dB

  • Remote power supply : selectable via dip-switch

  • Integrated LED : Power status indication

  • Protection : IP43, with external ABS shell with slide closure

  • Material : ZAMA die-cast body with high shielding

  • F connectors : high shielding for better signal quality

  • Power supply : 12V DC – absorption 60 mA

📦 Summary Technical Specifications:

Voice Value
Product code 223756
VHF/UHF Gain 28dB
Max output level 112 dBμV (VHF), 116 dBμV (UHF)
Entrances 2 (III+DAB+UHF, UHF)
Noise figure 7dB
Diet 12V DC / 60mA
Degree of protection IP43
Dimensions 120 x 105 x 50 mm
Weight 234 g
Assembly Pole or wall with straps/brackets

🎯 Advantages:

  • Ideal for domestic and centralized systems

  • Effective protection against LTE/5G interference

  • Easy installation with visual control LED

  • High shielding against electromagnetic disturbances

  • Strong and durable die-cast metal body

FRACARRO
FRA223756

Specific References

EAN13
8016978104192
MPN
223756
