Combined core drilling machine with diamond crowns (ds180-t)

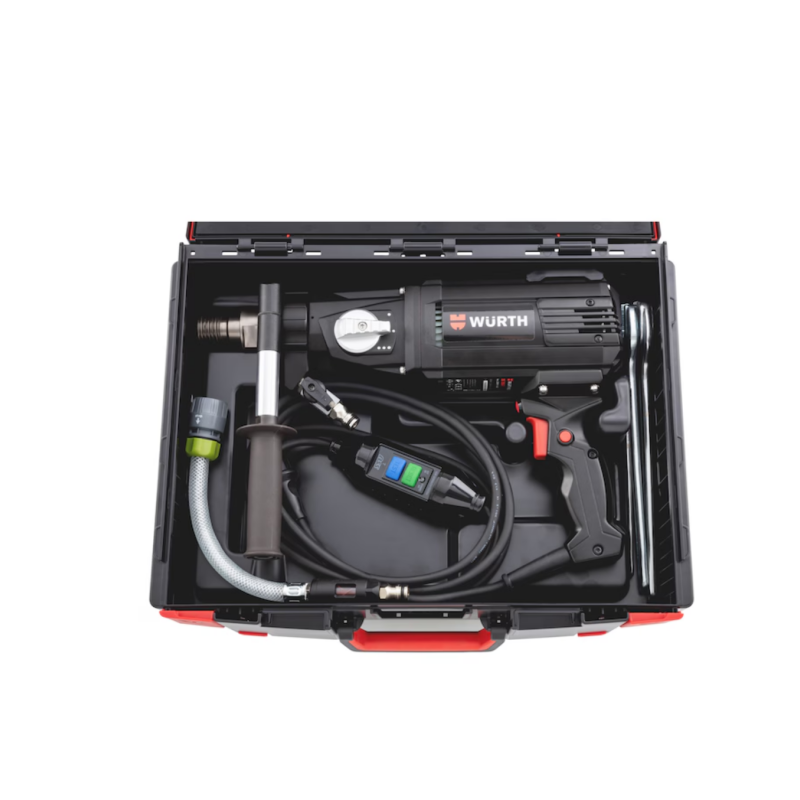

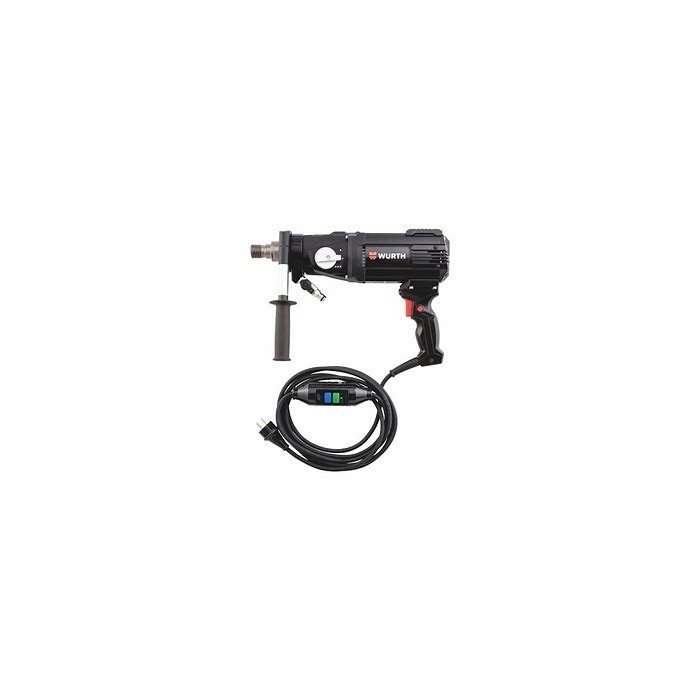

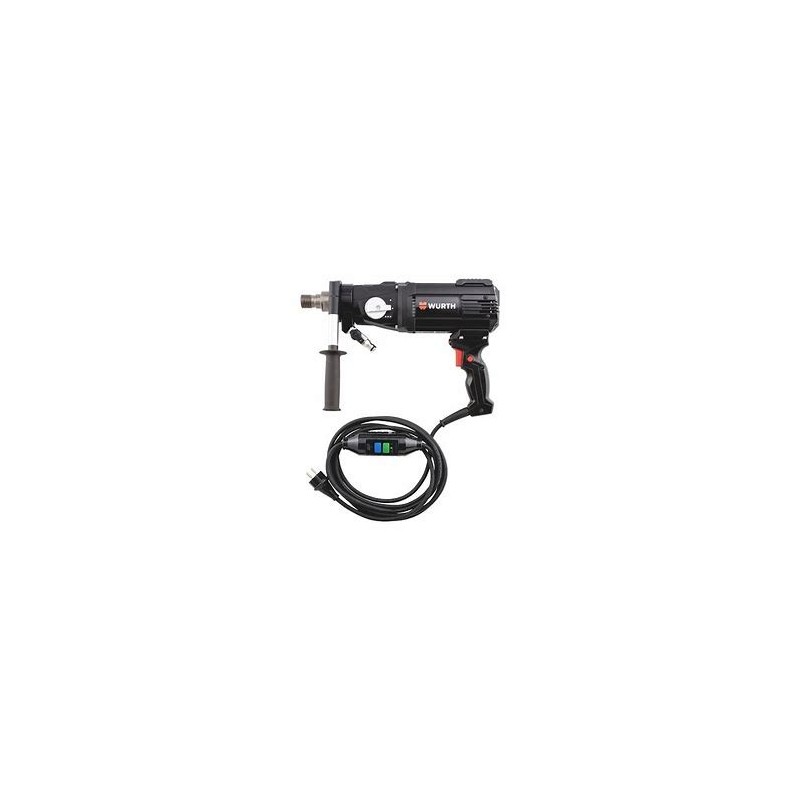

Combined core drilling machine with diamond crowns – Model DS180-T

The DS180-T core drill is a highly efficient and versatile solution for professional drilling in concrete, reinforced concrete and masonry , both manual and with guide support , with the possibility of using it wet or dry , depending on the material and application.

Main features:

• Aluminum body with T-handle : designed to offer optimal weight distribution , particularly advantageous during manual horizontal drilling operations. The ergonomic design ensures comfort and greater control.

• Powerful motor with 3-speed gearbox : allows precise and smooth work progress with all approved core drilling sizes. The multi-color LED load indication system provides immediate visual feedback, optimizing performance and safety.

• Soft start function : Automatically reduces speed for the first 10 seconds , making it easier to start drilling on hard surfaces and reducing vibration and slippage.

• Enhanced safety thanks to the integrated PRCD-S switch , which protects the operator from current leakage during use.

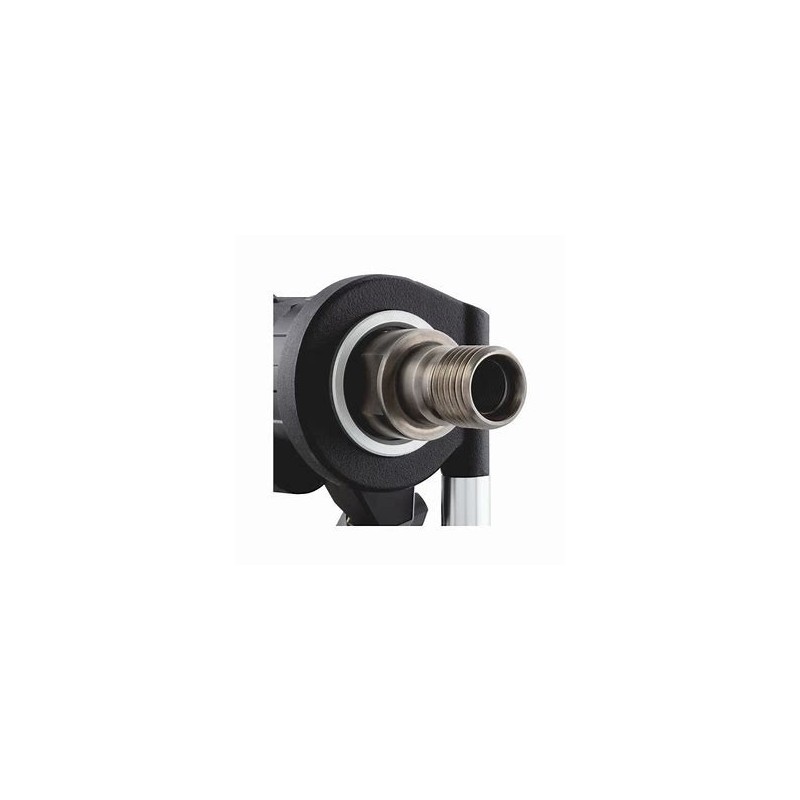

• Chuck with combined attachment : compatible with different types of tips thanks to the double thread ( ½” female and 1¼” male ), for maximum operational flexibility.

• Visual monitoring of water flow : When wet drilling, the flexible hose equipped with a flow indicator allows constant control of the flow, protecting the tool and the work surface.

• Electronic overload protection : the intelligent system reduces the motor speed up to six times in case of overload, preserving the life of the device. The LEDs warn the operator and, if necessary, the motor switches off automatically. Immediate reactivation is possible, unlike traditional thermal protections.

Recommended Applications:

Wet drilling (manual or with support):

• Reinforced concrete

• Unreinforced concrete

Dry drilling (manual or with support):

• Solid and perforated bricks

• Clinker bricks

• Limestone sandstone bricks

• Cellular concrete

Drilling with twist drill bit:

• Preparing holes for electrical and plumbing installations

The DS180-T core drill stands out for its combination of power, precision and safety , offering high performance for both construction professionals and installation technicians looking for a reliable and versatile tool.
