1 litre nitrogen kit with az200-50 reducer

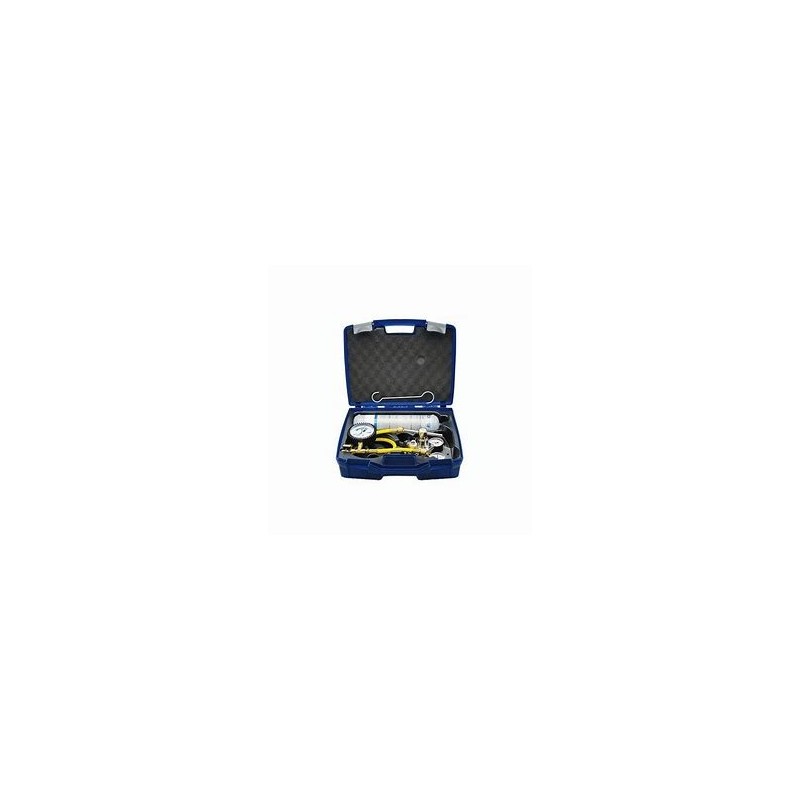

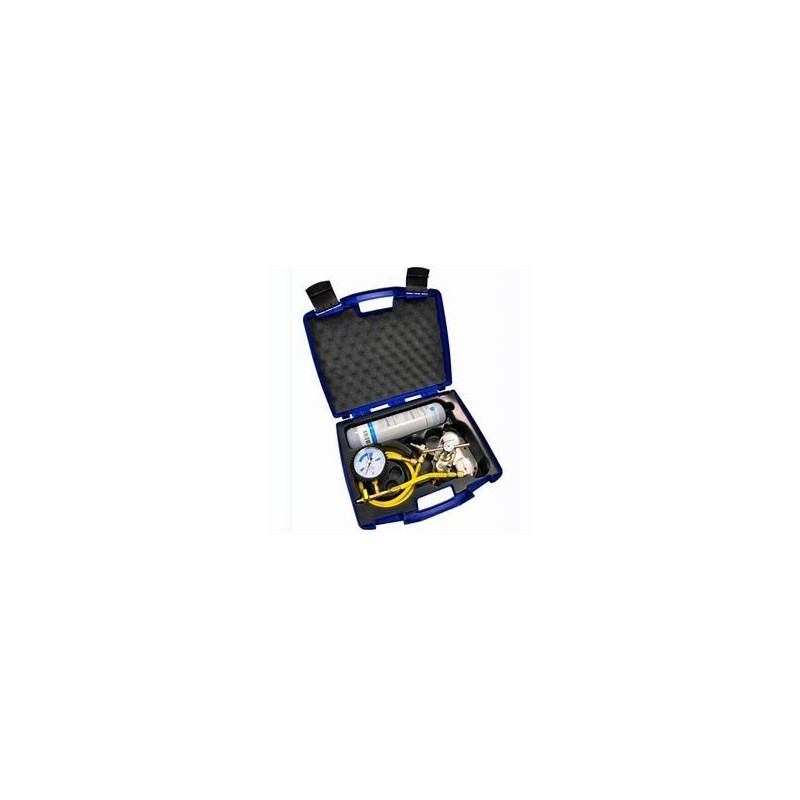

1 litre Nitrogen Kit with AZ200-50 reducer – Model K-AZ200-50/BN2

Wigam 's K-AZ200-50/BN2 Nitrogen Kit is a professional solution designed to perform pressurization and control operations on HVAC systems. Thanks to its compactness and versatility, it is ideal for both workshop and field interventions, ensuring precision and safety in maintenance and installation operations.

Main features:

• AZ200-50 Reducer : Equipped with a double integrated connection, compatible with both 1-litre cartridges and 5-litre cylinders, it offers flexibility of use.

• Pressure gauge Ø80 mm, class 1.0 : Provides an accurate pressure reading, with defined sectors, positioning index and adjustment screw for accurate calibration.

• 1/4" SAE Hose : Total length of 1,100 mm (900 mm + 200 mm), designed to withstand operating pressures and ensure a secure connection.

• RG180/5-4 Adapter : Allows connection between 5/16" SAE female and 1/4" SAE male fittings, increasing the versatility of the kit.

• Sturdy plastic case : Makes transport easier and protects the tools, ensuring a long life for the kit.

Technical specifications:

• Reducer inlet pressure : 20 MPa

• Maximum outlet pressure : 4.8MPa

• Connections : 1/4" SAE

• Dimensions : 360 x 230 x 120 mm

• Weight : 4.5 kg

• Conformity : CE n. 1516 2007

Applications:

• Pressure Leak Testing : Verifying the integrity of HVAC systems through pressurization testing.

• HVAC System Flushing : Removal of impurities and residues inside the circuits, ensuring efficiency and durability of the systems.

• Fluxing during welding : Ensures an inert environment during welding operations, preventing oxidation and contamination.

• Verification and calibration of pressure switches and manometers : Ensures the correct functionality and precision of the measuring instruments.
