White built-in digital thermostat

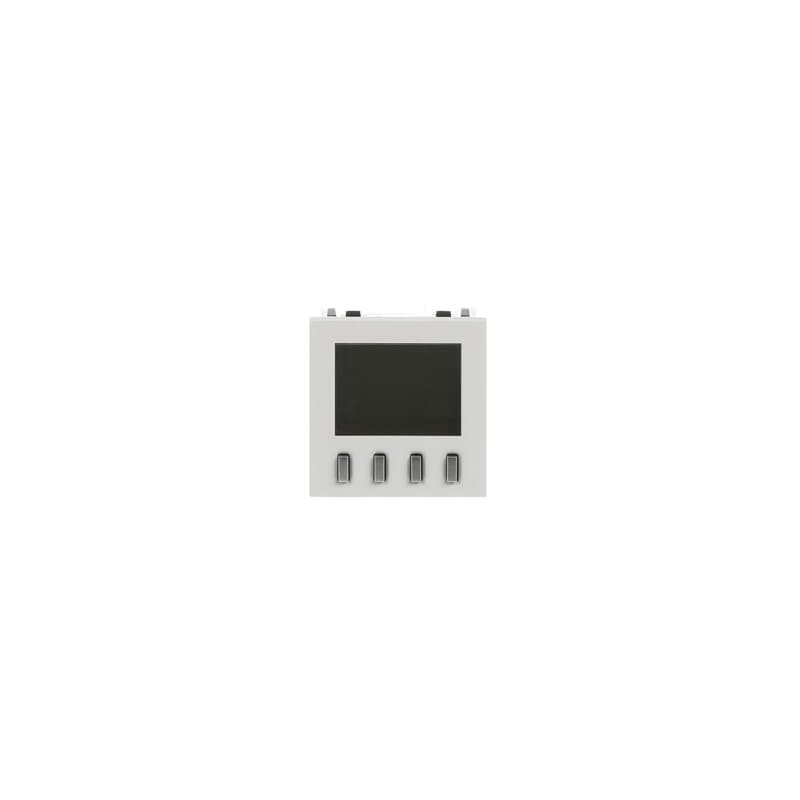

The ABB 2CSY1202XC flush-mounted digital thermostat is designed for efficient temperature control in residential and commercial environments. This device offers both heating and cooling functionality, allowing for versatile management of the indoor climate.

Main features:

• Power supply: Works with a voltage of 250V~.

• Backlit Display: Equipped with a timed blue backlit LCD display, which automatically turns off after 6 seconds of the last interaction, ensuring clear reading of the information.

• Relay output: It has a 10A res./4A ind. 250V~ NO (Normally Open) contact, free of potential, for the direct control of heating or cooling systems.

• Operating Modes: It offers several operating modes, including:

  • Antifreeze: Protects the system by maintaining the minimum temperature set to prevent freezing.

  • Manual: Allows you to maintain a constant temperature selected by the user.

  • Off: Disables all adjustment functions.

• Temperature control: Allows you to set specific temperatures for the anti-freeze and overheat functions, adapting to seasonal needs.

• Adjustable hysteresis: The difference between the set temperature value and the actual switch-on or switch-off temperature of the system is adjustable between 0.1°C and 1°C, allowing precise control and preventing frequent switching on and off.

• Temperature Correction: A calibration of the ambient temperature reading can be performed with an adjustable offset from -3°C to +3°C, to ensure accurate measurements.
