Ds202c l differential circuit breaker 4.5ka 2p ac c16 30ma

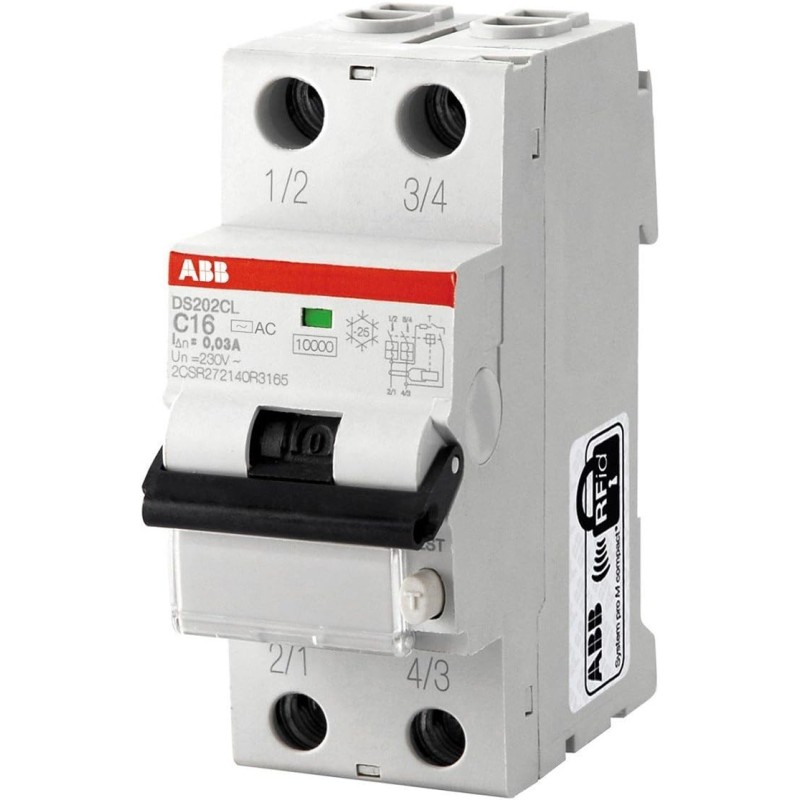

ABB DS202C L C16 AC30 – 2 Pole 16A 30mA Differential Circuit Breaker

The ABB DS202C L C16 AC30 differential circuit breaker combines protection against overloads, short circuits and earth leakage in a single device, ensuring maximum safety for domestic and commercial electrical systems.

Technical features:

• Rated current : 16 A

• Number of poles : 2 (phase + neutral)

• Intervention curve : C (intervention between 5 and 10 times In)

• Differential sensitivity (IΔn) : 30 mA (high sensitivity, human protection)

• Differential type : AC (sinusoidal alternating currents)

• Breaking capacity : 4.5 kA

• Rated voltage : 230 V AC

• Frequency : 50/60 Hz

• Mounting : 35mm DIN rail

• Width : 2 DIN modules

• Degree of protection : IP20

• Operating temperature : -25°C to +55°C

Advantages:

• Combined protection against short circuit, overload and earth leakage

• Compact and easy to install

• Ideal for residential electrical panels and small tertiary systems

• High level of safety for people and goods
