Solax x3 mic-6.0-td three-phase 6kw inverter

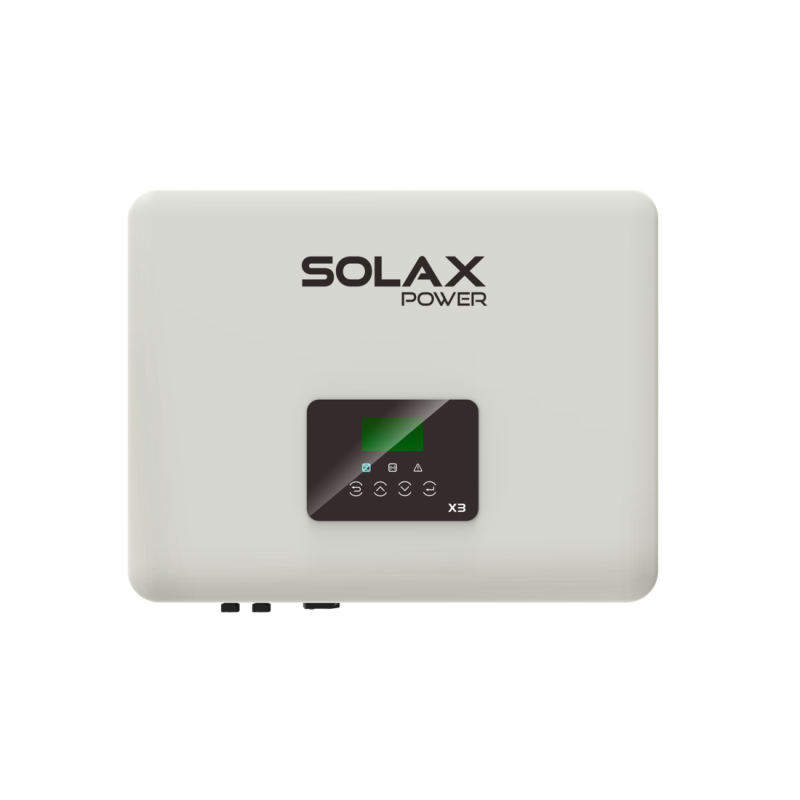

SolaX X3 MIC-6.0-TD – 6kW Three-Phase Inverter for Photovoltaic Systems

The SolaX X3 MIC-6.0-TD three-phase inverter is a compact, reliable and highly efficient solution for small and medium-sized residential and commercial photovoltaic systems. With a nominal power of 6kW , it is designed to ensure maximum performance in solar energy conversion, optimizing production and ensuring high safety standards.

Main features:

✅ High efficiency – maximum efficiency up to 98.3% , for optimal energy conversion and minimal losses.
✅ Compact and lightweight design – easy to install even in small spaces, ideal for residential and commercial systems.
✅ Dual MPPT – with two maximum power point trackers, the inverter guarantees greater flexibility in system design and optimal performance even in the event of shading or different panel orientations.
✅ Built-in WiFi connection – for remote monitoring via the SolaX Cloud app, available for smartphones and computers.
✅ Advanced Protection – Includes over-voltage, reverse polarity, short circuit and over-temperature protections to ensure safe and continuous operation.
✅ Compatibility with European electrical networks – fully compliant with network regulations for installation in three-phase environments.

Main technical specifications:

• Brand: SolaX

• Model: X3 MIC-6.0-TD

• Rated output power: 6,000 W (6 kW)

• Phase: Three-phase

• MPPT Number: 2

• Maximum efficiency: 98.3%

• Degree of protection: IP65 (suitable for outdoor installation)

• Communication interface: WiFi, RS485, DRM

• Operating temperature: -25°C to +60°C

• Weight: about 18 kg
