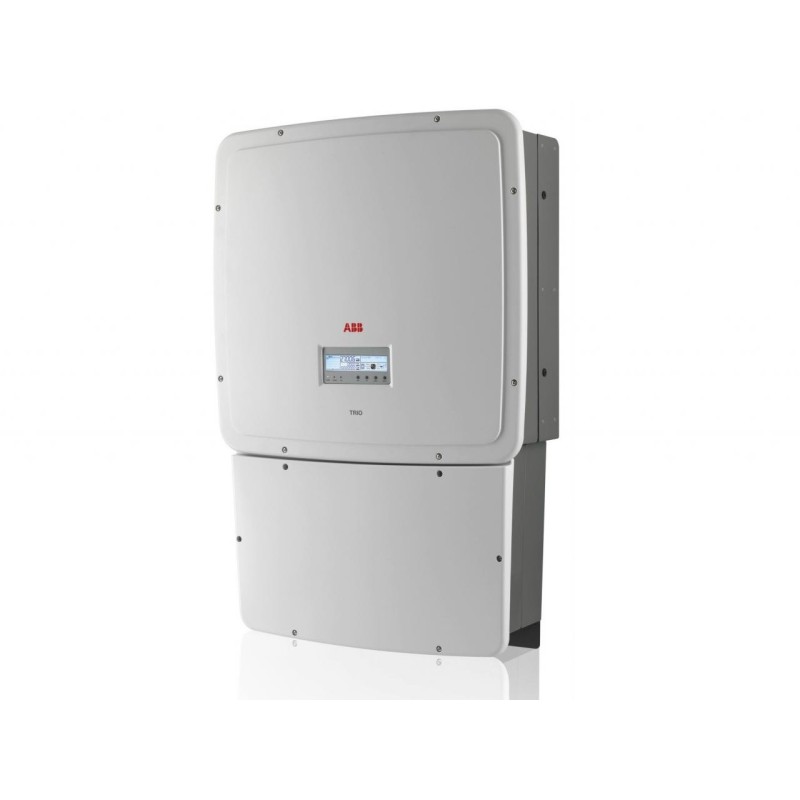

Three-phase inverter ABB TRIO-20.0-TL-OUTD-S2X-400 20 kW

⚡ ABB TRIO-20.0-TL-OUTD-S2X-400 Three-Phase Inverter – 20 kW Professional with 2 MPPT

The ABB TRIO-20.0-TL-OUTD-S2X-400 is a high-end three-phase inverter designed for commercial and industrial photovoltaic systems. Powerful, reliable and highly efficient, it offers maximum performance in all working conditions thanks to the independent management of two MPPT trackers.

Thanks to the IP65 protection rating , it is perfect for both indoor and outdoor installations, while the passive cooling system and quality components make it long-lasting and low-maintenance.

✅ Technical features

• Rated output power : 20,000 W

• Number of MPPT : 2 independent

• MPPT voltage range : 400 V – 800 V

• Maximum efficiency : 98.2%

• Output voltage : Three phase 400V

• Protection : IP65 (dust and water resistant)

• Cooling system : Passive, fanless

• Integrated DC/AC switches

• Weight : about 70 kg

• Dimensions (W x H x D) : 702 x 1061 x 292 mm

🎯 Benefits

• Maximum energy production thanks to high efficiency

• Design flexibility with 2 independent MPPTs

• Safe and easy installation with integrated switches

• Quiet and reliable operation thanks to natural convection

• Robust structure for outdoor use even in adverse weather conditions

💡 Ideal for medium and large photovoltaic systems, the ABB TRIO 20 kW inverter offers a perfect mix of power, efficiency and reliability.
