Three-phase PV inverter 25kw ac - 2mppt - ip

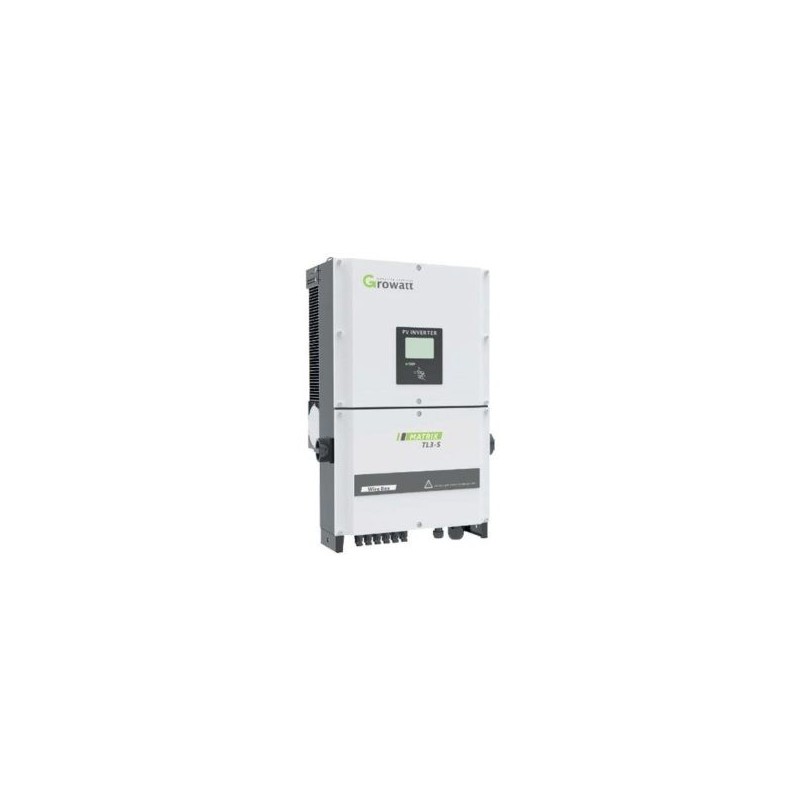

Growatt GW25000TL3-S three-phase PV inverter is designed for commercial rooftop or ground-mounted applications, offering a rated power of 25kW.

Main features:

• High Efficiency: Reaches a maximum efficiency of 98.7%, ensuring excellent conversion of solar energy into electricity.




• Dual MPPT tracker: Equipped with two independent MPP trackers, it allows greater flexibility in system design and optimizes energy collection even in variable irradiation conditions.




• Wide Operating Voltage Range: Supports a wide range of input voltages, making it easy to adapt to different PV module configurations.




• Built-in Anti-PID Function: Includes a built-in function to prevent potential induced degradation (PID), improving the life and performance of PV modules.




• Advanced Protection: It has type II protections against overvoltages on both the DC and AC sides, ensuring greater safety of the system.




• Compact Design & Easy Installation: Compact design makes it easy to carry and install, making it suitable for various applications.




Main technical specifications:

• Rated output power: 25,000W

• Maximum input voltage (DC): 1,000 V

• Starting voltage: 250V

• Number of MPPT trackers / strings per MPPT: 2 / 3

• Rated voltage (AC): 230V / 400V

• Mains frequency: 50Hz / 60Hz

• Environmental protection grade: IP65, suitable for outdoor installation

• Dimensions (W x H x D): 470 x 754 x 270 mm

• Weight: 48 kg
