Rev. dual band perimeter radio
Two-way radio remote control

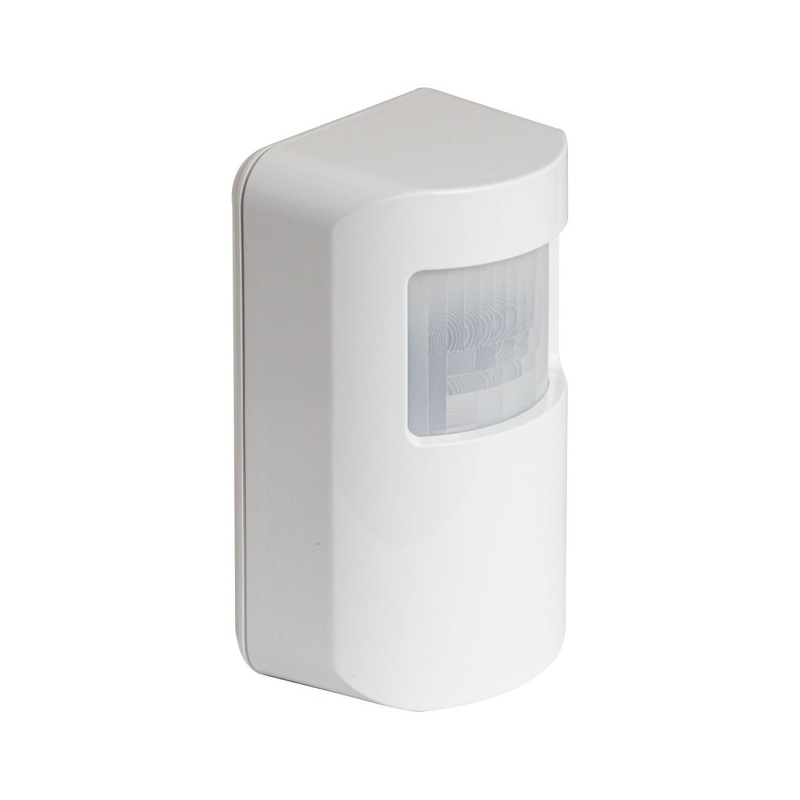

Dual band radio irp detector

Wireless passive infrared (PIR) motion sensor with dual-band transmission, designed for AVE security systems. Ensures greater reliability and robustness against interference, ideal for residential and commercial environments.

€90.00
Tax included
AVE
AF963R-DB
New
1 Item
Last items in stock
Quantity
Add to Wishlist

Sensors and Detectors
  • Security Policies
    Security Policies
  • Shipping Policies
    Shipping Policies

  • Type : Wireless, dual-band PIR (PIR) detector

  • Battery Included : 1 × CR123

  • Colour : white RAL 9016 (RAL 9010)

  • Dimensions : 112 × 68 × 51 mm

  • Range : up to 15 m with “curtain effect” beam (~1°)

  • Stand-by : 0.055 mA @ 3 V

  • Coverage monitoring : yes (active supervision)

  • Anti-masking : Protects against attempts to obscure or cover the sensor

  • Installation : Wall mounted, recommended height 1.8–2.2 m

🎯 Benefits

  1. High radio reliability : Dual frequency transmission improves resistance to interference and noise.

  2. Wide range : Coverage up to 15m with curtain beam, great for long spaces.

  3. Simple and wireless installation , thanks to the CR123 battery power supply.

  4. Advanced Security : Anti-masking and active supervision ensure effective protection.

  5. Neutral and professional design , coordinated with AVE equipment (RAL 9016).

📦 Technical specifications

Voice Detail
Model AF963R‑DB (code AVE )
Sensor type PIR (passive infrared)
Radio mode Dual-band wireless
Drums 1× CR123 (included)
Standby current 0.055mA @ 3V
Diet 3 V
Maximum capacity 15 m
Detection angle ~1° (tent)
Dimensions (W×H×D) 68 × 112 × 51 mm
Color White RAL 9016/9010
Additional Features Anti-masking, supervision
AVE
AVEAF963R-DB
1 Item

Specific References

EAN13
8008379149629
MPN
AF963R-DB
New
