24 VAC flood detector

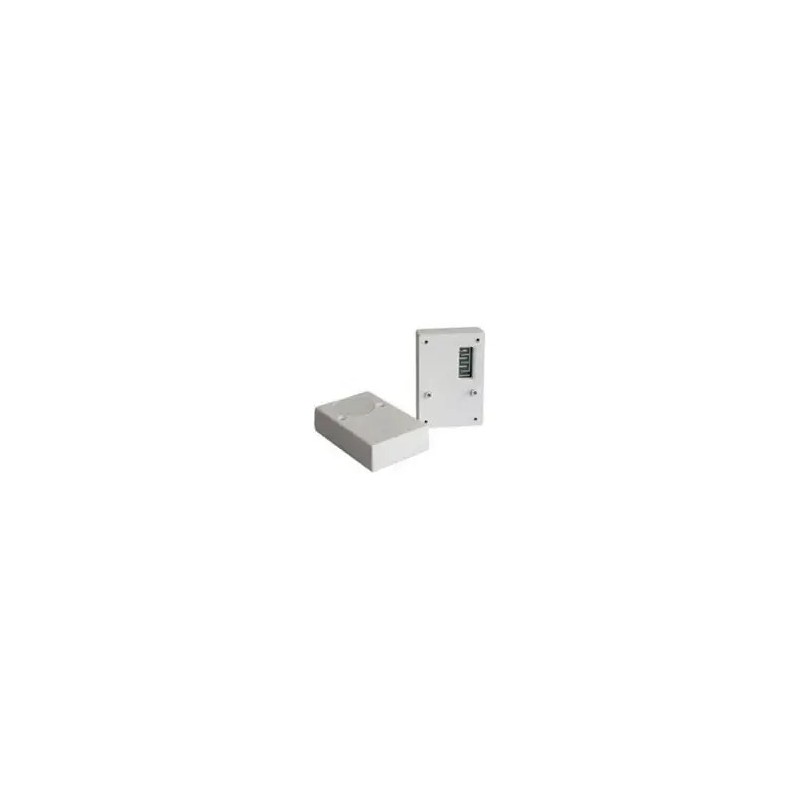

Eaton 1450‑24‑VAC electronic liquid detector, powered by 24 V AC. Ideal for protection against flooding in technical environments such as boiler rooms, data centers, offices and laboratories. Equipped with probe sensors and integrated alarm relay, it promptly signals water leaks.

€35.00
Tax included
EATON MOELLER
1450-24-VCA
New
6 Items
Quantity
Add to Wishlist

Sensors and Detectors
  • Security Policies
    Security Policies
  • Shipping Policies
    Shipping Policies

  • Power supply : 24 V AC (also compatible with 12/24 V DC in CSA models)

  • Sensors : Four metal feet and internal coil for liquid detection

  • Interface : relay with changeover contact, 30 V DC, max 1 A for alarm actuation

  • Operating temperature : +5°C to +50°C

  • Protection level : IP10 (for installation in environments not directly exposed to water)

  • Connection type : terminals for external probe, power supply and relay outputs

  • Consumption : approximately 30 mA at 24 V AC

  • Construction : Durable thermoplastic container

📦 Technical specifications summary

Characteristic Value
Model 1450‑24‑VAC (1450‑CSA series adaptable to 12/24 V DC/AC)
Diet 24V AC
Detection Probes + internal coil
Output relay Exchange, 30 V DC, max 1 A
Consumption current 30mA
Temperature +5°C ÷ +50°C
IP IP10
Assembly Wall / surface

🎯 Benefits and applications

  • Reliable protection against flooding in risky environments (boiler rooms, control units, HVAC systems).

  • Signaling ready : The relay can activate sirens, control units or automatic cut-off systems.

  • Simple connections via terminals; compatible with additional probes up to 10 units with cables up to 60 m

  • Robust and compact , ideal for installations in technical cabinets, racks or electrical panels.

EATON MOELLER
EAO1450-24-VCA
6 Items

Specific References

EAN13
8054934901065
MPN
1450-24-VCA
