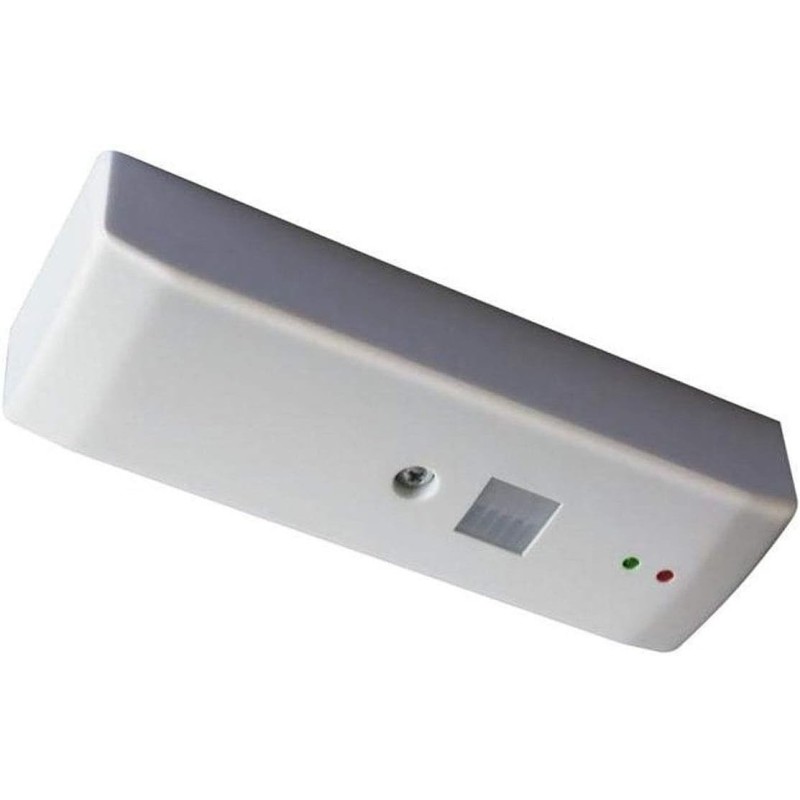

Hiltron DT8 – Dual Technology Curtain Detector (PIR + Microwave)

The Hiltron DT8 is a curtain detector for doors and windows, equipped with dual technology: passive infrared (PIR) and microwave. It guarantees high immunity to interference and anti-masking function, perfect for perimeter protection in residential and commercial environments.

€35.26
Tax included
HILTRON SRL
DT8
New
1 Item
Last items in stock
Quantity
Add to Wishlist

Sensors and Detectors
  • Security Policies
    Security Policies
  • Shipping Policies
    Shipping Policies

  • Technology : Dual (PIR + microwave), anti-masking

  • Model : DT8 (Hiltron code / C1ADT8)

  • Coverage : 75° vertical angle, ideal for doors and windows

  • Adjustable sensitivity : Allows adjustments to reduce false alarms

  • Anti-opening tamper : alert in case of tampering

  • Alarm memory function : LED indicates which detector triggered the alarm

  • Power supply : 12 V DC, consumption approx. 28 mA

  • Dimensions : 117 × 38 × 25 mm

  • Regulations : compliant with CEI EN 50131‑1, EMC/2006/95/CE

📦 Technical specifications summary

Characteristic Details
Technology PIR + Microwave (Dual Tech)
Coverage angle 75° (curtain)
Voltage 12V DC
Current draw 28mA
Dimensions (W×H×D) 117 × 38 × 25 mm
Sensitivity Adjustable
Tamper & Anti-Mask Yes
Alarm memory Integrated LED
Assembly Wall, passage-oriented
Reference standards CEI EN 50131‑1, EMC/2006/95/CE

🎯 Benefits and directions for use

  1. Reliable protection on windows and doors with curtain detection

  2. Reduction of false alarms thanks to adjustable sensitivity

  3. Anti-masking and tamper for safety and reliability

  4. Easy installation on the wall, with screws or bracket

  5. Professional compatibility , ideal for 12V powered systems
