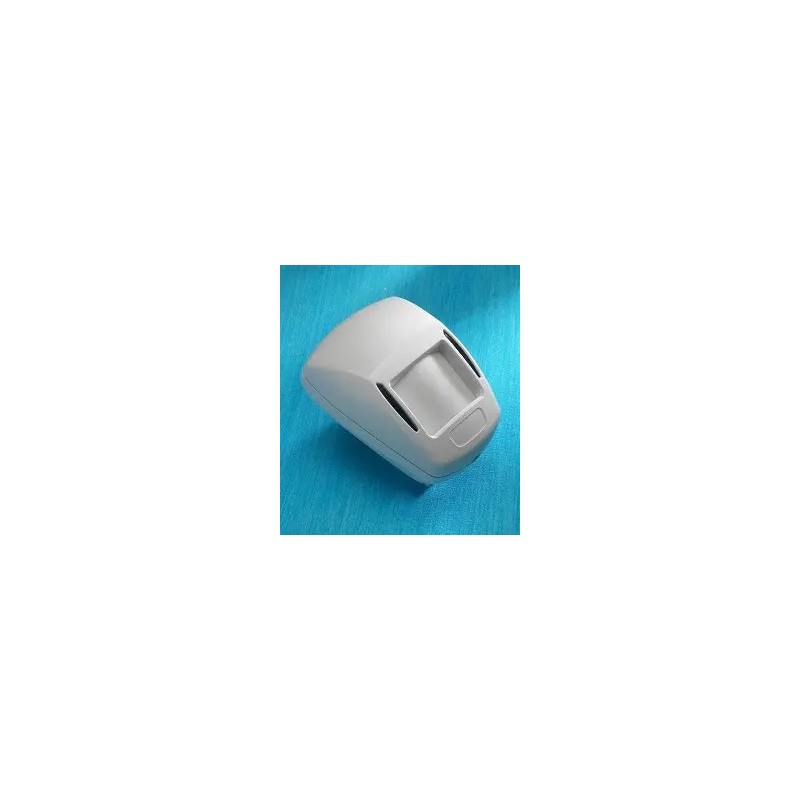

Polaris DT3000 – IR + Microwave Dual Technology Volumetric Detector
The Polaris DT 3000 is an indoor detector with dual PIR + microwave technology, designed for powerful and reliable protection. It integrates advanced functions such as event memory, self-diagnosis and AND/OR mode between sections, reducing false alarms. Ideal for homes and offices, it can be easily installed on a wall or corner thanks to the included joint and is equipped with 12 V wired power supply.
-
Security Policies -
Shipping Policies
Integrated technologies : passive infrared (PIR) and microwave – AND/OR operation for high reliability
Alarm Memory : Distinct LEDs to indicate whether activation came from PIR, microwave or alarm event
Adjustable range : up to 20 m in curtain mode, or 12 m in volumetric mode
Temperature compensation : integrated function to adapt sensitivity to temperature variations
Self-diagnosis & fault reporting : monitors PIR/MW sections and warns even when the system is deactivated
Power supply : 12 V nominal (9.6–16 Vdc), typical current draw 32 mA (max 50 mA)
Design & Installation : Body 95×68×46 mm, weight ~97 g, joint included for wall or corner mounting
Robustness & Compatibility : IP41 class, RF noise immunity up to 1 GHz, Fresnel lens with anti-creep area
📦 Essential Technical Specifications
| Characteristic | Detail |
|---|---|
| Diet | 12 V nominal (9.6–16 V DC) |
| Current draw | 32 mA typical (50 mA max) |
| Flow rate | 12 m volumetric / 20 m "tent" |
| Detection angle | ~98° |
| Dimensions (W×H×D) | 95 × 68 × 46 mm |
| Weight | ~97 g |
| Degree of protection | IP41 |
| RF noise immunity | up to 1GHz |
| Operating temperature | –10 °C ÷ +50 °C |
| Sensors | PIR + microwave + thermally compensated curtain lens. |
| Additional functions | LED memory, fault signalling, self-diagnosis sections |
