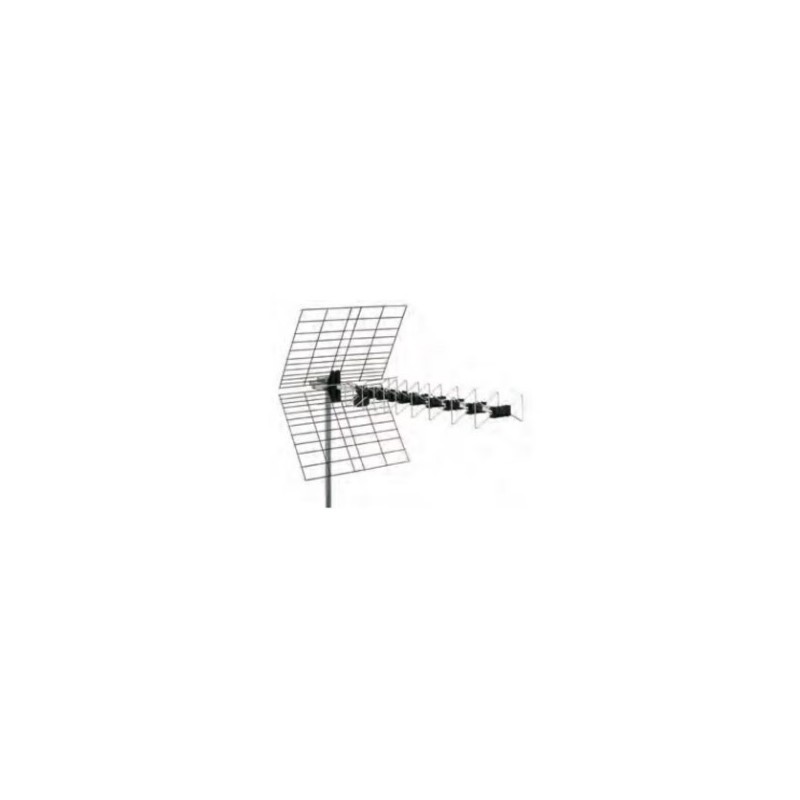

Fracarro 217852 - blu225f antenna f connector

Pre-assembled biconical antennas with high performance F connector: high gain, high directivity, excellent return loss. Easy to install and characterized by excellent connection reliability. The mast attachment with a maximum diameter of 60mm with knurled surface allows for excellent resistance and hold on the palo.Elementi . Elements no. 22 Band V Italian channels E38–E69 Bandwidth MHz 606-862 Maximum gain dBi 13 Front-to-back ratio dB 30 Return loss dB -17 Beam width (-3dB) ° +/- 25 Wind load at 120km/h (720N/m2) kg (N) 5.5 (53.95) Connector type F Impedance Ohm 75 Mast attachment. Max diameter mm 60 Dimensions (L x W) cm 84x50 Packaging Unit weight kg 1.57 Accessories Horizontal polarization included Horizontal zenith adjustment included Vertical polarization included Vertical zenith adjustment included Auxiliary cradle Np
