One-dm-1.2-tl-plus-b

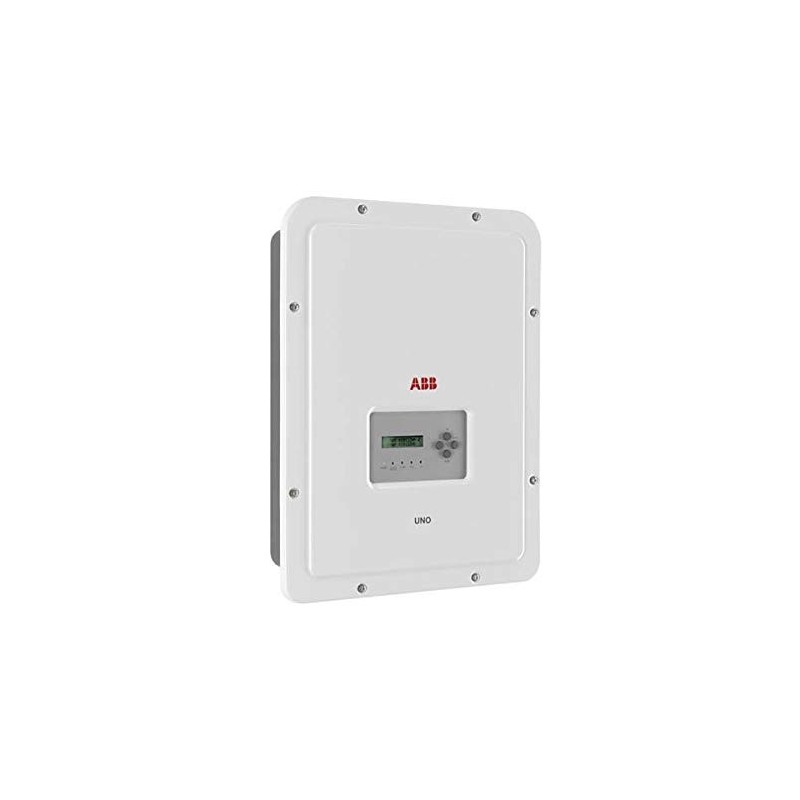

The ABB UNO-DM-1.2-TL-PLUS-B photovoltaic inverter is a single-phase solution designed for small residential systems, with a nominal power of 1.2 kW. This device integrates a single MPPT (Maximum Power Point Tracker) and offers a compact and lightweight design, facilitating installation and integration in various living contexts.

Main features:

• Rated output power : 1,200 W
• Number of MPPT : 1
• MPPT Voltage Range : 100V - 530V
• Maximum efficiency : 94.8%
• Communication : Integrated wireless channel
• Degree of protection : IP65, suitable for outdoor installations

Dimensions and weight:

• Height : 553 mm
• Width : 418 mm
• Depth : 175 mm
• Weight : 15 kg

The inverter is equipped with advanced features such as dynamic feed-in control and load management, making it ideal for integration into smart buildings and smart grid networks. It also supports remote firmware upgrade and monitoring via the Aurora Vision cloud.
