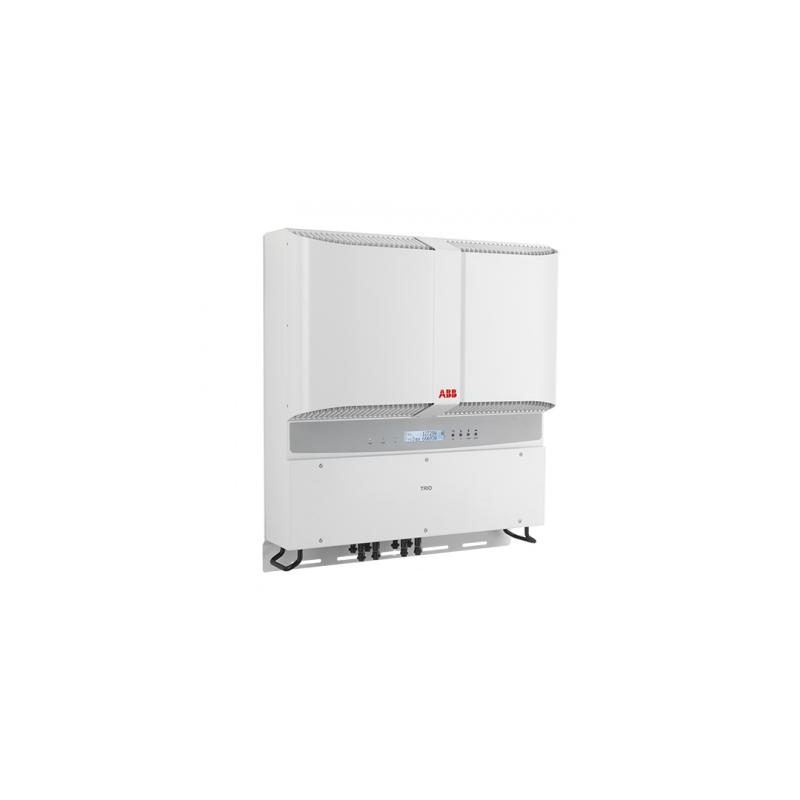

⚡ ABB PVI-12.5-TL-OUTD – Three-phase inverter 12.5 kW with double MPPT

The ABB PVI-12.5-TL-OUTD inverter is designed for commercial photovoltaic systems, offering an efficient and reliable solution for solar energy conversion. Thanks to its transformerless technology and two independent MPPT trackers, it guarantees optimized energy production even in variable irradiation conditions.

✅ Main features

• Rated output power : 12,500 W

• Number of MPPT : 2 independent

• MPPT Voltage Range : 360V to 750V

• Maximum efficiency : up to 97.8%

• Degree of protection : IP65, suitable for outdoor installations

• Dimensions (LxHxD) : 716 x 645 x 224 mm

• Weight : 41 kg

• Cooling system : natural convection, fanless

• Communication connections : RS485, WLAN

🎯 Product Benefits

• High energy efficiency : maximizes the energy production of the photovoltaic system.

• Design flexibility : the two independent MPPTs allow to manage strings with different orientations.

• Reliability and durability : no components subject to wear, such as fans, and use of high-quality materials.

• Easy installation : Compact design and intuitive connections make assembly easy.

• Monitoring and control : integrated communication interfaces for effective remote management.

💡 The ABB PVI-12.5-TL-OUTD inverter represents an ideal solution for commercial photovoltaic systems, offering efficiency, reliability and ease of integration into the energy system.
