Three-phase DC/AC switchboard, 2 strings 1 standard 1000V output

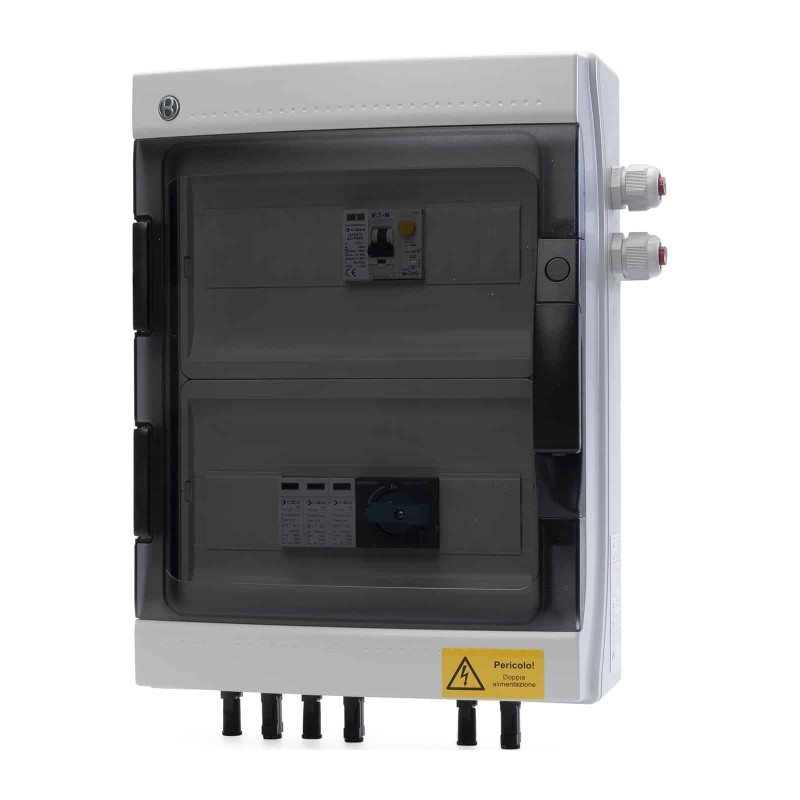

The Cabur ISL02T01CA10 is a three-phase DC/AC string control unit designed to optimize the management and protection of photovoltaic systems. This device allows you to safely and efficiently connect up to two photovoltaic strings to an inverter .

Main features:

• DC Inputs : Supports up to 2 inputs from the PV field, allowing the connection of two separate strings.

• DC Output : Provides 1 output to the inverter, facilitating centralized management of the energy produced.

• DC connections : uses Cabur Line 4 connectors , reliable and easy to install.

• MPPT Management : Supports up to 1 MPPT (Maximum Power Point Tracking), for optimal efficiency.

• Differential protection : equipped with a class A differential switch , it guarantees protection against current leakage.

• Surge protectors : Integrated on both the AC and DC sides, to protect against voltage spikes.

• Voltage compatibility : suitable for systems up to 1000 V.

• Compliance : Complies with IEC EN 61439-2 for safety and quality.

Technical specifications:

• Maximum DC input voltage: 1000V

• Maximum input string current: 10A

• MPPT maximum output current: 20A

• Maximum AC input voltage: 440V

• Maximum AC input current: 16A

• Nominal frequency: 50 Hz

• Degree of protection: IP65

• Dimensions (with connectors): 460 x 340 x 143 mm
