Multifunction Timer Relay

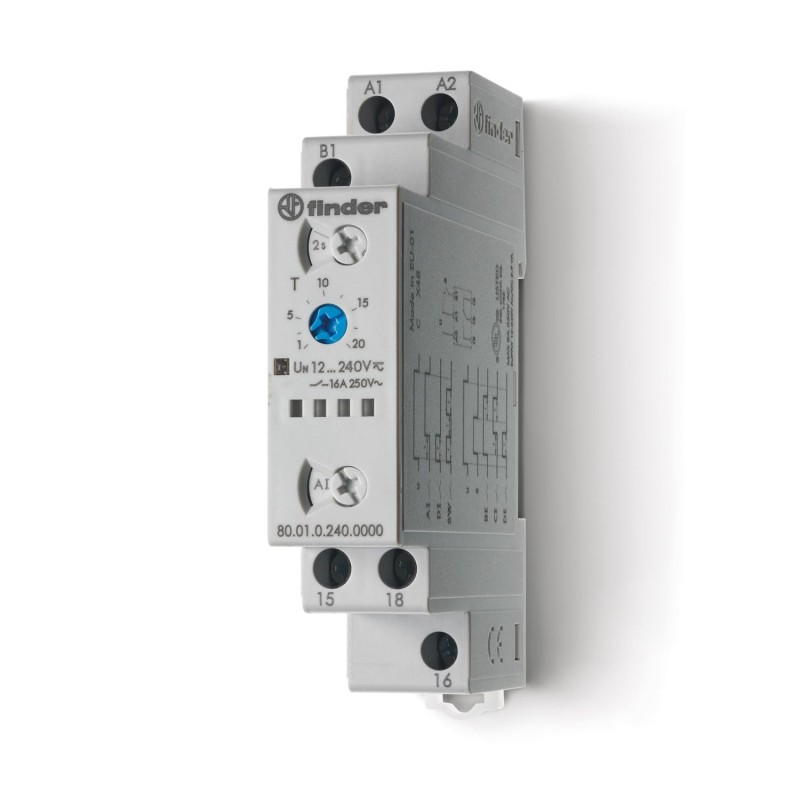

🔧 Time Relay Finder 800102400000PAS

Series: 80.01
Type: Modular multifunction timer relay, multivoltage

⚙️ Technical specifications:

• Full Product Code: 800102400000PAS

• Supply voltage: 24 to 240 V AC/DC

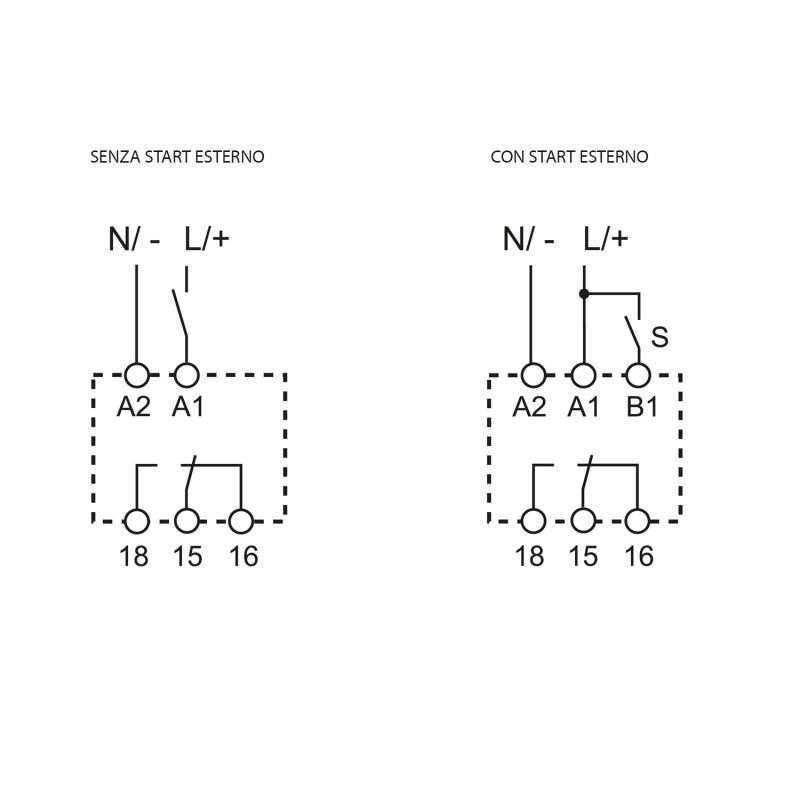

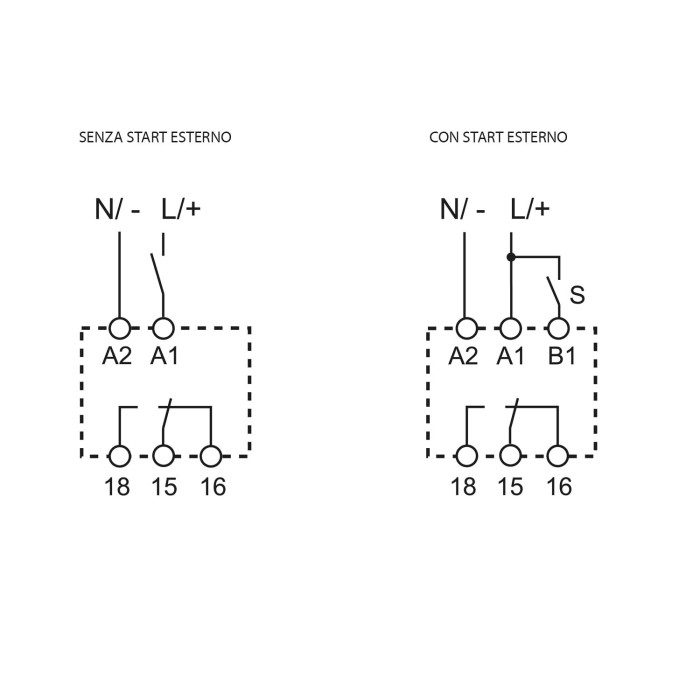

• Number of contacts: 1 exchange (1 RT)

• Contact rated current: 16 A

• Time adjustment range: 0.05 seconds to 10 days

• Number of functions: 8 selectable time functions (on-delay, pulse, cyclic, etc.)

• Setting precision: high, thanks to the graduated knob

• Mounting type: on 35 mm DIN rail (EN 60715 standard)

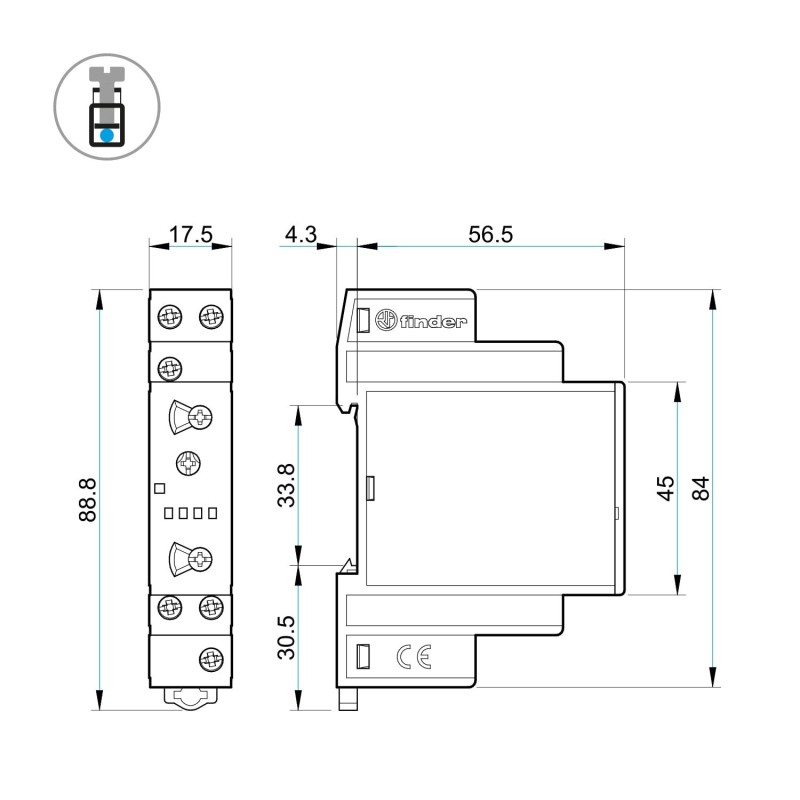

📏 Dimensions:

• Width: 17.5 mm (1 DIN module)

• Height: 85.6 mm

• Depth: 60.7 mm

🛡️ Additional Features:

• Double insulation between power circuit and output

• Status LED for displaying active function and power supply

• Operating temperature: -20 °C ÷ +60 °C

• Degree of protection: IP20 (housing), IP40 (front panel)

This relay is ideal for civil and industrial electrical panels, automation, lighting systems, ventilation and any application that requires versatile programmable timing.
