Thermal relay 7.5-11a 1saz211201r1043

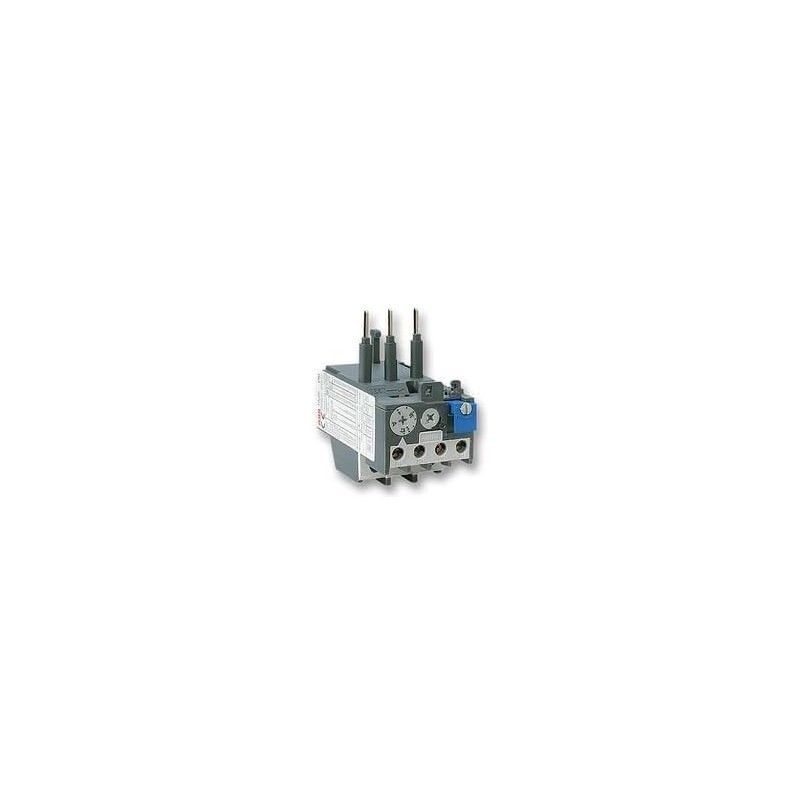

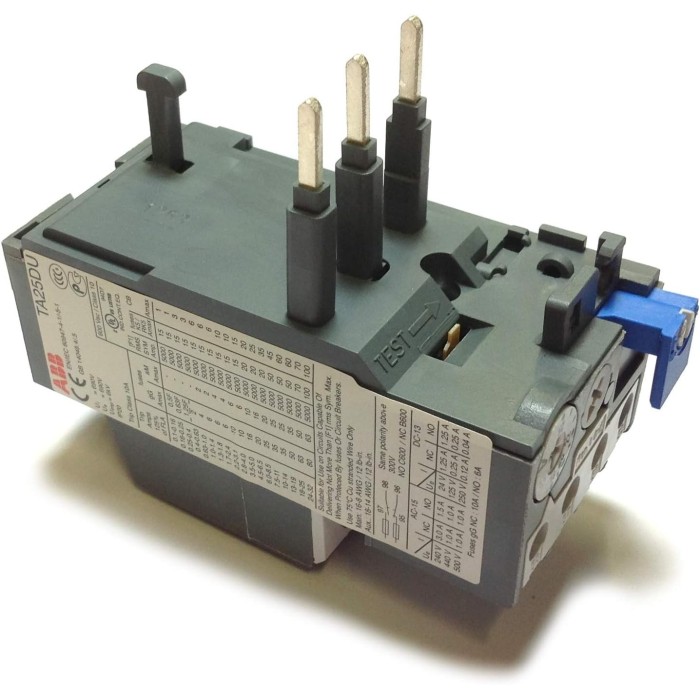

The ABB TA25DU-11 thermal relay (product code 1SAZ211201R1043 ) is an electromechanical device designed to protect electric motors from overloads and overheating.

Main features:

• Current regulation range: 7.5 - 11 A

• Rated insulation voltage (Ui): 690 V

• Intervention class: 10A

• Auxiliary contacts: 1 normally open (NO) and 1 normally closed (NC)

• Compatibility: Designed to fit ABB contactors of the A9, A12, A16, A26, A30 and A40 series

• Operating temperature: -25°C to +55°C

• Degree of protection: IP20

• Compliance Standard: IEC/EN 60947-4-1

This relay provides reliable protection for electric motors, ensuring safe operation and extending the life of the equipment.
