Daily time switch without power reserve ats-1

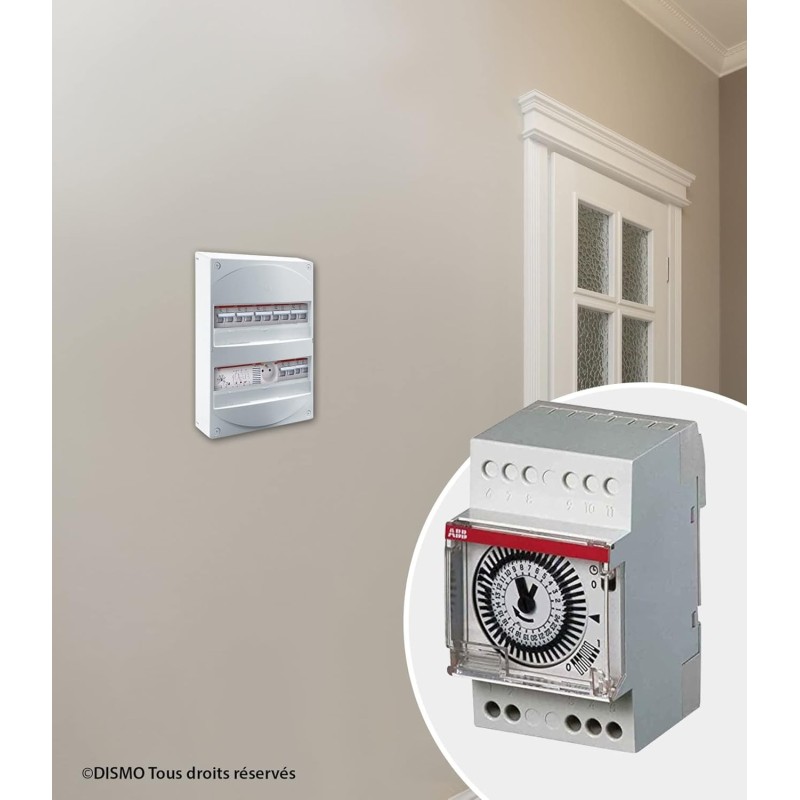

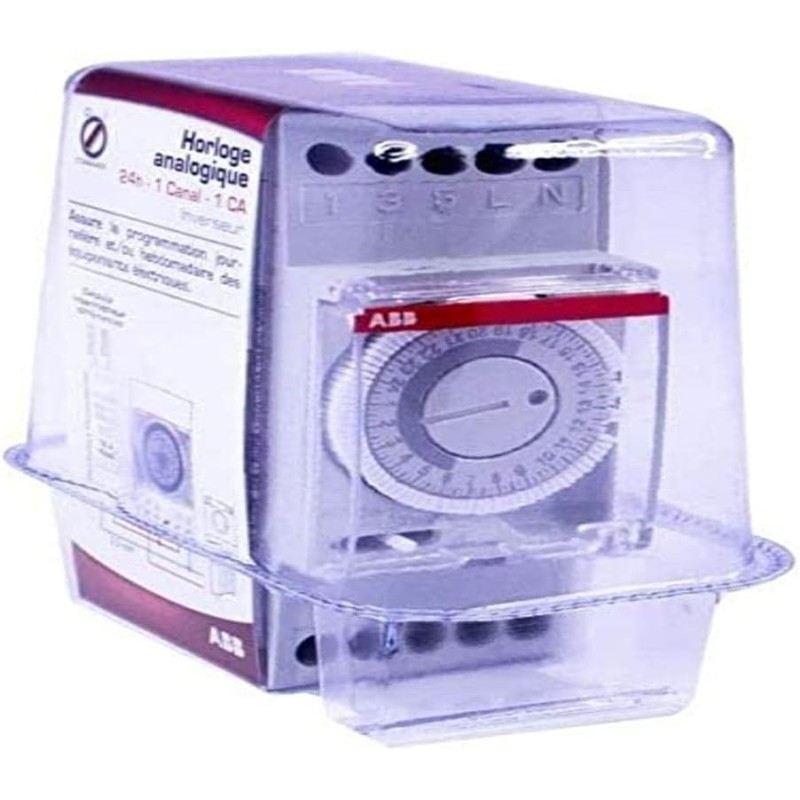

ATS-1 Daily Time Switch (Without Power Reserve)

The ATS-1 daily time switch is designed for the timed management and control of electrical loads. This device allows you to easily and precisely set the switching on and off of electrical equipment based on a daily time program. Ideal for domestic and commercial applications, the ATS-1 offers an economical and efficient solution without the need for a backup battery.

Main features:

• Daily Schedule :

  • Allows you to configure on and off times on a daily basis, with a resolution of 15 minutes.

• Contacts :

  • It has 1 normally open (NO) contact , with a capacity of up to 16 A , for the direct control of electrical devices such as lights, fans or heating systems.

• Diet :

  • It works with a voltage of 230 V AC at 50/60 Hz .

• Installation :

  • Easy mounting on 35 mm DIN rail , taking up only 1 DIN module .

• Materials and Safety :

  • Made of high quality materials to ensure durability and reliability, the device has an IP20 protection rating, suitable for indoor installation.

Advantages :

• Easy Programming :

  • Programming is done via a dial with riders, allowing for quick configuration of activation and deactivation times.

• No maintenance required :

  • Since the device has no power reserve, there is no need to worry about replacing batteries, simplifying maintenance.

• Reliability :

  • It ensures precise control of systems and equipment without the need for complex interventions.

Typical Applications :

• Light Control : For external or internal lighting in residential and commercial environments.

• Irrigation systems : for the automatic activation and deactivation of irrigation systems.

• Underfloor heating : for timed management of heating.

• Industrial equipment : for the automatic control of machinery and devices according to pre-set schedules.

Note : Since the device has no power reserve, it will not retain its programming in the event of a power failure. It is therefore suitable for situations where a temporary power failure does not compromise the device's function.
