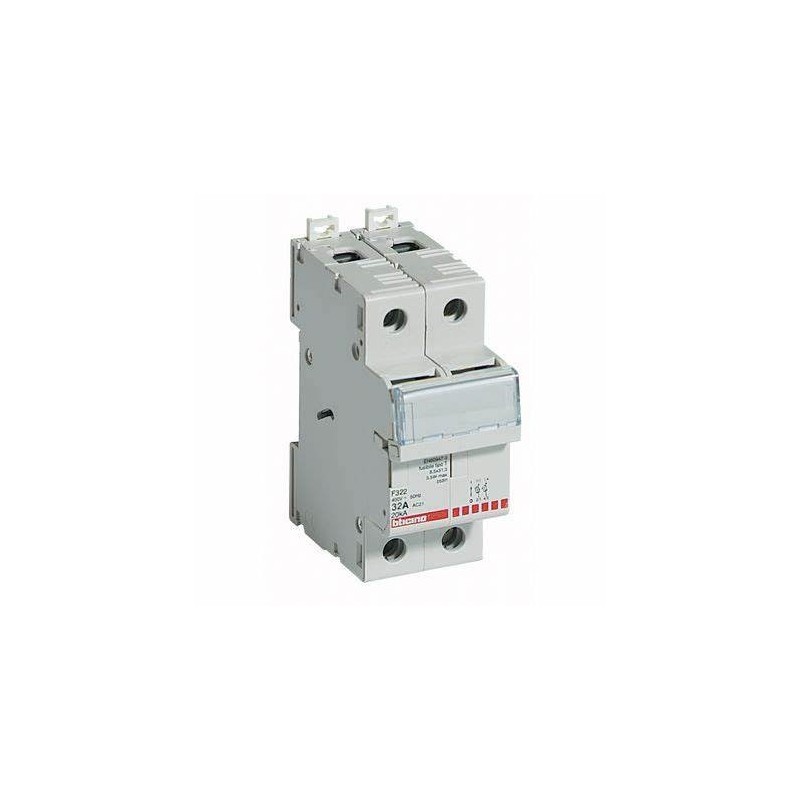

Fuse holder disconnector 2p - 32a - 500v - type f fuses (10.3x38 mm) - 2 modules

Model : F322 – bipolar fuse disconnector

Rated current (In) : 32 A

Rated voltage : 500 V AC

Poles : 2P (phase + neutral)

Supported fuses : type F, size 10.3×38 mm

DIN rail modules : 2 modules (≈ 35.6 mm)

Degree of protection : IP20, for installation inside electrical panels

Dimensions : Height 83 mm × Width 35.6 mm × Depth 73 mm

Maximum conductor cross-section : up to 25 mm² (phase), 35 mm² (neutral)

Standard : compliant with CEI EN 60947‑3 / IEC 269‑3‑1 for switch disconnectors
