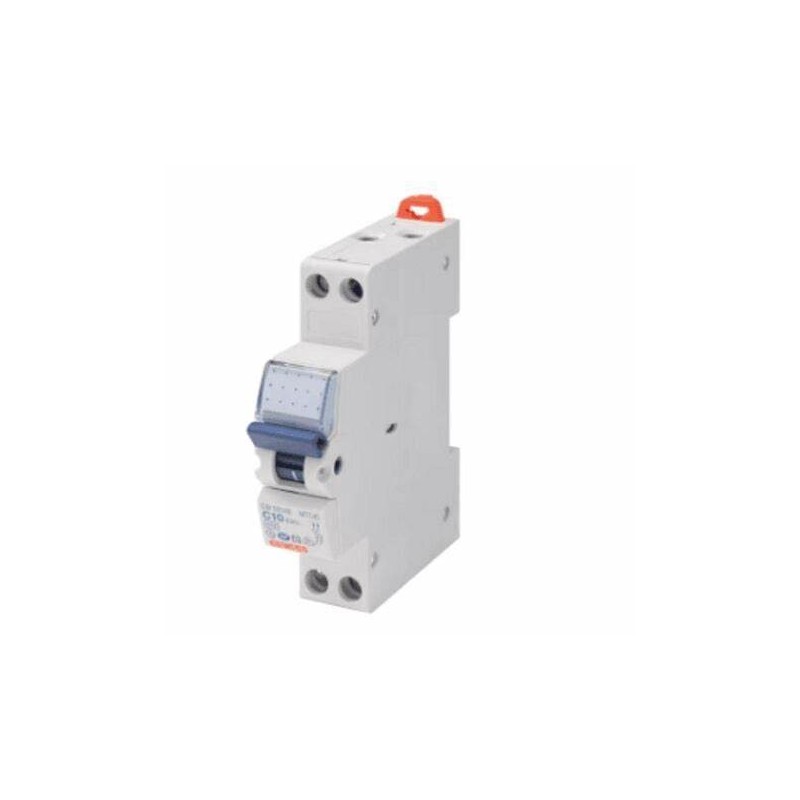

Compact circuit breaker 2p c10 4.5ka 1m

Series : 90 MCB

Type : MTC 45

Number of poles : 2P

Number of modules : 1 (DIN EN 50022 standard)

Rated current : 10A

Intervention curve : C

Rated voltage : 230 V

Breaking power :

• 4.5 kA according to EN 60898

• 6 kA according to EN 60947-2

Insulation voltage (Ui) : 500 V

Rated impulse withstand voltage (Uimp) : 4 kV

Operating temperature : -25°C to +60°C

Degree of protection : IP20

Electrical life : 10,000 operations

Mechanical life : 20,000 operations
