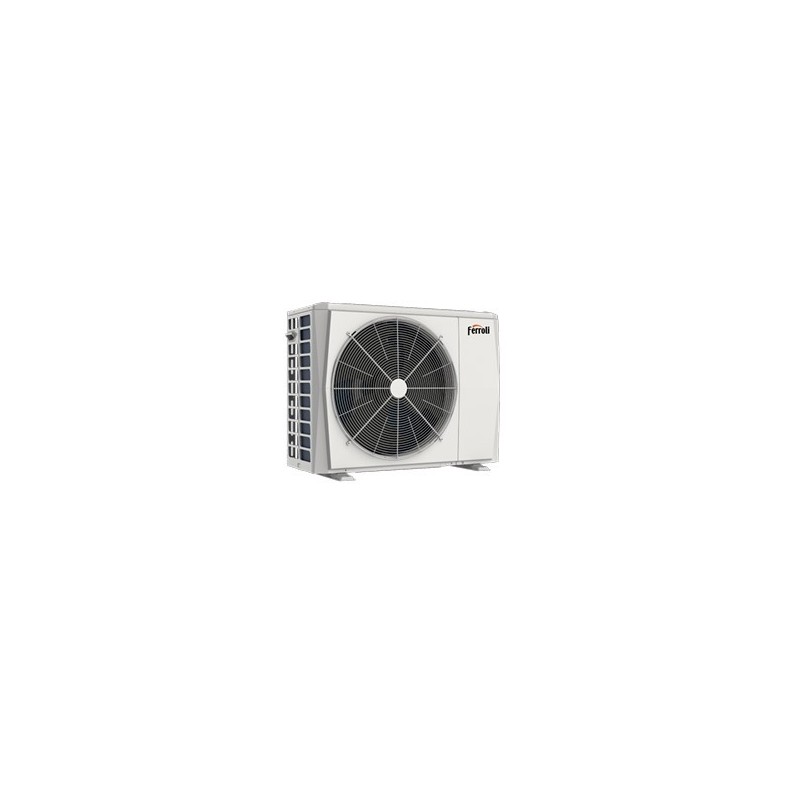

Ferroli Omnia UE 3.2 – External Unit Heat Pump 10 kW Inverter R32 (hybrid to be combined with internal unit)

The 10 kW Ferroli Omnia M 3.2 Air-Water Heat Pump represents an advanced solution for heating, cooling and producing domestic hot water in residential settings. Thanks to its monoblock technology and the use of R32 refrigerant gas, it offers high energy efficiency and respect for the environment.

🔧 Main Features

• Model : Omnia M 3.2

• Nominal thermal power : 10 kW

• Type : Reversible monoblock air-water heat pump

• Refrigerant gas : R32, low environmental impact

• Compressor : Twin Rotary with DC Inverter technology

• Power supply : Single phase 230V – 50Hz

• Energy class :

  • A+++ (low temperature, 35°C)

  • A++ (medium temperature, 55°C)

• Maximum temperature of water produced : up to 60°C

• Functions : Heating, cooling and production of domestic hot water (DHW)

📐 Dimensions and Weight

• Width : 1385 mm

• Height : 865 mm

• Depth : 526 mm

• Weight : 105 kg

⚙️ Technical Specifications

• Thermal power (A7/W35) : 12.1 kW

• Power consumption (A7/W35) : 2.44 kW

• COP (A7/W35) : 4.95

• Thermal power (A7/W45) : 12.3 kW

• Power consumption (A7/W45) : 3.32 kW

• COP (A7/W45) : 3.7

• Cooling capacity (A35/W18) : 12.0 kW

• Power consumption (A35/W18) : 3.04 kW

• EER (A35/W18) : 3.95

• Sound power level : 65 dB(A)

✅ Advanced Features

• Operating modes :

  • Heating and cooling with compressor frequency modulation

  • Fast ACS production

  • Programmable anti-legionella function

  • Silent mode with two levels of noise reduction

• Intelligent Control :

  • Management of integration or reserve electrical resistances

  • Control of two zones (one mixed and one direct)

  • Programming time slots and setpoints for Eco mode

• Frost protection : up to -20°C, thanks to integrated electrical resistances

🛠️ Integrated Components

• Stainless steel plate exchanger with antifreeze resistance

• Axial fans with brushless DC motor

• Low consumption circulator with brushless DC motor

• Water flow switch, automatic air vent, water pressure gauge, expansion vessel, safety valve and Y-shaped water filter

• Thermally insulated hydraulic pipes

📦 Accessories Supplied as Standard

• Probe for integration with other heat sources

• Remote control (maximum length 50 m, menu in 12 languages)

• Y-Filter

🏡 Recommended Apps

• Ideal for homes up to 100 m²

• Compatible with low temperature systems such as underfloor heating, fan coils and radiators

• Suitable for indirect production of DHW via external boiler (not included)
