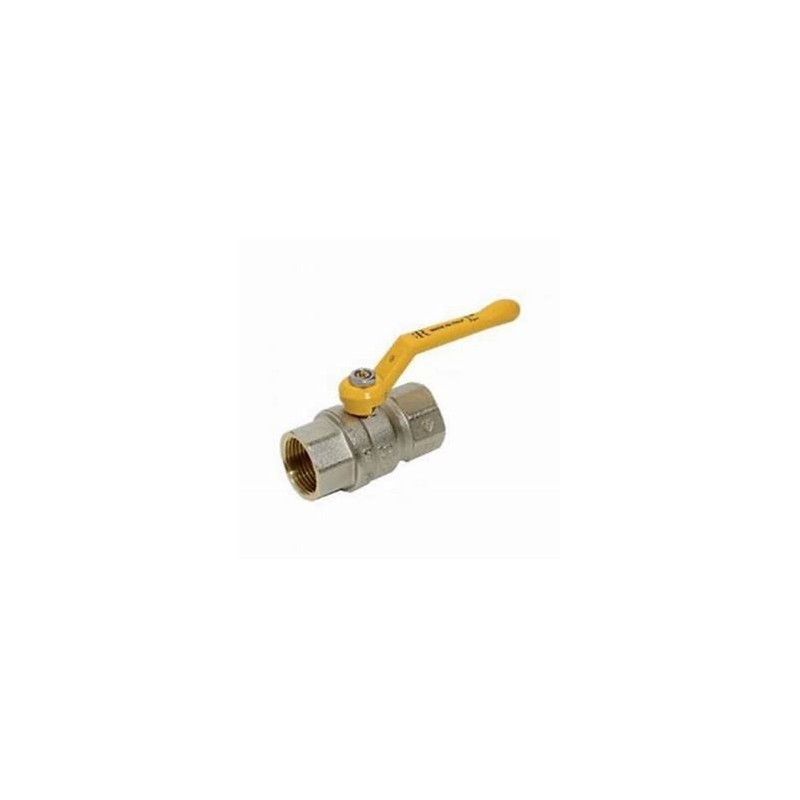

Cim 301/12 - 1/2 ball valve for water 1/2" fm

Full bore ball valve CIM 301/12 – 1/2" FM

The CIM 301/12 is a full bore ball valve designed to provide efficient and reliable fluid control in a wide range of plant applications. Featuring 1/2" female-male (FM) connections and an aluminum butterfly handle , it provides optimum flow management with minimal pressure drop .

Technical features:

• Model : CIM 301/12

• Valve Type : Ball, Full Bore

• Nominal size (DN) : 15 mm (1/2")

• Connections : Female-male thread (FM)

  • Female thread : ISO 7 - Rp

  • Male thread : ISO 228

• Body material : Brass compliant with EN 12165-CW617N-DW

• Handle : Aluminum butterfly

• Nominal pressure (PN) : PN 80 for sizes 1/4" ÷ 1/2"

• Operating temperature : -20°C to +150°C

• Certifications :

  • Product compliant with the requirements of the EN ISO 9001 standard

  • 100% tested according to EN 12266-1

Advantages:

• Reliability : Sturdy construction with high-quality materials for long-lasting durability.

• Efficiency : Full-bore design minimizes pressure drops.

• Versatility : Suitable for a wide range of plant applications.

• Ease of installation : Standardized connections for quick and easy assembly.

Applications:

• Heating systems

• Air conditioning systems

• Water and sanitation systems

• Compressed air systems

• Oil and petrol distribution networks

• Applications with saturated steam

• Transport of non-corrosive fluids in general
