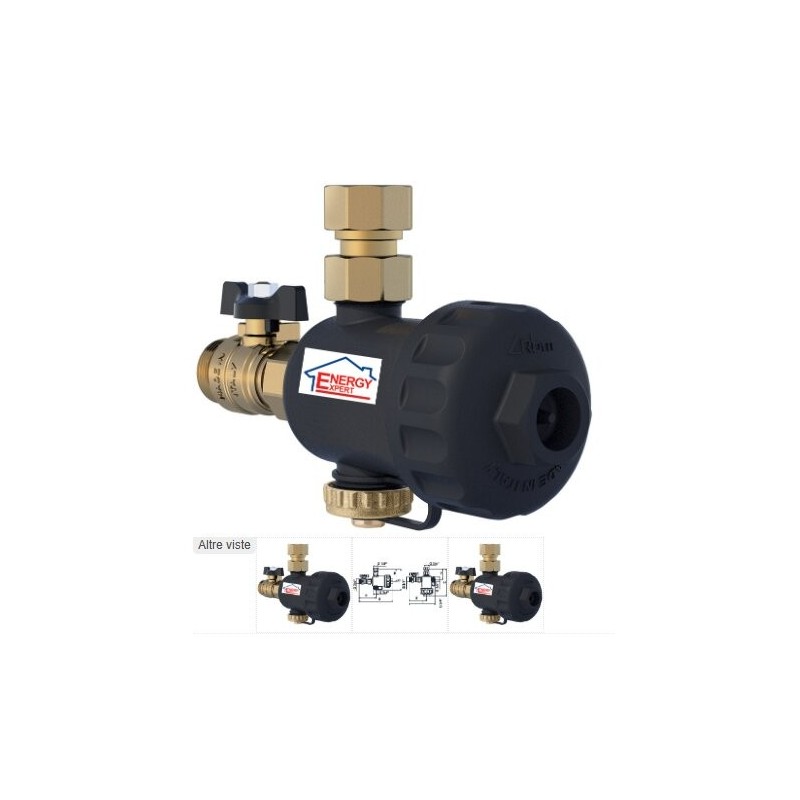

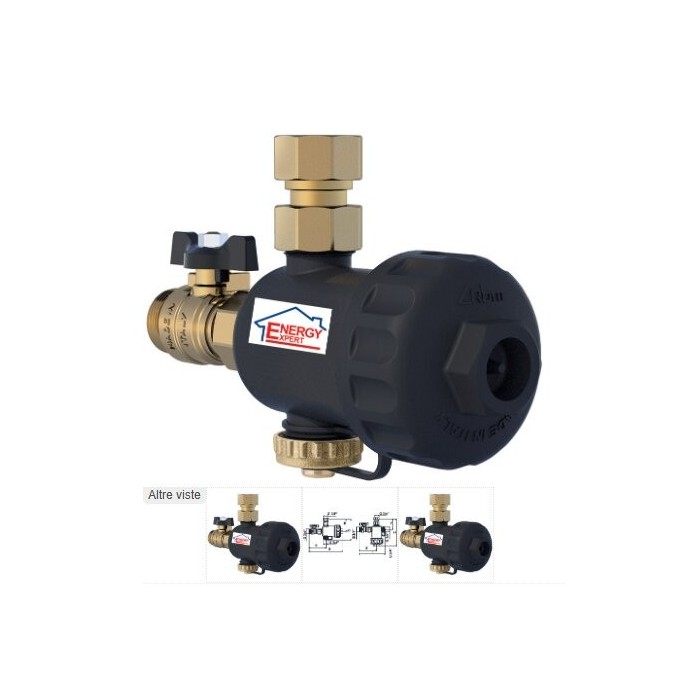

Lbc - Magnetic dirt filter

The magnetic dirt separator is a compact filter to be installed under the boiler, designed to protect the heating system from impurities and metal sludge. Equipped with a 11,000 Gauss neodymium magnet and a stainless steel filter cartridge, it guarantees effective separation of ferrous particles, extending the useful life of exchangers, circulators and boilers.

Technical features:

• Body and cap material : Durable polyamide

• Filter cartridge : Stainless steel – filtering capacity 800 µm

• Magnet : 11,000 Gauss Neodymium

• Connections : ¾”

• Installation : horizontal or vertical on the boiler return circuit

• Operating temperature : 0 – 90 °C

• Max pressure : 3 bar

Dimensions:

• Total height: 151.7 mm

• Width: 64 mm

• Depth (C): 112 mm

• Fitting height (f): 145.7 mm

• Fitting width (g): 58.7 mm

Ideal applications:

• Residential heating systems

• Wall mounted boiler protection

• Prevention of blockages by ferrous sludge
