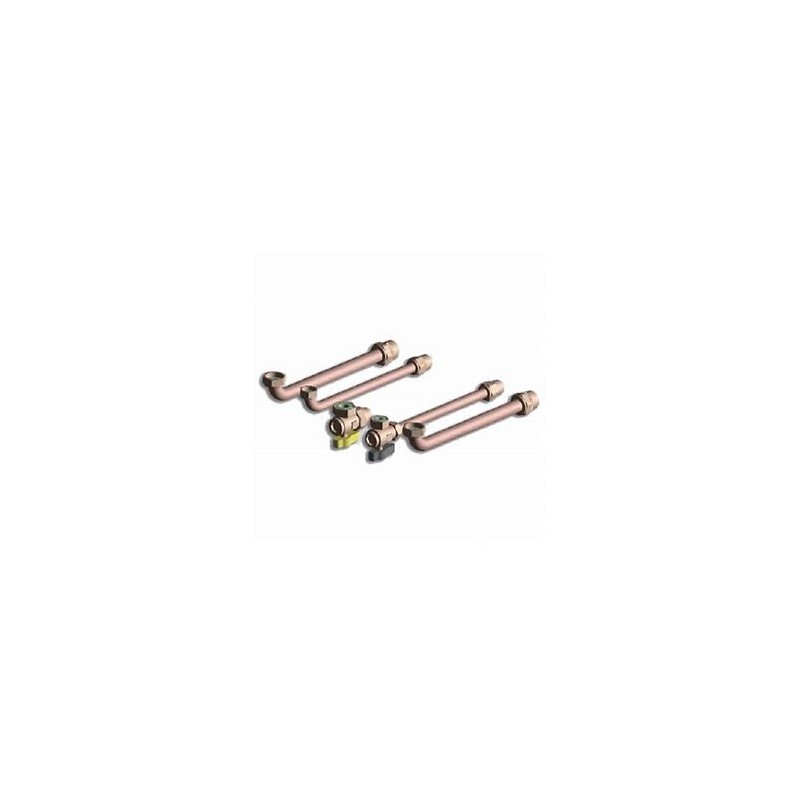

Hydraulic kit (pipes + 2 taps)

The Hydraulic Kit for the first installation of Baxi boilers is designed to facilitate the connection of the appliance to the hydraulic and gas system. This kit includes essential components to ensure correct and safe installation.

Kit components:

• Heating flow and return pipes (3/4”): Allow the heating circuit to be connected, ensuring adequate flow between the boiler and the system.

• Domestic hot water flow and return pipes (1/2”): Used for connecting domestic hot water, ensuring efficient hot water delivery.

• Gas connection ø18: Allows the safe connection of the gas line to the boiler, ensuring a stable and leak-free connection.

• 3/4” M gas tap: A 3/4” male tap for controlling the gas flow to the boiler, allowing for shut-off if necessary.

• 1/2” sanitary inlet tap: A 1/2” tap for controlling the incoming cold water, facilitating maintenance and possible isolation of the sanitary circuit.

Using this kit simplifies boiler installation, ensuring all connections are made with compatible, high-quality components. It is important to follow the manufacturer's guidelines and local regulations during installation to ensure safety and efficiency.

For further details and technical specifications, it is advisable to consult the official Baxi documentation or contact a qualified installer.
