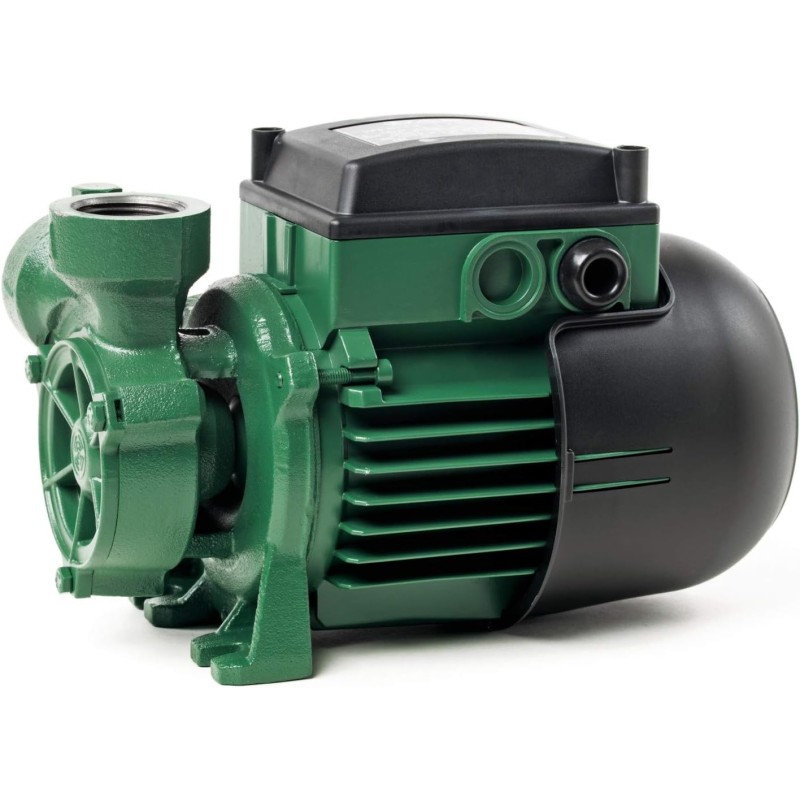

Peripheral Electric Pump "KPS30/16M" – DAB

Peripheral Electric Pump "KPS30/16M" – DAB

General Features

• Brand : DAB
• Model : KPS30/16M
• Color : Green
• Material : Cast iron
• Style : Peripheral type centrifugal pump
• Product Dimensions : 24.7cm (L) x 13.2cm (W) x 15.8cm (H)
• Item Weight : 5.5kg (11.02lbs)
• Power supply : Single-phase electric (220V) with cable
• Maximum flow rate : 30 litres per minute
• Global Trade Identification Number (GTIN) : 08059893045881
• Manufacturer : DAB

Technical Features

• Type : Peripheral centrifugal electric pump
• Power : HP 0.50
• Head : From 6 to 25 meters
• Flow rate : From 35 to 10 litres/minute depending on the head
• Connections : Suction and delivery 1”
• Impeller : Star-shaped brass
• Mechanical seal : Carbon/ceramic
• Pump body : Side suction, with cast iron support and brass shim disc
• Option on request : Available with bronze pump body and support

Applications

The DAB KPS30/16M peripheral electric pump is designed for domestic and light industrial applications. Its compact size and ability to generate high heads make it ideal for:

• Domestic water supply
• Small gardening (irrigation and garden maintenance)
• Emptying and filling of tanks
• Light industrial applications such as pressurised boiler feeding (anti-condensation)

Product Benefits

1. Compact and lightweight : Small size for quick and easy installation.
2. High head : Perfect for moving high pressure water over short distances.
3. Robustness and durability : High-quality materials such as cast iron and brass ensure high wear resistance.
4. Versatility : Suitable for both domestic and small industrial applications.
5. Efficiency : Optimal flow rate with reduced consumption thanks to the 0.5 HP motor.

Usage Specifications

• Installation : Easy fixing thanks to the compact design.
• Maintenance : Low maintenance requirements, thanks to the robustness of the materials.
• Safety : Single-phase electrical component for safe use in domestic and industrial environments.

Weight and Dimensions

• Total weight : 5.5 kg
• Dimensions : 24.7cm x 13.2cm x 15.8cm

Conclusion

The DAB KPS30/16M peripheral electric pump is an ideal choice for those looking for a compact, efficient and reliable pump for domestic and light industrial applications. Thanks to the high-quality materials and excellent performance, it offers a versatile solution for water supply, gardening and pressure systems, ensuring robustness and long life.
