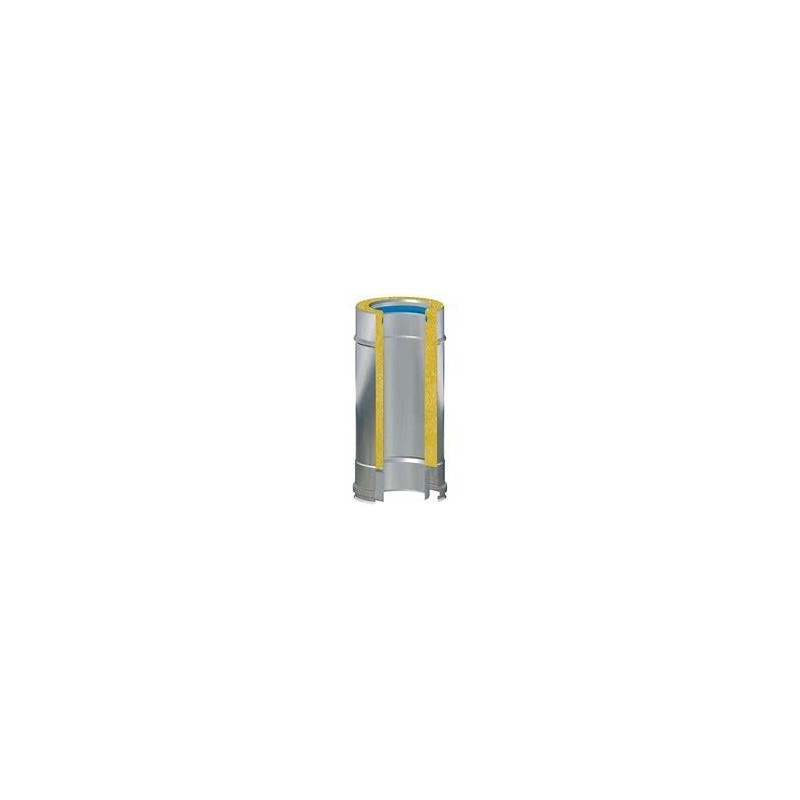

Linear module h. 1000 eurostar mi - i

The Linear Module H. 1000 of the Eurostar MI series is an essential component for the construction of stainless steel flue pipes. Produced by Polymaxacciai, this single-wall pipe is designed to ensure efficiency and safety in flue gas systems.

Main features:

• Material: Made of AISI 316L stainless steel, compliant with EN 10088-1 DIN 1.4401, it offers high resistance to corrosion and durability over time.

• Dimensions: Length of 1000 mm

• Wall thickness: 0.4mm, ensuring lightness and strength.

• Maximum Fluid Temperature: Supports temperatures up to 600°C, making it suitable for high temperature applications.

• Certifications: CE marking according to EU regulation n° 305/2011, compliant with UNI EN 1856/1 and 1856/2 standards, ensuring high quality and safety standards.

Applications:

Ideal for the construction of vertical chimneys, smoke channels or horizontal paths in heating systems, both domestic and industrial. Its versatility makes it suitable for the evacuation of fumes in different types of systems.

Advantages:

• Easy installation: Thanks to the male/female connection system with silicone gasket, assembly is quick and safe.

• Design flexibility: Available in a wide range of diameters and finishes, including the possibility of painting in any RAL colour, to meet specific aesthetic and functional needs.

• Reliability: The quality of the materials and compliance with regulations guarantee a safe and long-lasting product.

Notes:

• Gasket: For operating temperatures below 200°C, the use of a gasket is recommended; for temperatures up to 600°C, use without a gasket is recommended.

• Finishes: On request, available with satin finish (thickness 8/10 mm, AISI 316 L BA) for particular aesthetic needs.
