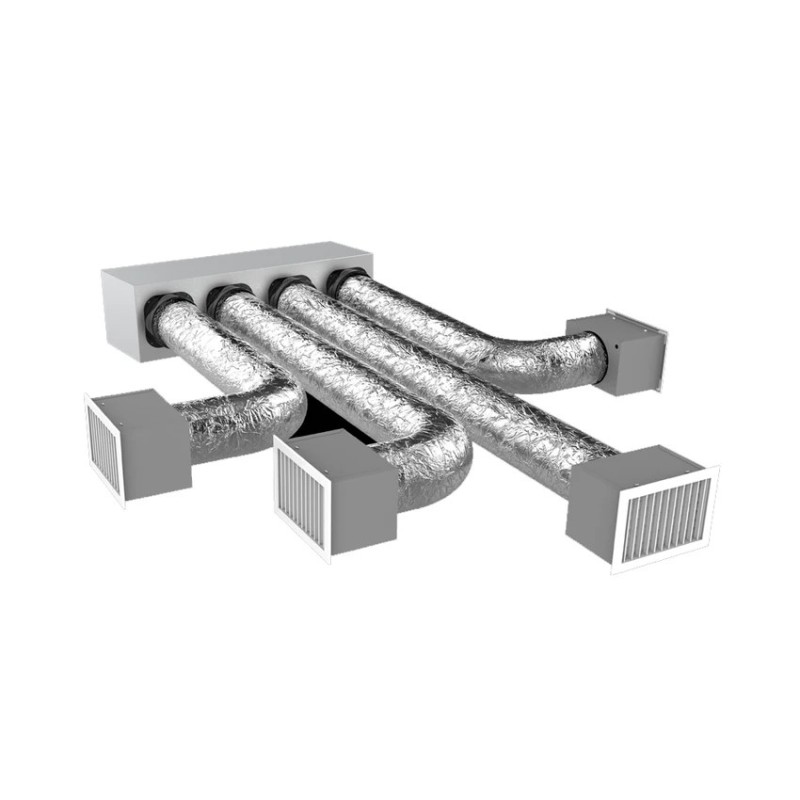

Quick kit 4 zones 150, sheet metal plenum

The Svelto 4 Zone Ø150 Kit with Sheet Metal Plenum is a complete solution designed to optimise the distribution of air produced by ducted internal units, ensuring efficient air conditioning in residential and commercial environments.

Main features:

• Insulated sheet metal plenum: Made to measure for the internal unit, it ensures effective thermal insulation and uniform air distribution.
• Four Ø150 mm outlets: Allow air to be channelled towards different areas, improving environmental comfort.
• Adjustable air outlet vents: In white painted aluminium, with installation hole 300x150 mm and external dimensions 332x182 mm, equipped with adjustable fins for optimal direction of the air flow.
• Insulated plenums for vents: With rear connection for 332x182 mm vents, they facilitate installation and integration into the system.
• Calibration dampers: Allow for precise regulation of the air flow in each zone, ensuring optimal balance.
• Insulated flexible hose: 10 metres of double-walled insulated aluminium flexible hose Ø150 mm, for an efficient connection between plenum and vents.
• Return grille with filter: In white painted aluminium, with 600x400 mm installation hole and external dimensions 632x432 mm, equipped with 600x400 mm filter to ensure air quality.
• Mounting accessories: Including plenum collars and hose clamps Ø140-160 mm, for a safe and professional installation.

Advantages:

• Easy Installation: The kit provides all the necessary accessories, reducing assembly time and simplifying item management.
• Universal compatibility: Suitable for various ducted units on the market, thanks to the possibility of customization on request.
• Energy efficiency: Insulation of the plenum and pipes minimizes heat loss, improving system efficiency.
• Personalized comfort: Adjustable vents and calibration dampers allow you to adapt the airflow to the specific needs of each room.
