Teceprofil Washbasin Module – Installation Height 1120 mm

Teceprofil Washbasin Module – Installation Height 1120 mm

The Teceprofil Washbasin Module is an innovative and versatile solution for installing washbasins in modern environments. Designed to ensure robustness, functionality and adaptability, it is ideal for fixing on Teceprofil profiled ducts or for mounting on plasterboard walls and metal or wooden upright structures, including corner configurations.

Main Features :

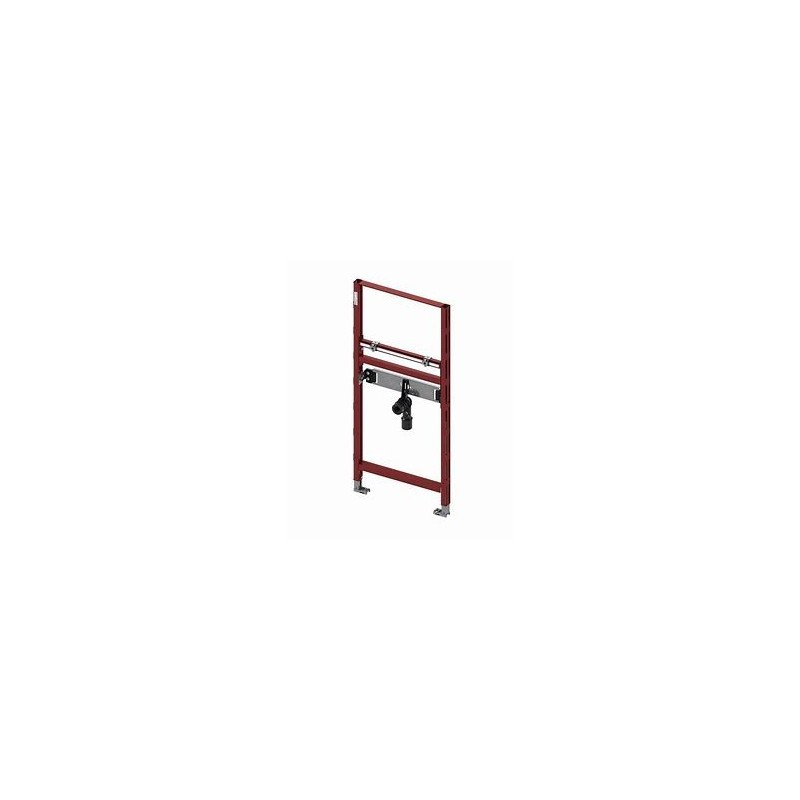

• Self-supporting frame :
  Made with powder coated surface, it ensures corrosion resistance and long lasting durability.

• Adjustable Supports :

  • Adaptability to the floor structure with an adjustable range of 0-200 mm .
  • Ideal to adapt to different heights and installation conditions.

• Sink Fixing System :

  • M10 retaining bolts for stable and secure fixing.
  • Height and sideways adjustable distance from 30 to 400 mm for perfect adaptability of the sink.

• Optimized Acoustics :
  The tap fixing crosspiece is designed for acoustic decoupling , minimising noise during use.

• Tap center distance :
  Equipped with adjustable centre distances of 80, 120, 150 and 200 mm , to fix different configurations of wall discs and taps.

• Connecting Elbow :
  Supplied with a DN 40/50 connecting elbow and NW 30/50 rubber sleeve, complete with gasket.

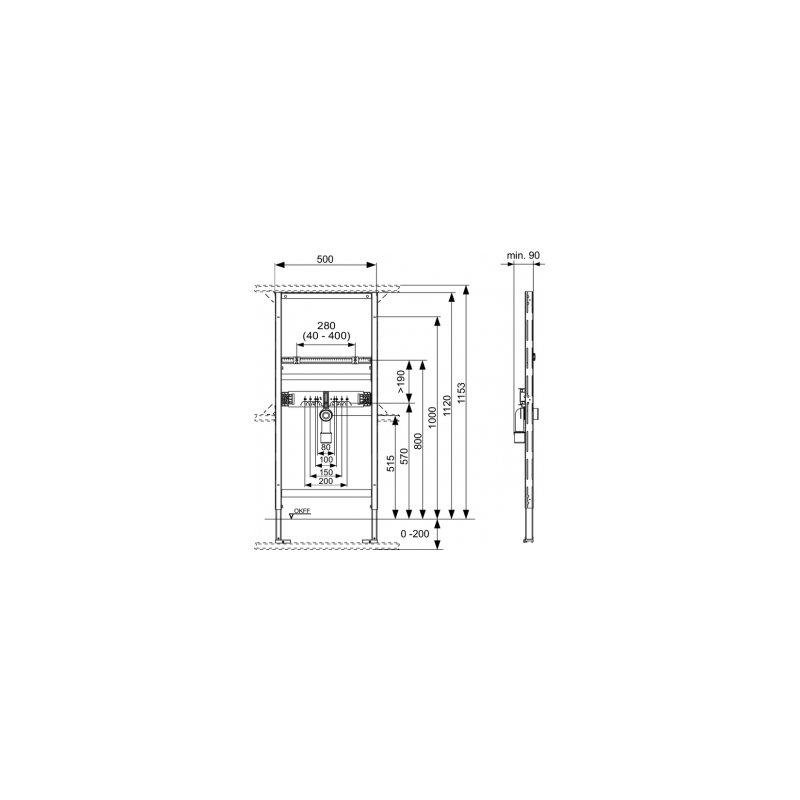

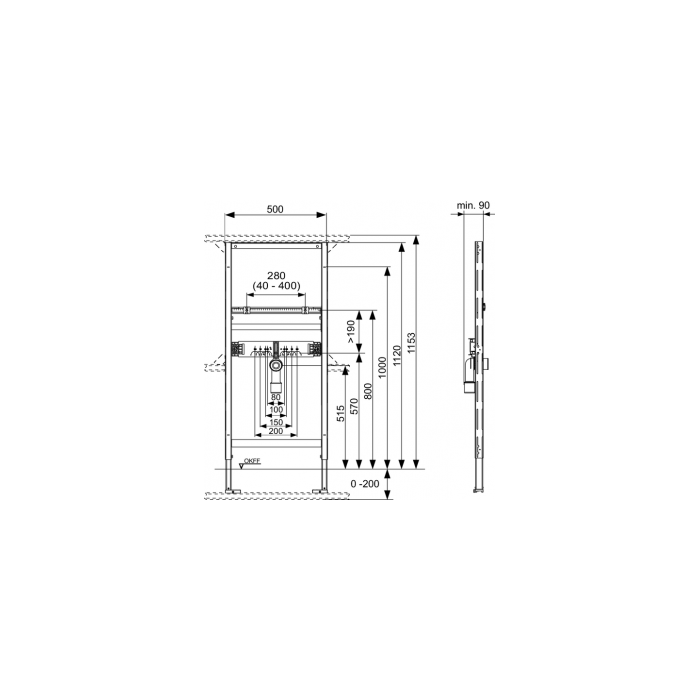

• Compact Size :

  • Height: 1120 mm
  • Width: 500 mm
  • Depth: 140 mm

Applications :

The module is suitable for:

• Installations in stud walls (plasterboard, metal, wood).
• Corner modules , perfect for small spaces or particular architectural configurations.
• Domestic, commercial or industrial environments.

Accessories to be ordered separately :

To complete the installation of the sink module, you need to purchase separately:

1. Teceflex wall discs :

   • 16x1/2” (code: 9021015 )
   • Tecelogo 16x1/2” (code: 9021020 )
   • 1/2"x1/2" (code: 9021017 )

2. Fixing for individual assembly :
   Suitable for installation on plasterboard, corner or wooden studs.
