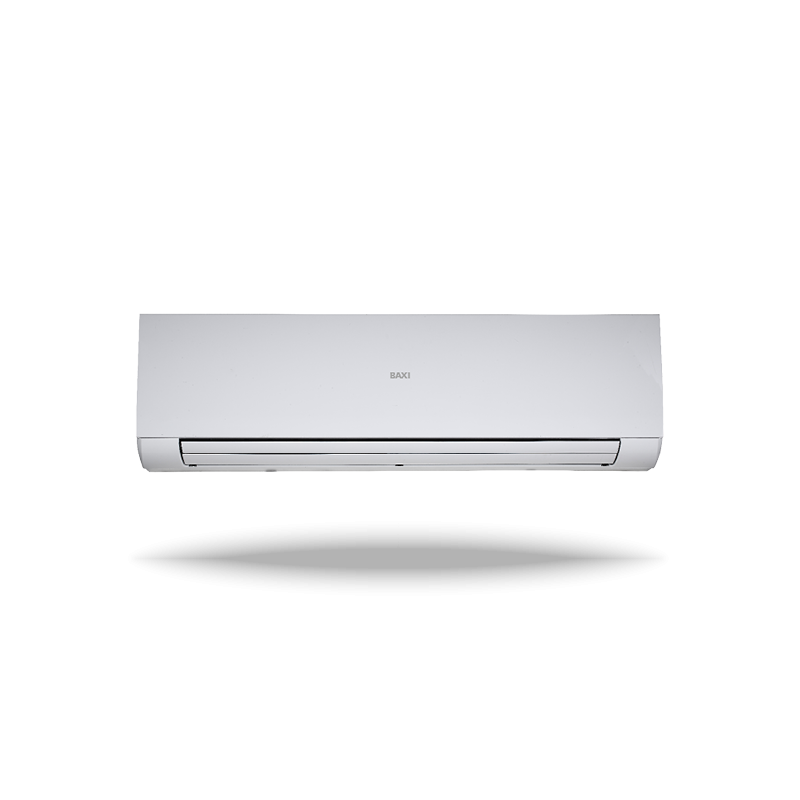

Iqwh30 f. hydronic wall-mounted fan coil unit with max power of 4.5kw

The Baxi IQWH30 is a wall-mounted hydronic fan coil unit designed to provide heating and cooling in residential and commercial environments. Here are its main features:

Main features

• Elegant and compact design : easily integrates into different living and working contexts.
• Easy installation and maintenance : Designed for simple and convenient management.
• Silent operation : ensures acoustic comfort thanks to a sound pressure level of 37 dB(A) at medium speed.
• Complete control : Equipped with infrared remote control for easy management of functions.
• 2-pipe system : suitable for systems with a single network for hot and cold water.
• Removable and washable air filter : for easy maintenance and better air quality.

Technical specifications

• Thermal power : 4.3 kW (high speed) with inlet/outlet water temperature of 45/40°C.
• Cooling capacity : 3.81 kW (high speed) with inlet air temperature of 27°C DB/19°C WB and inlet/outlet water at 7/12°C.
• Air flow : 825 m³/h (high speed).
• Dimensions (LxHxD) : 915 x 290 x 233 mm.
• Net weight : 13.3 kg.
• Power supply : 230V/1Ph/50Hz.
