Power optimizer p485 for solar modules up to 485 watts

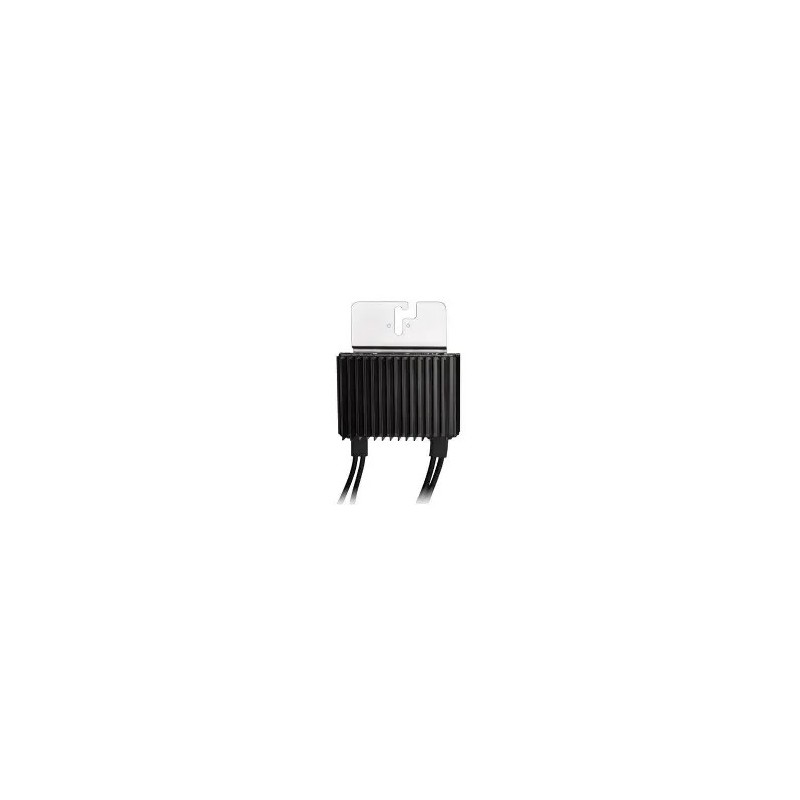

SolarEdge P485 Power Optimizer – for PV modules up to 485W

The SolarEdge P485 Power Optimizer is an advanced electronic device designed to maximize the energy production of PV modules in SolarEdge-powered systems. This model is ideal for solar panels up to 485 watts nominal power, providing individual module-level control to improve overall system efficiency.

Main features:

• Compatibility : Designed for PV modules up to 485W, with a maximum input voltage of 125V.

• Input voltage range (Vmp) : 12.5 – 125 Vdc.

• Maximum input current (Isc) : 14 A.

• Module-level optimization : Each panel works at the maximum power point tracker (MPPT) independently from the others, improving performance even in the presence of shading, different orientations or mismatches between panels.

• Advanced Safety : Automatic reduction of DC voltage at module level when the inverter or grid is turned off, according to the latest safety standards.

• Real-time Monitoring : Compatible with the SolarEdge platform for remote monitoring of the performance of each individual module.

• Simplified installation : Quick connection via MC4 connectors and automatic identification by the SolarEdge inverter.

Technical specifications:

• Model : P485-4RM4MRM

• Max power compatible module : 485 W

• Output voltage (nominal) : 1 V

• Compact size and robust structure , ideal for residential, commercial or industrial installations.

• Certifications : Complies with the most stringent international quality and safety standards (UL, IEC, CE, etc.)

Applications:

Perfect for residential or commercial PV systems where panel optimization and module-level monitoring are required, or in situations where there is partial shading, different orientations or maximum security is required.
