DC Power Supply 12W 500mA

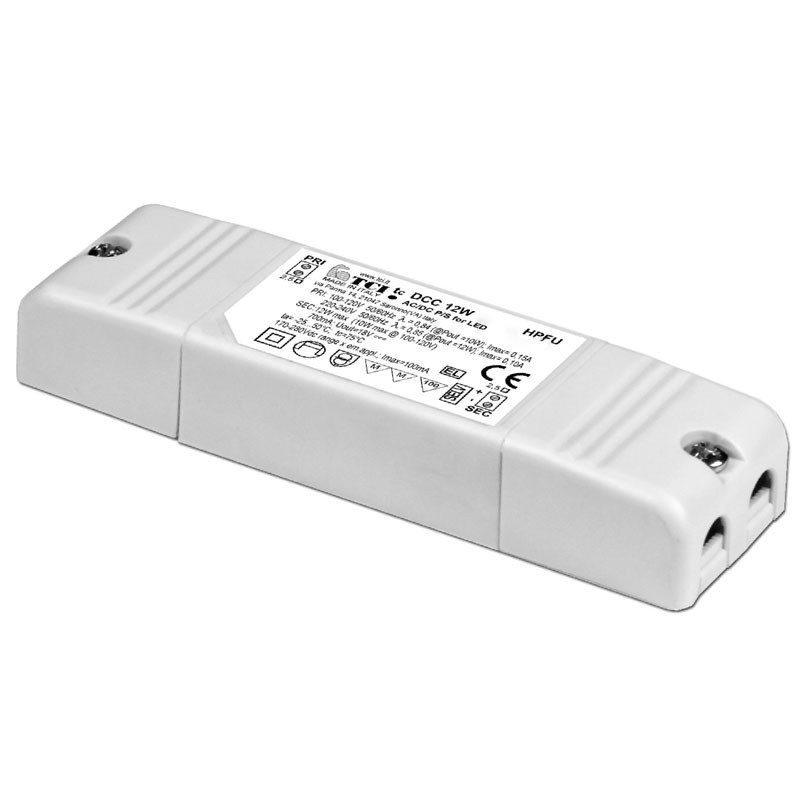

The TCI 122356 model is a 12W 500mA constant current electronic LED power supply, designed for indoor use with IP20 protection rating. It is ideal for professional lighting applications, such as stage lights, studios or similar environments.

Technical Specifications

• Input voltage : 100–240 V AC

• Output current : 500mA

• Output power : 12 W (220–240 V AC)

• Output voltage : 2–24 V DC

• Degree of protection : IP20 (indoor use)

• Dimensions : 115 x 19 x 34 mm

• Insulation class : Class II

• Material : Plastic

• Not dimmable : No

• Approvals : CE, ENEC, UL (Class 2), KEMAKEUR, RCM, CCC, EAC, UKCA

• Protection : Thermal, short circuit, overload, extra-voltage network
