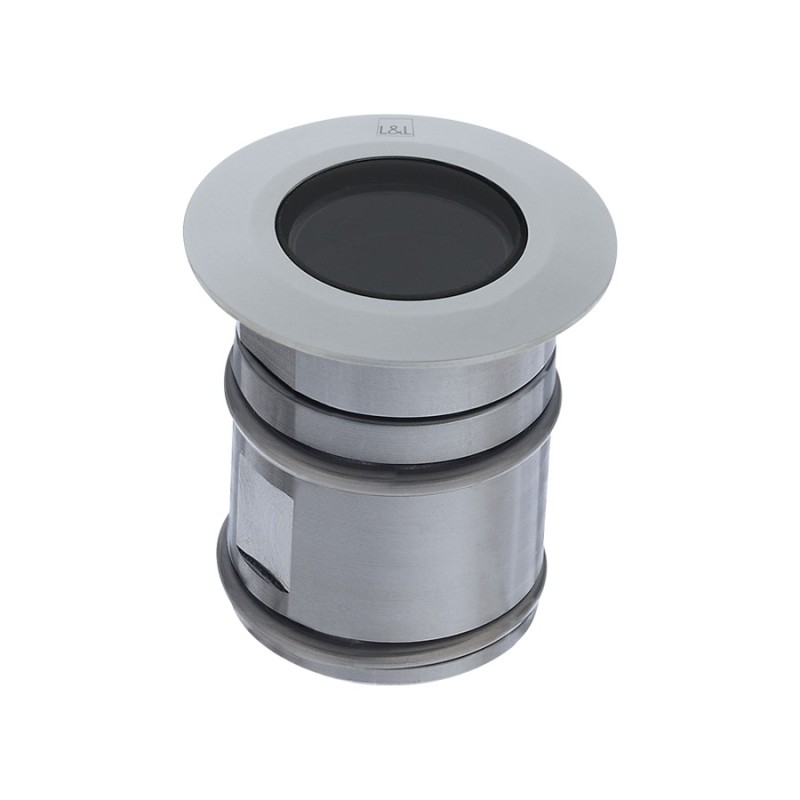

Bright 1.6 - Outdoor recessed, Code: CB16001DI blue led

Bright 1.6 - Outdoor Recessed, Code: CB16001DI

The Bright 1.6 is a high quality outdoor recessed luminaire designed for reliable and durable lighting. This product is walkable and suitable for installation in ceilings, walls and floors, but is not intended for use in submersible pools or fountains. With a compact design and advanced features, it is ideal for illuminating paths, outdoor spaces and architectural environments, ensuring high protection against water infiltration and exceptional impact resistance.

Main features:

• Power and Supply : With a power consumption of only 2W and 24Vdc power supply, the Bright 1.6 offers energy efficient lighting. The power supply is not included and must be purchased separately.

• LED and Performance : The product is equipped with 1 power LED with an average life of 60,000 hours (L90 B10, Ta 25°C), ensuring long-lasting lighting. The LED emits blue light with a color temperature of 3000K, generating a luminous flux of 195 lumens at the source and 127 lumens emitted (with diffused optics and 21° angle).

• Materials and Design : Made of AISI316L stainless steel, the body and the ring ensure high resistance to corrosion. The tempered acid-etched glass of the screen protects the light source and ensures uniform light distribution. The device has a compact design with dimensions Ø35x52 mm and a recessed hole of Ø30 mm .

• Protection Rating : The Bright 1.6 has an IP65/IP68 protection rating, making it highly resistant to water and dust. It also has an IK10 impact resistance rating, ensuring maximum mechanical protection. It is walkable, but not driveable.

• IPS Protection System : The innovative Intelligent Protection System (IPS) protects the device from water infiltration caused by incorrect cable connections for outdoor applications. The patented system also offers electrical protection against reverse polarity, hotplugging, ESD and overvoltage.

• Casambi Management : Light control is integrated with Casambi technology, which allows you to manage lighting via smartphone app, ensuring intuitive and smart control.

Technical Data:

• Power consumption : 2W
• Power supply : 24Vdc (power supply not included)
• Source flux : 195 lm
• Emitted flux : 127 lm (21°)
• Number and type of LEDs : 1 power LED
• LED life : 60,000h (L90 B10, Ta 25°C)
• LED Color : Blue
• Degree of protection : IP65/IP68
• Resistance level : IK10
• Energy consumption class : F (in accordance with EU 2019/2015)
• Operating temperature : -20°C — +45°C
• Maximum appliance temperature : 50°C (Ta 25°C)
• Dimensions : Ø35x52 mm
• Mounting hole : Ø30 mm
• Technical volume for dissipation : Ø80x100 mm
• Weight : 200 g
• Glow Wire Test : 960°C
• Insulation class : Class III
• Optional accessories : Formwork (WC0202), Fixing spring (WG0301)

Usage and Installation:

The Bright 1.6 is designed to be recessed into ceilings, walls or floors. Thanks to its robust construction and IP65/IP68 protection, it is perfect for outdoor environments, ensuring durability and safety. The device is easily managed via the Casambi app for smart lighting control.
