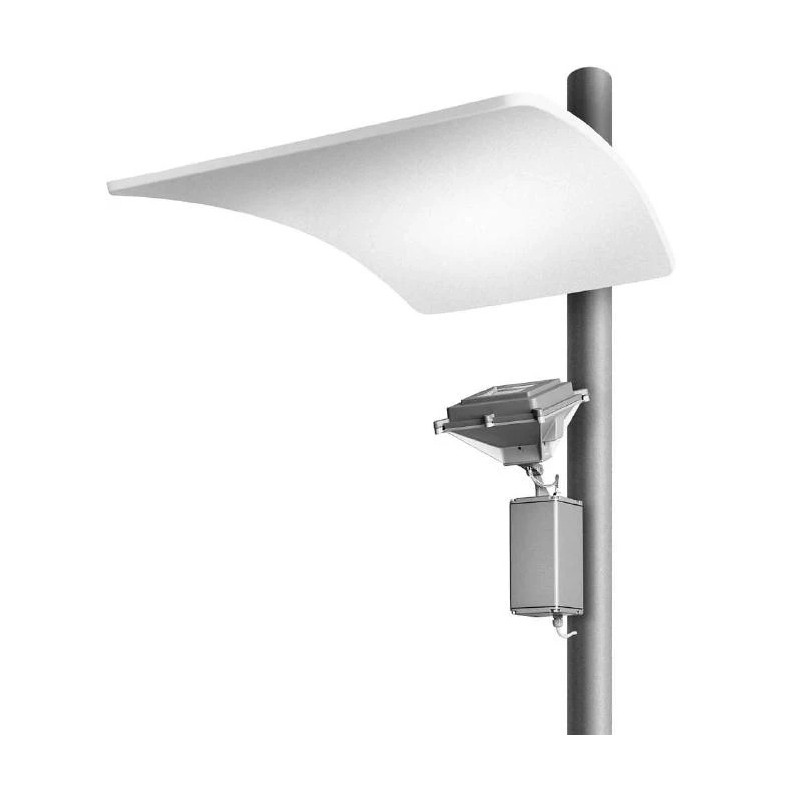

MiniNuvola - Indirect Outdoor Lighting System, 150W Metal Halide, RX7s Socket, Wall Mounting

MiniNuvola - Indirect Outdoor Lighting System, 150W Metal Halide, RX7s Socket, Wall Mounting (Art. 3.7741.015.0 )

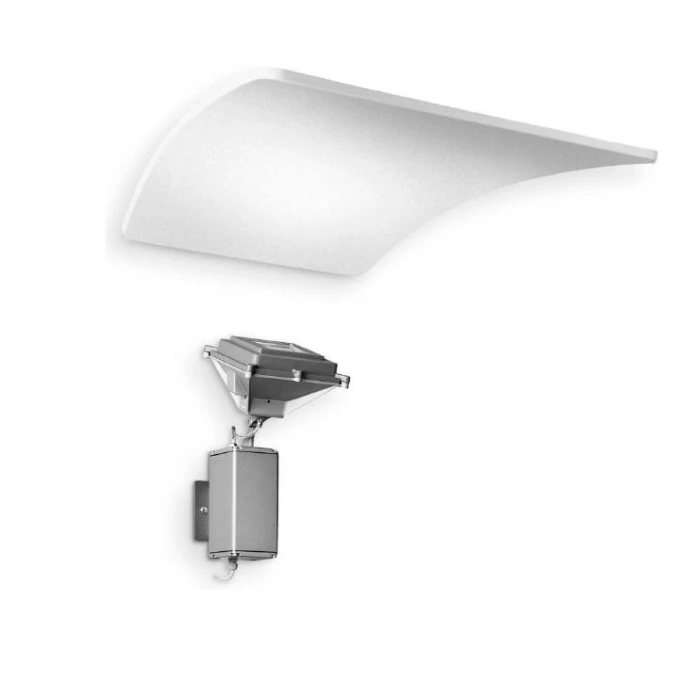

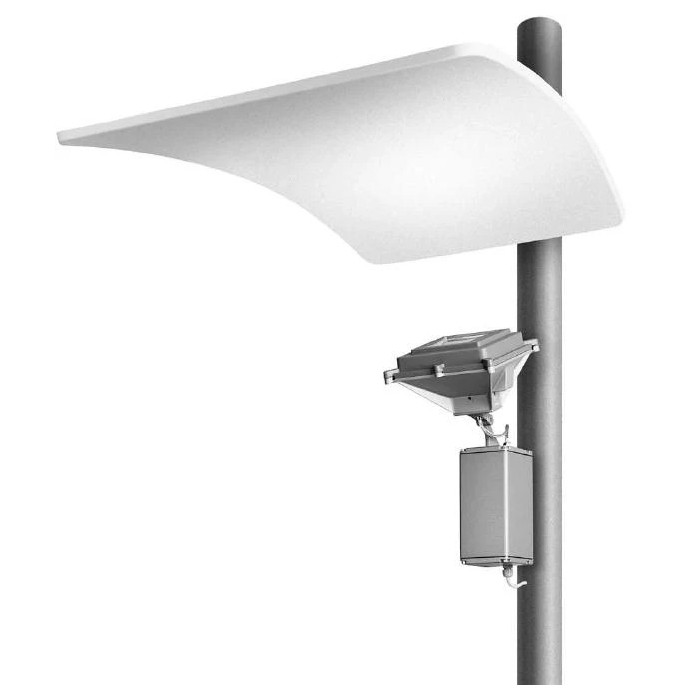

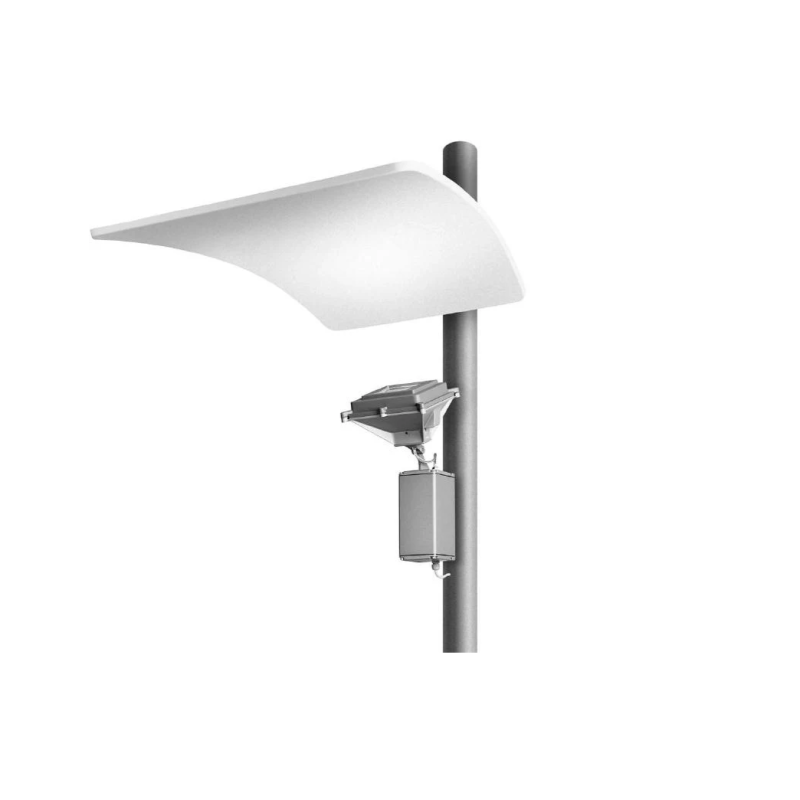

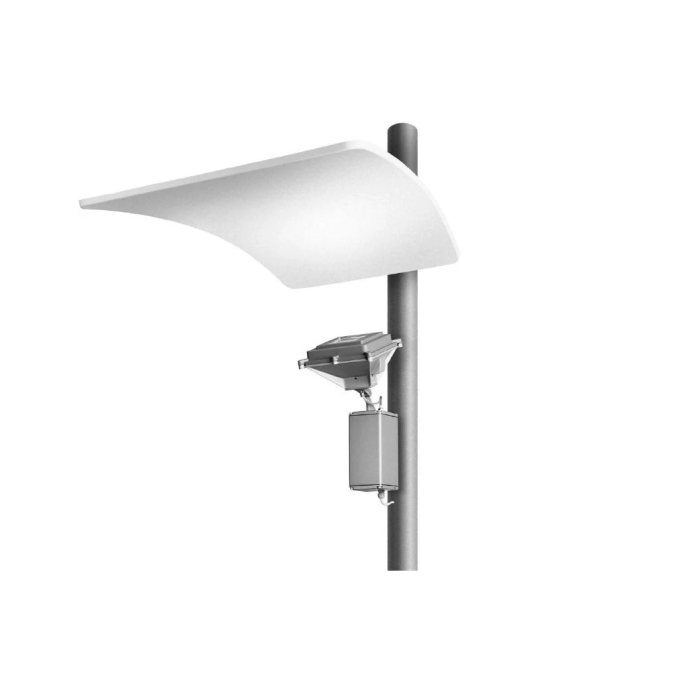

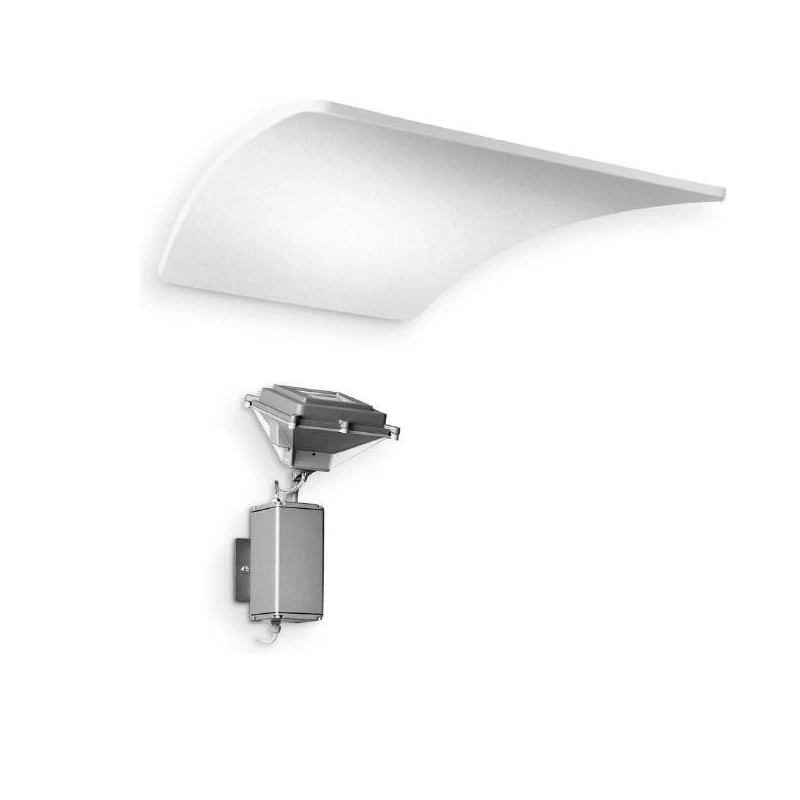

MiniNuvola , the compact and elegant indirect lighting solution, is designed to meet the needs of public and decorative lighting in squares , parks , historic centers and monuments . Thanks to its refined design and the possibility of wall installation, MiniNuvola adapts perfectly to any urban or architectural context.

Main features:

• Light source : Compatible with 150W metal halide lamps, RX7s fitting, ensuring high luminous efficiency and long life.
• Indirect lighting system : Minimizes light dispersion, with only 5% of the light flux emitted outside the reflective screen, for superior visual comfort.
• Wall mounting : Ideal for illuminating facades, entrances, monuments or urban areas where a discreet and elegant design is required.

Technical details:

• Materials :

  • Optical compartment : Made of die-cast aluminum, weather resistant and durable.
  • Reflective screen : Designed for optimal light efficiency.
  • Reactor : Anodized aluminum structure, complete with explosion-proof capacitor, reactor, igniter and quick clamps.
  • Fittings and bracket : A2 stainless steel and EN1706AC aluminium alloy painted to resist corrosion.

• Protection and stability :

  • Degree of protection IP65 (optical compartment) and IP54 (inspection door).
  • Weatherproof and designed for a maximum snow load of up to 205kg.

• Dimensions :

  • Overall height (installed): 260 mm .
  • Width: 75 mm .
  • Depth: 140 mm .

• Class and insulation :

  • Insulation class II .
  • Grade F.

Applications:

• Decorative lighting for parks, squares and historic centers.
• Urban areas : Facades of public or historic buildings, entrances, pedestrian walkways.
• Urban design projects that require high quality wall mounted lighting.

Additional Technical Specifications:

• Lamp type : Metal halide, 150W , RX7s socket.
• Power supply : 220 V.
• Series : MiniNuvola.
• Technology : Reflective optics for indirect lighting with superior efficiency.

With MiniNuvola 150W , you get a versatile and durable product, designed for refined and environmentally friendly urban lighting. The combination of high-quality materials, minimalist design and wall installation make it a perfect choice to enhance any outdoor space.
