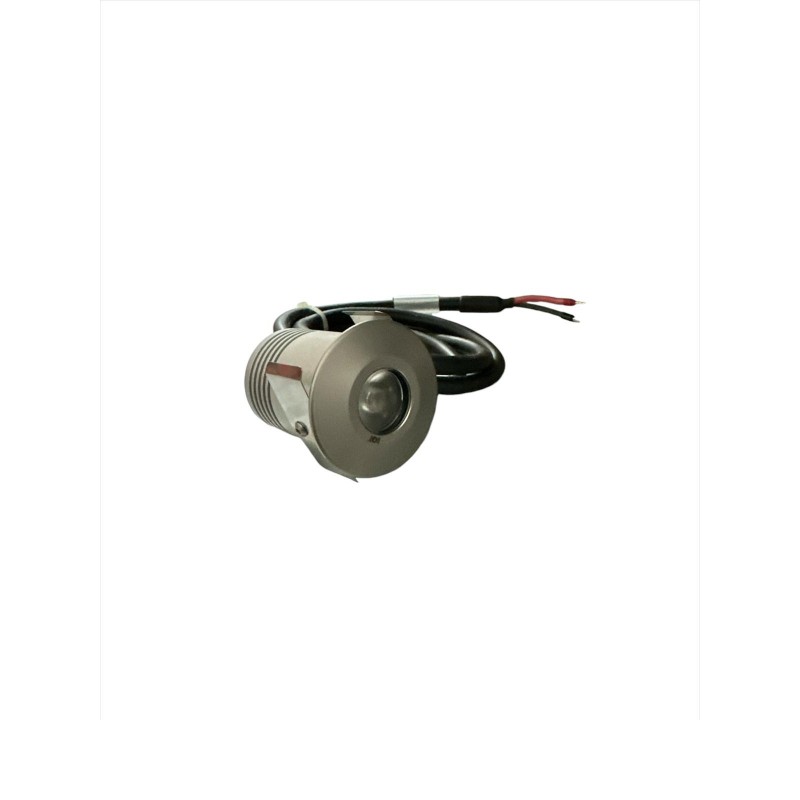

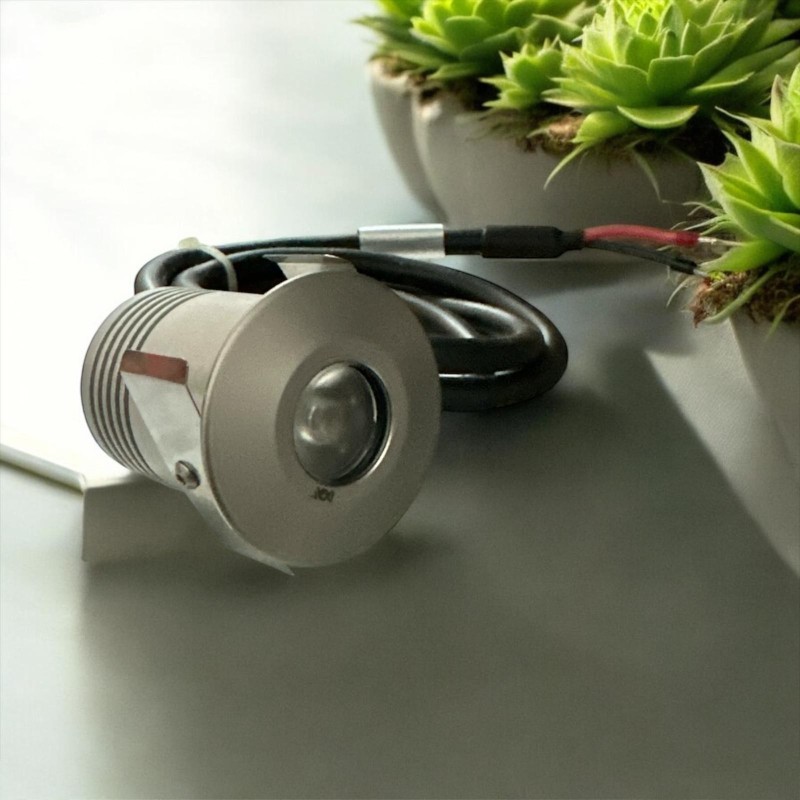

LED Recessed Floor Spotlight Driveable IP67 50 IP67 2Wx3 500mA 3EM GRI 5000K

Arco 50 IP67 2Wx3 500mA 3EM GRI 5000K

The Arco 50 is a professional LED lighting fixture, designed for technical and industrial applications where high performance and resistance are required in complex environments.

Main features:

1. Power and Efficiency:

   • Total consumption: 2W x 3 (6W total).
   • Power supply: 24VDC with a current of 500mA .
   • Uniform and efficient light emission.

2. Light Quality:

   • Color temperature: 5000K (cold white light), ideal for ensuring clear and precise lighting.
   • Available with different optics (specifications in the "Optics Legend" section):
     • VS (frosted glass): For even diffusion.
     • VT (clear glass): For maximum intensity.
     • Directional lenses: Available angles of 10°, 30°, 40°, 60° , or elliptical lens ( EL ) for specific focusing.

3. Design and Dimensions:

   • Total height: 77 mm .
   • Diameter: 50 mm .
   • Mounting hole: Ø45 mm .
   • Robust and compact body, ideal for installations in limited spaces.

4. Resistance and Reliability:

   • IP67 certification, which guarantees complete protection against dust and temporary immersion in water.
   • Structure designed to withstand harsh environmental conditions, such as humidity, vibrations or extreme temperatures.

5. Versatility:

   • Suitable for indoor and outdoor installations thanks to its IP67 protection.
   • Ideal for architectural lighting, signage, industrial machinery or exposed environment applications.

6. Color: Grey (GRI).

7. Safety and Power:

   • Power supply required by a specific constant current transformer ( 350mA or 500mA , depending on the model chosen).
   • Note: Do not connect directly to mains voltage.

Fields of application:

• Technical lighting in industrial environments.
• Signage and architectural applications.
• Lighting systems for outdoor environments or areas subject to difficult weather conditions.

Note: To ensure correct and safe installation, please carefully follow the instructions provided in the manual.
