Bright 1.0 316L - Recessed for Outdoor and Immersion - 2W 500mA 3000K Diffused Optics

Bright 1.0 316L - Recessed for Outdoor and Immersion - 2W 500mA 3000K Diffused Optics

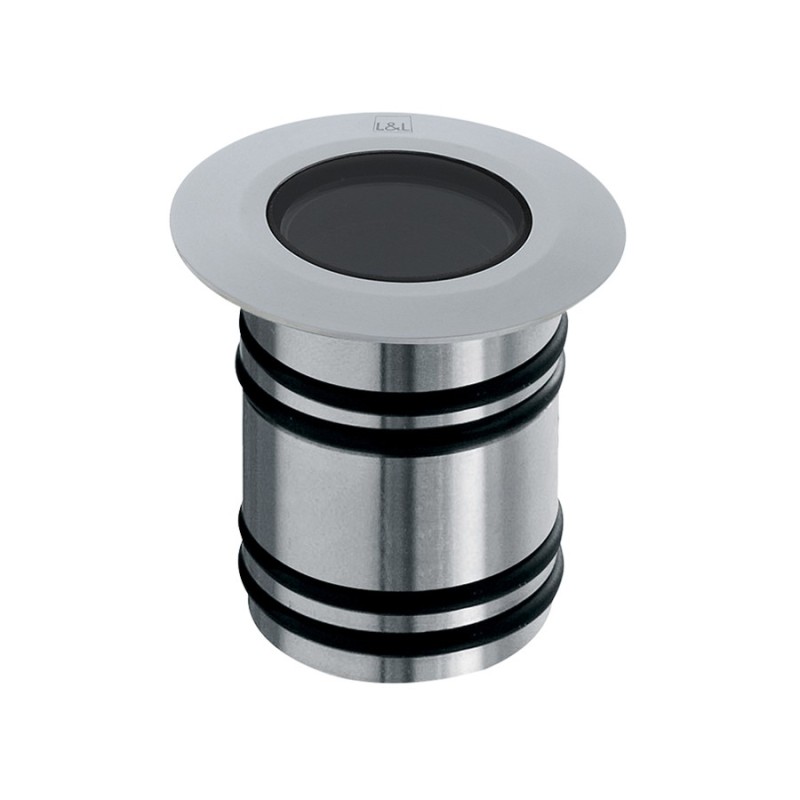

Bright 1.0 316L by L&L Luce&Light is a versatile recessed luminaire, designed for lighting outdoor areas and underwater up to a maximum depth of 10 metres. Made entirely of AISI 316L stainless steel, Bright 1.0 is ideal for wall or floor applications, in outdoor settings and exposed to challenging environmental conditions. With a warm white light of 3000K, this recessed luminaire offers elegant and long-lasting lighting.

Bright 1.0 316L Technical Data Sheet
Code: CW10125DAI

Description: Bright 1.0 is a versatile recessed luminaire, designed for outdoor applications and for immersions up to 10 meters deep. Its robust construction and the quality of the materials used make it ideal for harsh environments, ensuring a perfect watertight seal thanks to a four-gasket system. The diffused optics and the available dimming system offer lighting flexibility for different design needs.

Technical Features

Electrical Features:

• Power Consumption: Max 2W
• Power supply: Max 500mA
• Power supply: Power supply not included
• Management: Dimming available via dimmable power supply, for optimal control of light intensity
• Connection: In series

Lighting Features:

• Number and Type of LED: 1 power LED
• Average LED life: 60,000 hours L90 B10 (Ta 25°C), ensuring long operating life and reduced maintenance
• LED color: 3000K, warm white light for a cozy and refined atmosphere
• Colour Rendering Index (CRI): 80, for good colour rendering
• Binning: 2 step MacAdam, to ensure uniformity in color tone
• Optics: Diffused, optical system composed of black holder and 10 mm extra-clear tempered closing glass, resistant to shocks and scratches
• Luminous Flux at Source: 195 lm (3000K, 500mA)
• Luminous Flux Emitted: 127 lm (3000K, 500mA, 21°)

Mechanical Features:

• Dimensions: Ø35 x 52 mm
• Weight: 480 g
• Body Material: AISI 316L stainless steel body and ring, obtained by CNC machining, ensuring long life and resistance to corrosion
• Screen Material: Extra-clear tempered acid-etched glass, designed to ensure maximum transparency and resistance
• Mounting hole: Ø30 mm
• Fixing: With formwork for perfect integration into the installation surface

General Features:

• Protection Grade: IP65, IP68, ensuring high protection against dust and water, ideal for diving and outdoor installations
• Operating Temperature: From -20°C to +45°C for outdoor installations, from 0°C to +45°C for underwater installations
• Impact Resistance Rating: IK10, designed to withstand mechanical impacts and ensure long life
• Energy Consumption Class: F, compliant with EU regulation 2019/2015
• Glow Wire Resistance Test: 960°C
• Maximum Appliance Temperature: 50°C (Ta 25°C)
• Insulation Class: Class III
• Walkable: Yes, perfect for installations on external floors
• Driveway: No
• Power Cables: 5m H05RN-F 2x0.35/0.75 Ø6.3mm neoprene cable included, for easy electrical connection
• Protection Systems:
  • IPS (Intelligent Protection System): Protects against water ingress and electrical phenomena such as junction errors, polarity reversals, hotplug, ESD and surges
• Photobiological Safety: Complies with IEC TR 62778:2014, ensuring safety for eyes and skin

Available Accessories:

• WC5003: Formwork for easy installation in outdoor environments

Additional Notes:

• Casambi Management (Optional): Available on request for smart lighting control via Casambi app, allowing you to customize your lighting directly from a mobile device
• Not suitable for diving in pools with sheath

EOL (End Of Line) Test: Tested and approved through end of line tests with verification of correct operation and control of electrical absorption parameters.

Bright 1.0 316L is the ideal solution for those looking for a robust and versatile recessed fixture, perfect for outdoor or underwater applications. The quality of the materials and the high degree of protection guarantee reliable operation even in demanding conditions.
