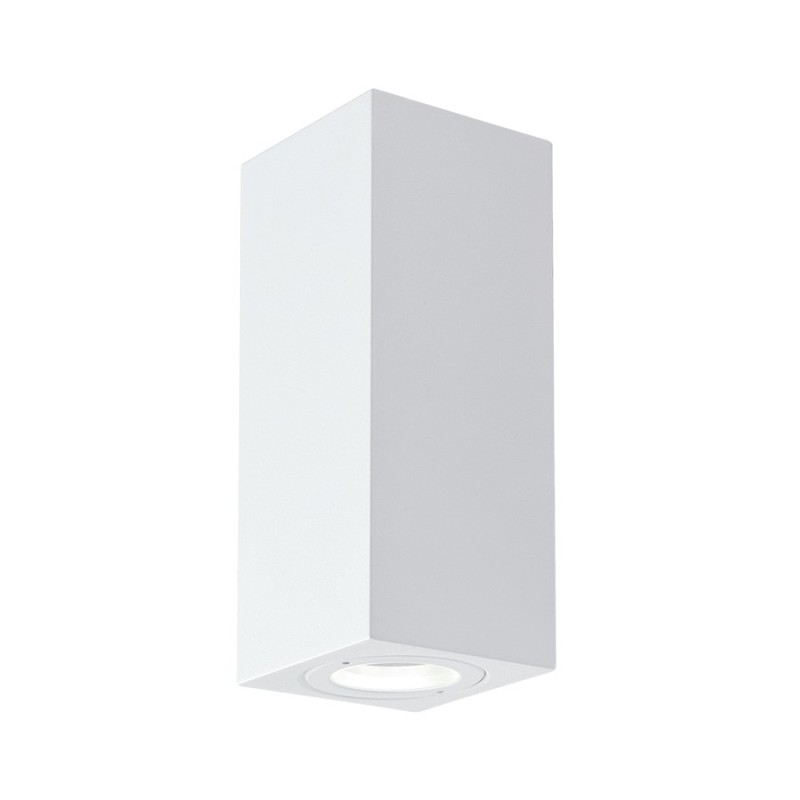

Updown 4.6 - Outdoor Wall Lamp

Updown 4.6 - Outdoor Wall Lamp (Code: UD46009LME)

The Updown 4.6 is a double emission outdoor wall light, ideal for illuminating outdoor spaces with an elegant and functional light. Designed for installation on walls, this fixture offers an upward and downward light emission with different optics, and is built to withstand adverse weather conditions thanks to its robustness and IP65 protection rating.

Main features :

• Power consumption : 6W
• Power supply : 24Vdc (power supply not included).
• Luminous flux :
  • Source : 472 lm (3000K)
  • Emitted : 364 lm (3000K, 22°)
• LED type : 6 power LEDs with a guaranteed lifespan of 50,000 hours (L90 B10 at 25°C).
• LED color temperature : 4000K (natural light), ideal for outdoor spaces where clear and bright light is required.
• Optics :
  • UP : 54° for a wider diffusion of light upwards.
  • DOWN : 22° for a more concentrated light emission downwards.
• Color Rendering Index (CRI) : 80 , ensuring good color reproduction.

Materials and Finishes :

• Body : Made of anodized aluminum , which offers corrosion resistance and durability.
• Finish : White RAL 9003 , with other RAL finishes available on request.
• Screen : In extra-clear transparent glass , for perfect transparency and uniformity of lighting.
• Dimensions : 49x49x130 mm
• Weight : 700 g

General characteristics :

• Degree of protection : IP65 , ideal for protecting the device from dust and water jets, making it suitable for outdoor installations.
• Resistance level : IK08 , which ensures good protection against impacts.
• Operating temperature : -20°C to +45°C .
• Insulation class : Class III .
• Energy consumption class : F (in accordance with EU regulation 2019/2015).
• Glow wire test : 960°C , for safe thermal resistance.

Management and protection systems :

• Casambi Management : Optional, for smart control via dedicated app.
• Power cables : Including 0.30 m PVC cable FROR 2x0.35 Ø3.5 mm.

Accessories and Options :

• Spacer : Available on request in RAL finish for custom applications.

The Updown 4.6 is an ideal choice for illuminating facades, entrances or other outdoor areas with dual-emission lighting, perfect for creating a refined and well-lit environment. Thanks to its robust construction and elegant design, it offers an efficient and durable solution for outdoor lighting.
