Weidmüller H0,75/14W

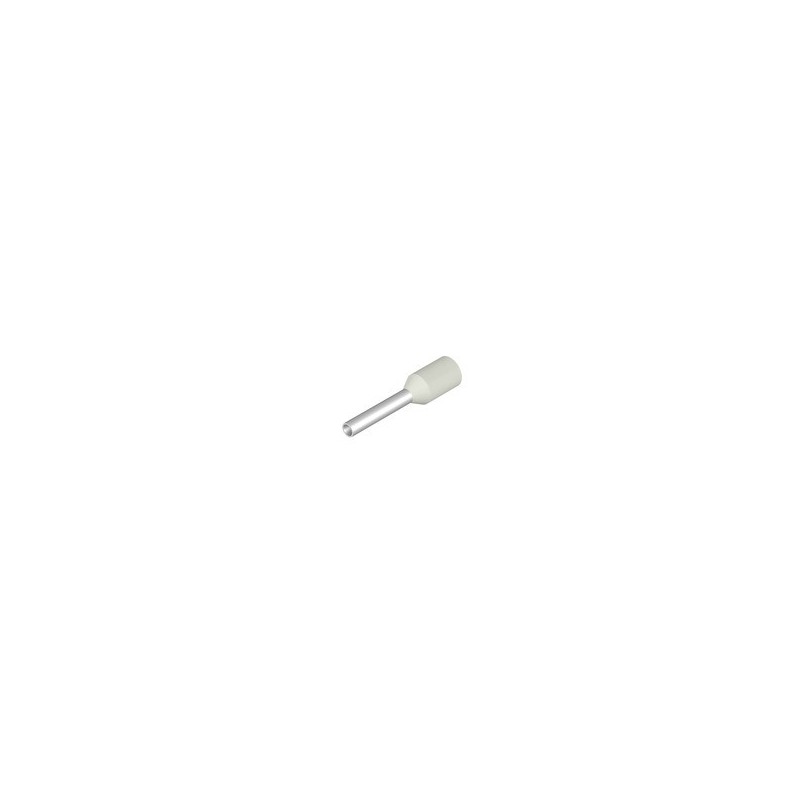

The Weidmüller H0.75/14 W BD GSP is a ferrule designed for conductors with a nominal cross-section of 0.75 mm² . This ferrule has a white plastic collar and is supplied in strips on a reel, making it easy to install in industrial and professional applications.

Main features:

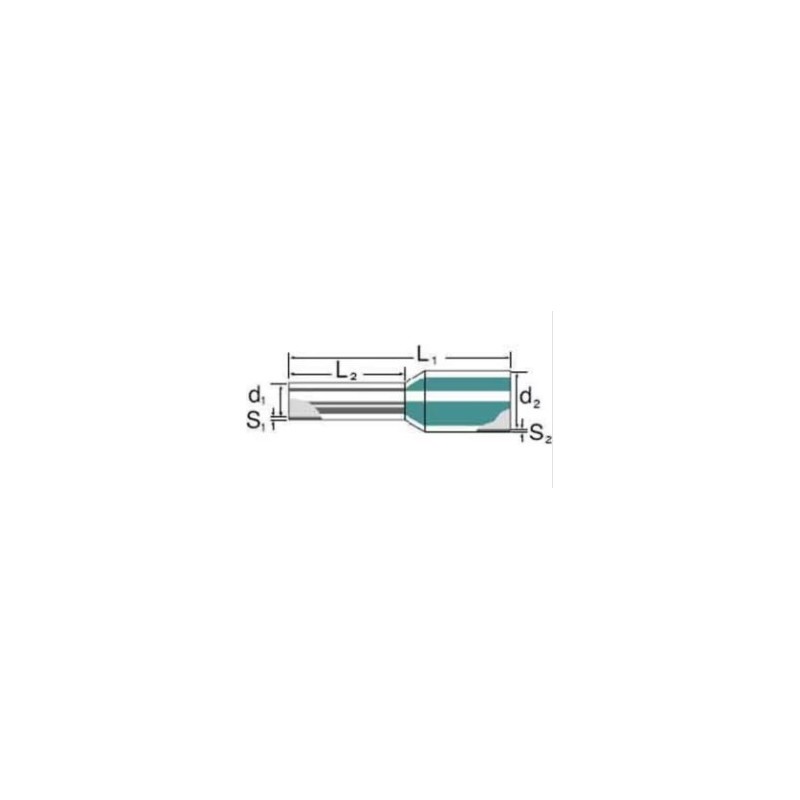

• Nominal conductor cross-section: 0.75 mm²
• Total length (L1): 14 mm
• Contact surface length (L2): 8 mm
• Collar diameter (D2): 2.8 mm
• Contact surface diameter (D1): 1.2 mm
• Thickness of metal compass (S1): 0.15 mm
• Thickness of plastic collar (S2): 0.25 mm
• Recommended stripping length: 10 mm
• Collar Color: White
• Packaging: Strips on reel of 5,000 pieces

This cable lug is ideal for ensuring safe and reliable electrical connections, reducing the risk of short circuits and improving the quality of cable terminations.
