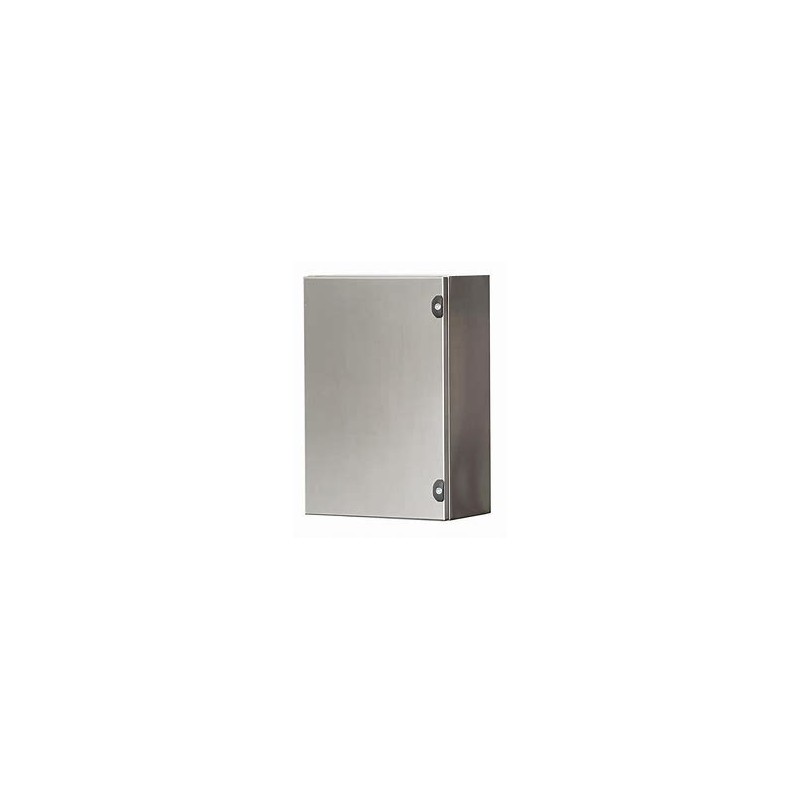

CEB SRL - CBSPDX10.60.30 Stainless Steel Enclosure 1000x600x300 with Blind Door

The CEB SRL - CBSPDX10.60.30 is a robust and reliable stainless steel electrical enclosure, designed to protect electrical and mechanical components in industrial and commercial environments. Made of AISI 304 stainless steel, this enclosure offers excellent protection against atmospheric agents, dust, water and chemicals. The blind door and polyurethane gaskets guarantee an IP 66 protection degree, making this enclosure ideal for both internal and external applications.

Main features:

• High quality material: Body and door made of AISI 304 scotch brite satin stainless steel with a thickness of 10-12/10, press-bent and welded to guarantee maximum resistance and durability over time.
• Sturdy Inner Plate: Made of 15-20/10 Sendzimir sheet metal, it provides stable support for installing equipment and components.
• Polyurethane gaskets: Applied by continuous casting, they offer an exceptional seal against dust, water and other impurities, ensuring maximum protection for internal components.
• Reversible hinges: Allow the door to open up to 110°, facilitating access and maintenance of internal devices.
• Double-bit fingerprint lock: Ensures safe and stable door closing, protecting the contents of the box from unauthorized access.
• IP 66 protection rating: Total protection against dust and powerful jets of water, making the box perfect for harsh environments.
• Certifications: Complies with UL NEMA TYPE 4X and IK 10 standards, ensuring high mechanical resistance against impacts and adverse environmental conditions.

Technical specifications:

• Dimensions: 1000mm x 600mm x 300mm
• Material: AISI 304 stainless steel, satin finish, scotch brite (thickness 10-12/10)
• Inner plate thickness: 15-20/10 Sendzimir
• Degree of protection: IP 66, UL NEMA TYPE 4X, IK 10
• Door opening: 110°
• Lock: Double lug
• Seals: Polyurethane applied in continuous casting

Main applications:

• Industrial electrical systems
• Environments with exposure to chemicals or dust
• Industrial automation and control systems
• Outdoor installations in adverse weather conditions

Product Benefits:

1. Exceptional Durability: AISI 304 stainless steel ensures long life and corrosion resistance, making it ideal for aggressive environments.
2. High Degree of Protection: IP 66 and NEMA 4X certifications ensure that internal components are safe from dust, water and mechanical impacts.
3. Easy Accessibility: The 110° reversible hinge allows easy access for component installation and maintenance.
4. Enhanced Security: Double-bit lock provides secure locking against unauthorized access.
