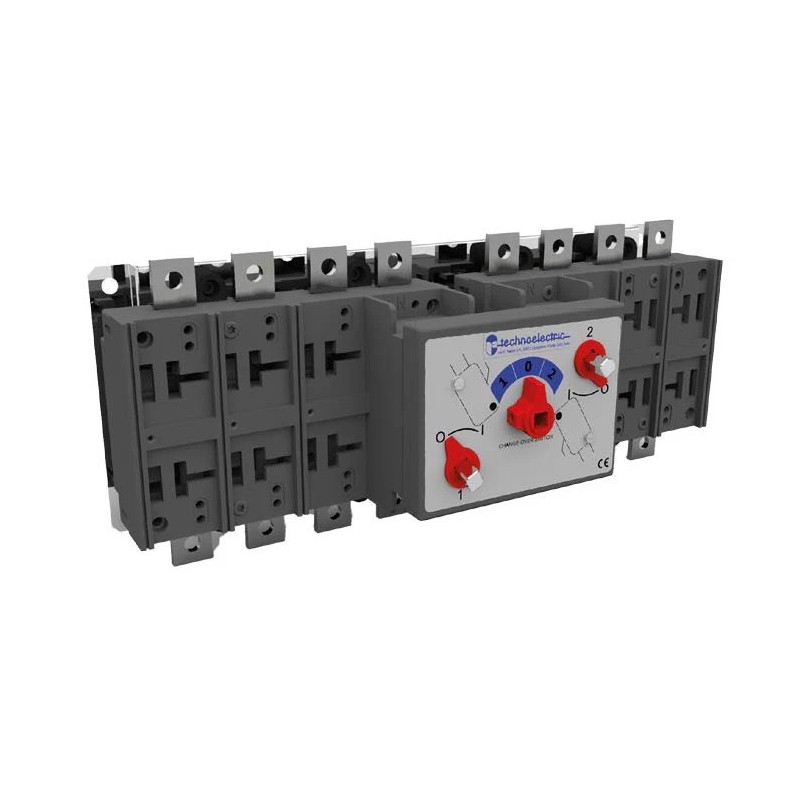

Technoelectric Srl - Teh120133 Horizontal Switch With Handle Blo

GENERAL CHARACTERISTICS
3 positions IO-II
zero-free version with contact overlapping 1, 1+II, II (overlapping) up to 3150A.
Interlocked switch disconnectors in overlapping or horizontal position
Direct visibility, through windows, of fixed and moving contacts
Independent quick-release maneuvers
Double interruption for each pole
High breaking capacity (AC-23A IEC 60947-3)
High mechanical and electrical durability
Suitable for use in tropical climates
Wide range of accessories
Front rotary control by means of:
Double-insulated external handle with door lock device in positions I and II
Protection class IP65.
Lockability up to 3 padlocks in O position
Possibility of execution for by-pass up to 1250A 35kA Possibility of special executions of 6-8 pole switches
