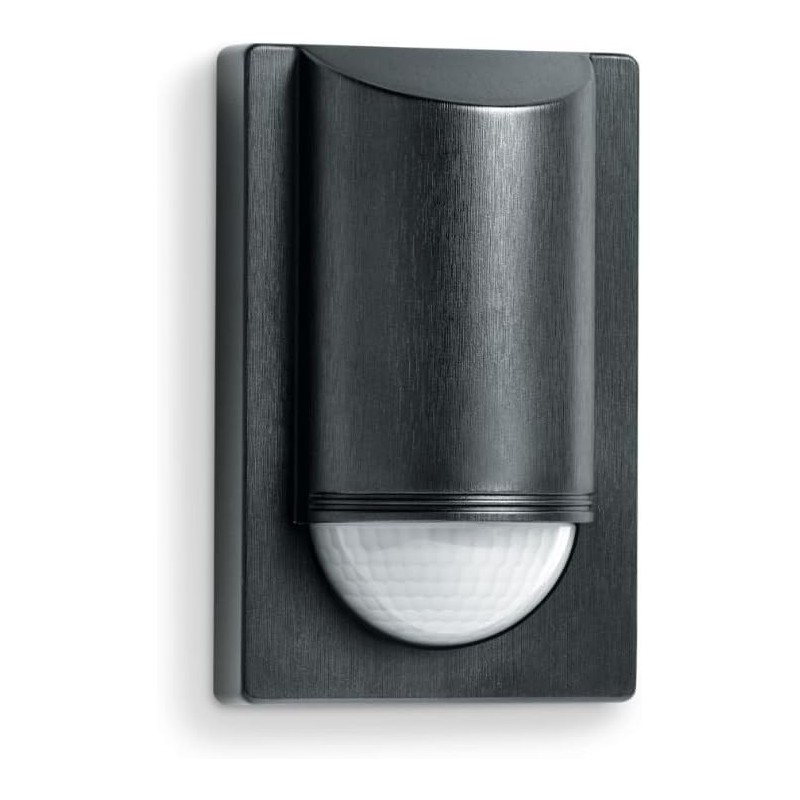

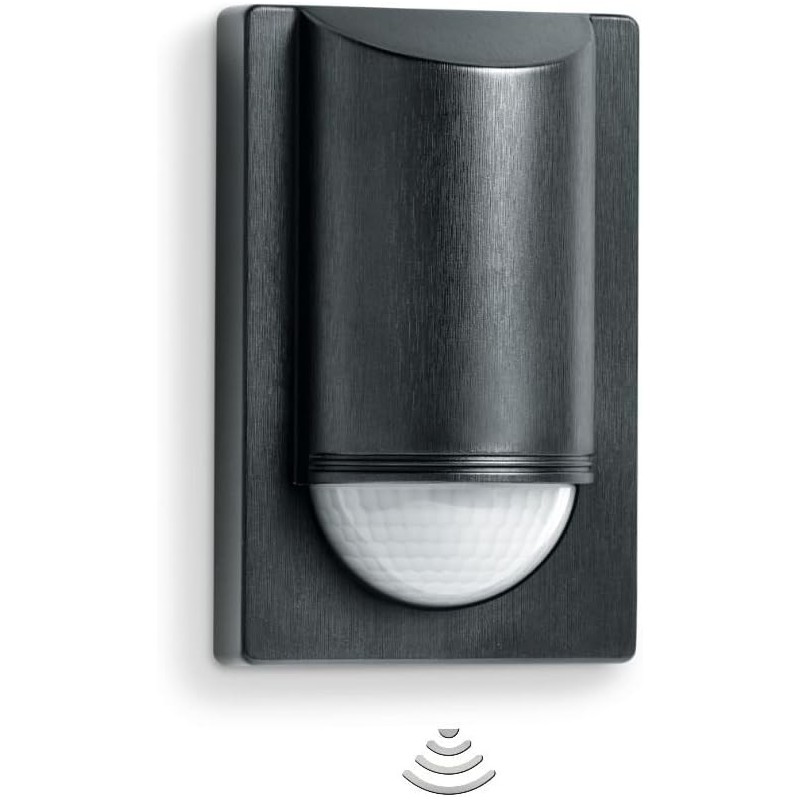

Steinel 603717 - Infrared Motion Detector, Black

Optimize the safety and energy efficiency of your environment with the Steinel 603717 motion detector , a high-performance device designed to control lighting based on detected motion. Equipped with advanced infrared technology, this sensor is ideal for indoor and outdoor environments, thanks to its IP54 protection against dust and splashes of water. It is perfect for installation in residential, commercial or industrial areas, where intelligent management of lights is required.

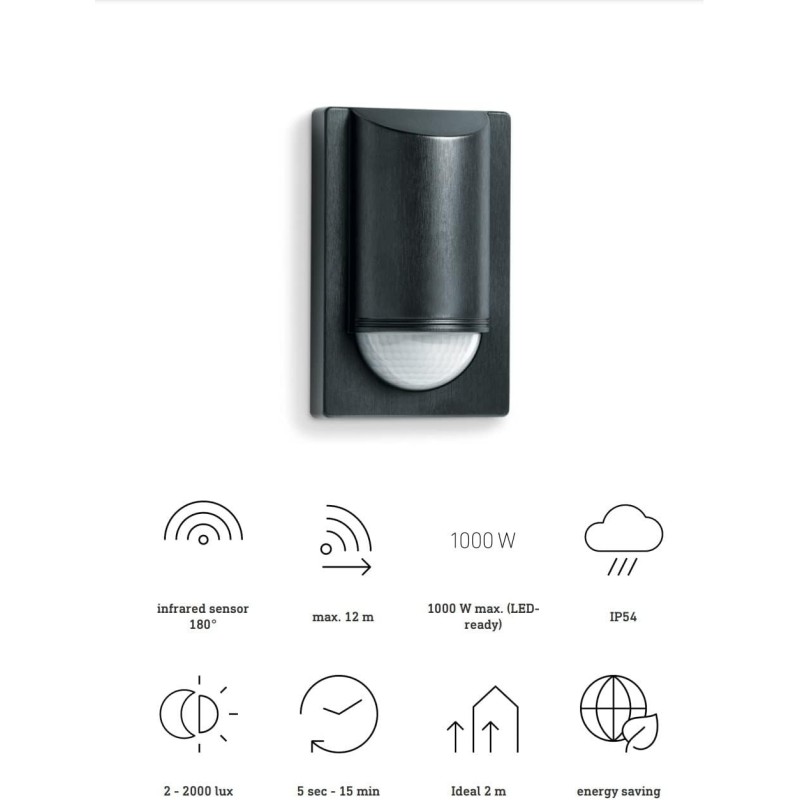

Technical specifications :

• Item code : 603717

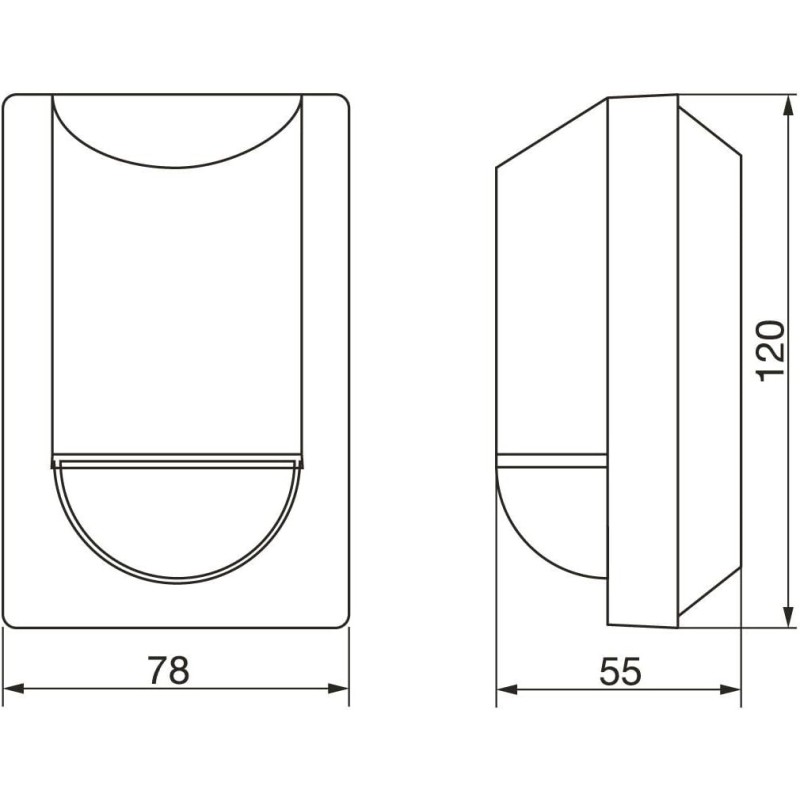

• Dimensions : 7.8 x 5.5 x 12 cm
• Weight : 169 g
• Material : Durable plastic
• Color : Black
• Power supply : Power cable (240V)
• Maximum supported power : 1000W
• IP rating : IP54, dustproof and splash-proof from all directions
• Mounting : Wall mounted, with the possibility of surface or hidden wiring

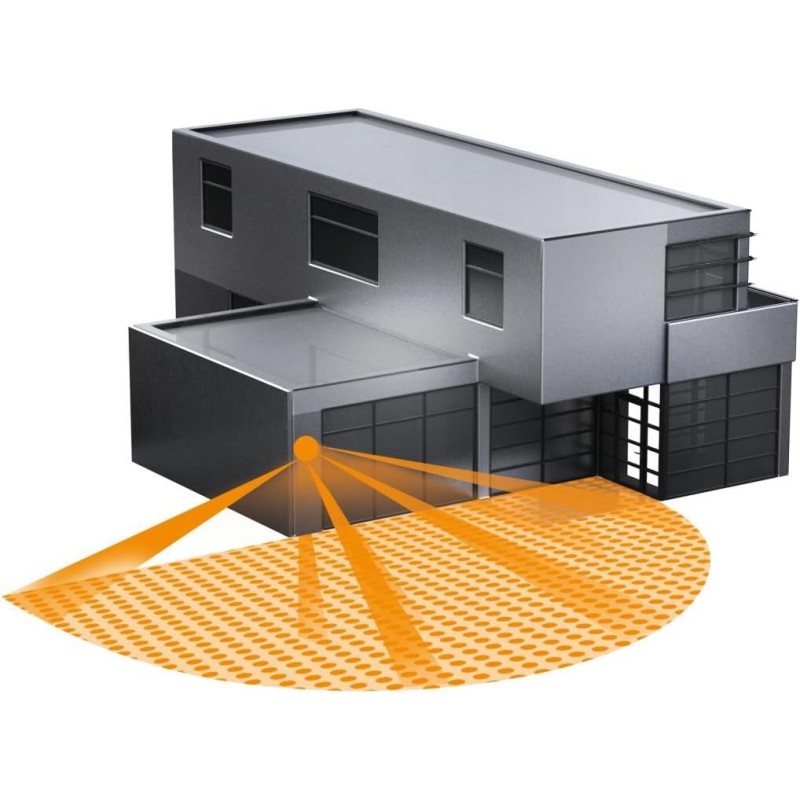

• Sensor range : Adjustable up to 12 meters
• Detection angle : 200 m² (with two built-in infrared sensors)
• Adjustable ignition time : From 10 seconds to 15 minutes
• Adjustable twilight threshold : From 2 to 2000 lux
• Included components : Motion detector, instructions, mounting material

Main features :

• Advanced Infrared Technology : The device is equipped with highly sensitive sensors that accurately detect movements, ensuring that the lighting is activated only when necessary, thus contributing to energy saving.
• Adjustable Range : Customize the sensor's detection distance between 5 and 12 meters by tilting the multi-lens to suit your environment.
• Time and Light Setting : With the rotary controls, you can adjust the light's on time and sensitivity to ambient light, making this device extremely flexible for environments with different lighting conditions.
• Easy Installation : Spacious wiring compartment allows for easy and tidy installation, suitable for both surface and hidden wiring.
• Energy efficiency and safety : The Steinel 603717 motion detector helps reduce energy waste by turning on lights only when needed and increases safety by constantly monitoring the coverage area.

Applications :

This motion sensor is ideal for use in entryways, garages, outdoor areas, hallways, and commercial or residential environments where lighting automation can improve security and reduce energy consumption.

Warranty : The product is covered by the legal warranty and the 30-day right of withdrawal.

Frequently Asked Questions :

• Is it suitable for outdoor use? Yes, thanks to its IP54 protection rating, the detector is resistant to atmospheric agents such as dust and splashes of water, making it perfect for outdoor use.

• Can I adjust the range and sensitivity of the detector? Yes, the sensor range can be adjusted up to 12 meters and the ambient light sensitivity from 2 to 2000 lux.
