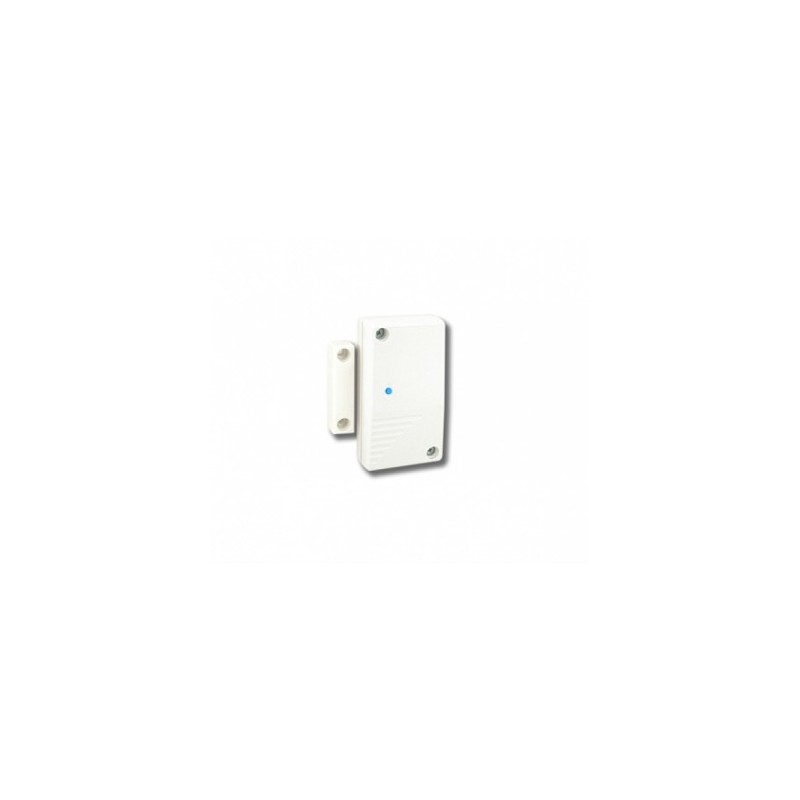

2-Channel Radio Transmitter Module for Focus and GE - Indoor Perimeter with Integrated Magnetic Contact

2-Channel Radio Transmitter Module for Focus and GE - Indoor Perimeter with Integrated Magnetic Contact

The 2-channel radio transmitter module is the ideal solution for perimeter protection of doors, windows and roller shutters, designed for professional security systems. Compatible with the GENIO, RIVERRF, RIVERRFPLUS, HALLEY, BATRF and RX8CH series control units, it guarantees high performance and maximum reliability in signal transmission.

Main features:

✅ Dual radio channel separately encoded
✅ Integrated magnetic contact for discreet and effective protection of openings
✅ 2 NC terminal inputs :

• 1st input dedicated to the connection of wired magnetic contacts

• 2nd input with analysis circuit for roller shutter sensors or configurable as second NC input

✅ Operating range up to 160 meters in open air , also ideal for large environments
✅ Independent power supply via 3.6V lithium battery mod. B36LR61L (included in the package)
✅ Low consumption : only 6.5 µA in sleep mode and 14.5 mA during transmission
✅ Radio compatibility with the above-mentioned control units, for perfect integration into the existing system

Technical specifications:

• Transmitter dimensions : 77 x 40 x 26 mm

• Magnet dimensions : 51 x 9 x 11 mm

• Weight : 58 g

• Certifications : ETSI 300-220, ETSI 301 489, EN50130-4, EN61000-6-3, EN60950-1, EN50131-5-3, EN50131-2-6

• Conformity with European Directives : 2004/108/EC, 2006/95/EC

Ideal for:

✔ Protection of window frames
✔ Indoor installations
✔ Professional wireless security systems

✅ Easy to install
✅ High reliability
✅ Maximum compatibility with professional security systems
